Description

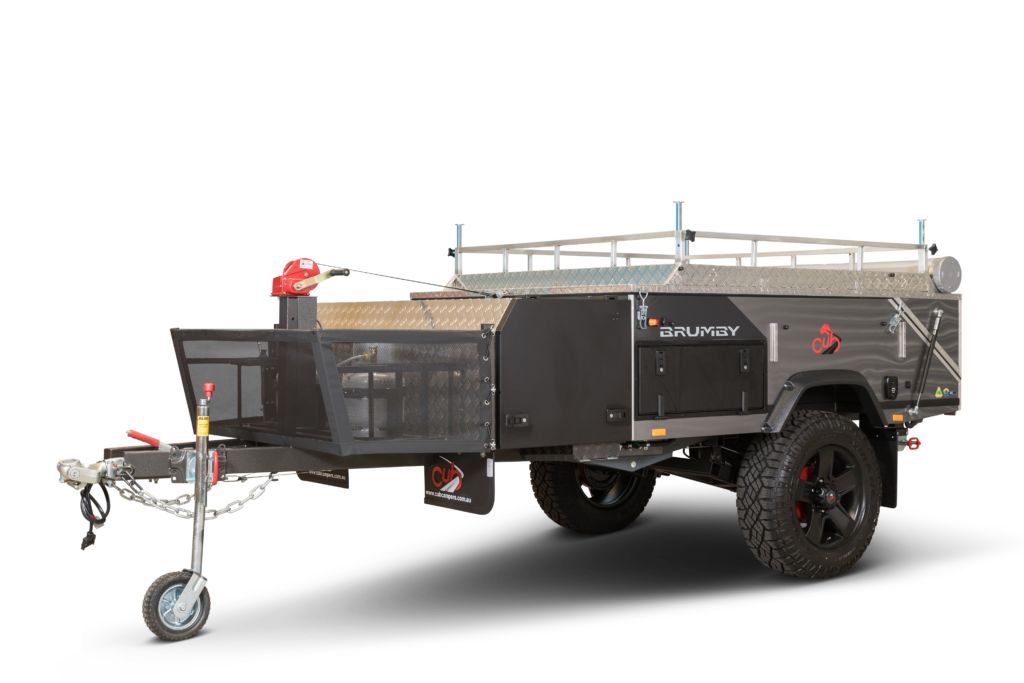

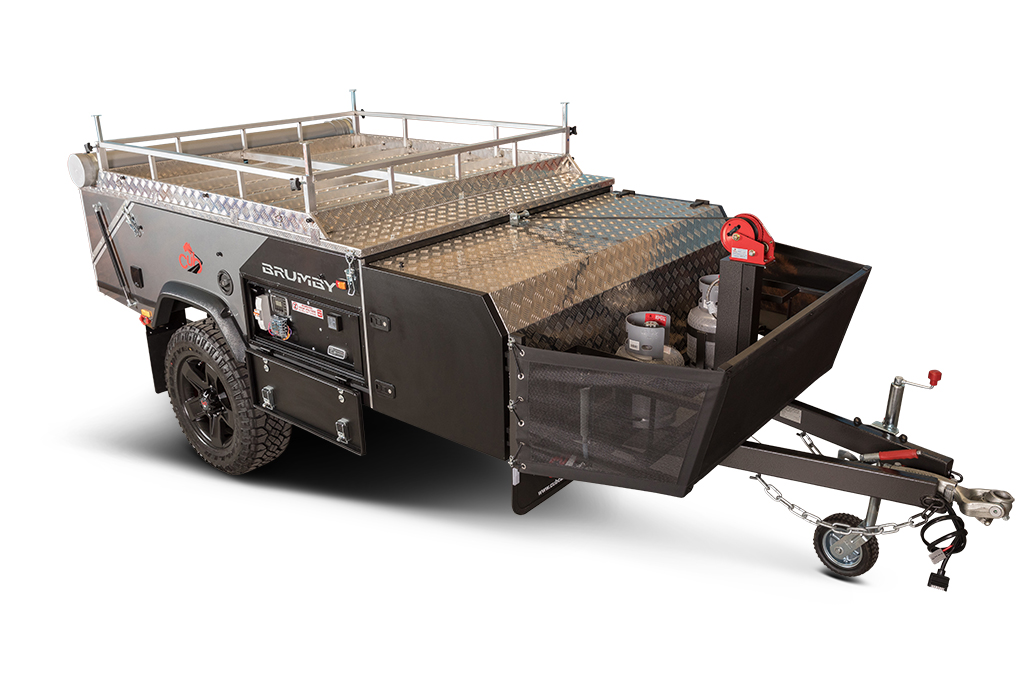

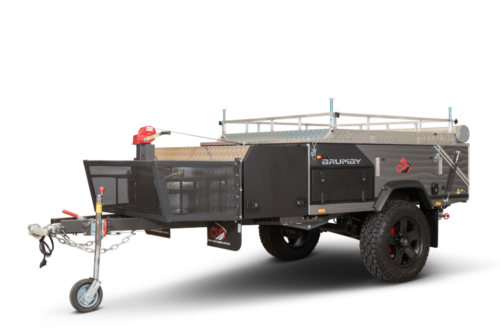

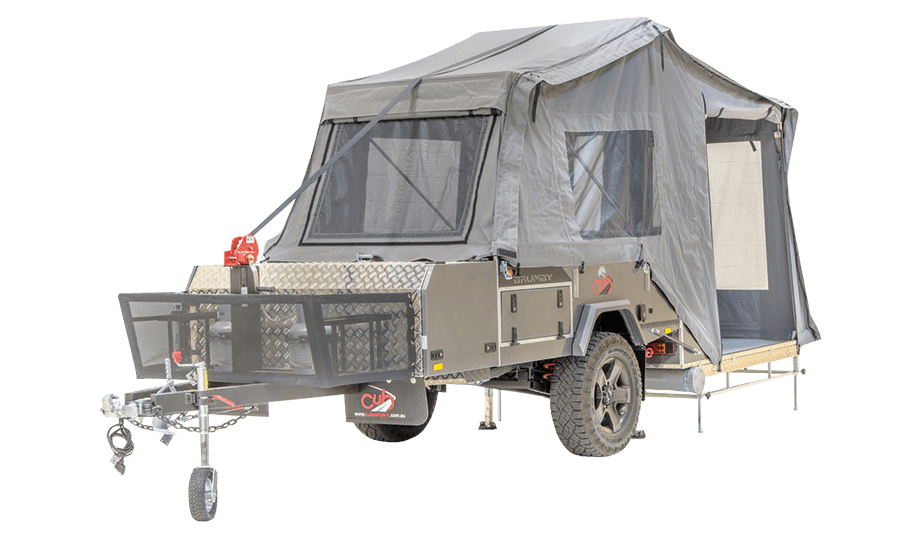

CUB BRUMBY – THE ICONIC CAMPER FOR SERIOUS OFF-ROADING
This is the camper Cub is known for – with good
reason. It is built to cope with outback conditions; with a rugged construction and compact body, it can go places others can’t.
Also comes with a 5-year warranty on the canvas, independent suspension and chassis. The hard floor keeps you high and dry wherever your Brumby takes you, and this model is packed with premium features.
There’s a 2 burner Smev stove and stainless steel sink, LED bedside lighting, solar input, two 4kg gas bottles, two 20L jerry can holders, 80L water tank, loads of power inclusions and more!
KEY FEATURES
- 4kg Gas Bottle & Holder x 2
- 10” Electric Brakes
- 100% Australian-made Tent using Wax Converters Dynaproof Canvas
- 100Ah Lithium Battery (3 Year Warranty)
- 265/65R17 Goodyear Duratrac on 17″ 6 Stud Alloy Wheels
- Independent Suspension

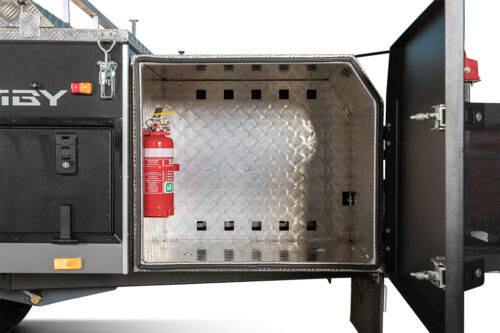

- Large Fridge Box & Slide
- Light to Tow
- Quick & Easy to Set Up (The Ezy-wind silent winch comes as standard)
- Rear Recovery Points x 2
- Under-bed Storage
- Night Sky Colorbond Panels
Build your own custom CUB
CALL US TODAY: 03 8727 6100
Standard Features & Specifications:
BODY SPECS

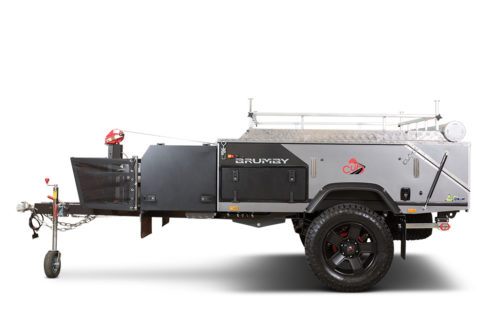

- Body Length 2.23M
- Body Width 1.70M
- Towing Height 1.62M
- Towing Length 4.36M
- Open Length (including drawbar) 6.59M
- Tare 940kg ‡
- Ball Weight 142kg ‡
- ATM 1400kg
- Colour Night Sky
BRAKES & WHEELS
- AL-KO Square Axle: 50mm
- Brakes: 10” Electric

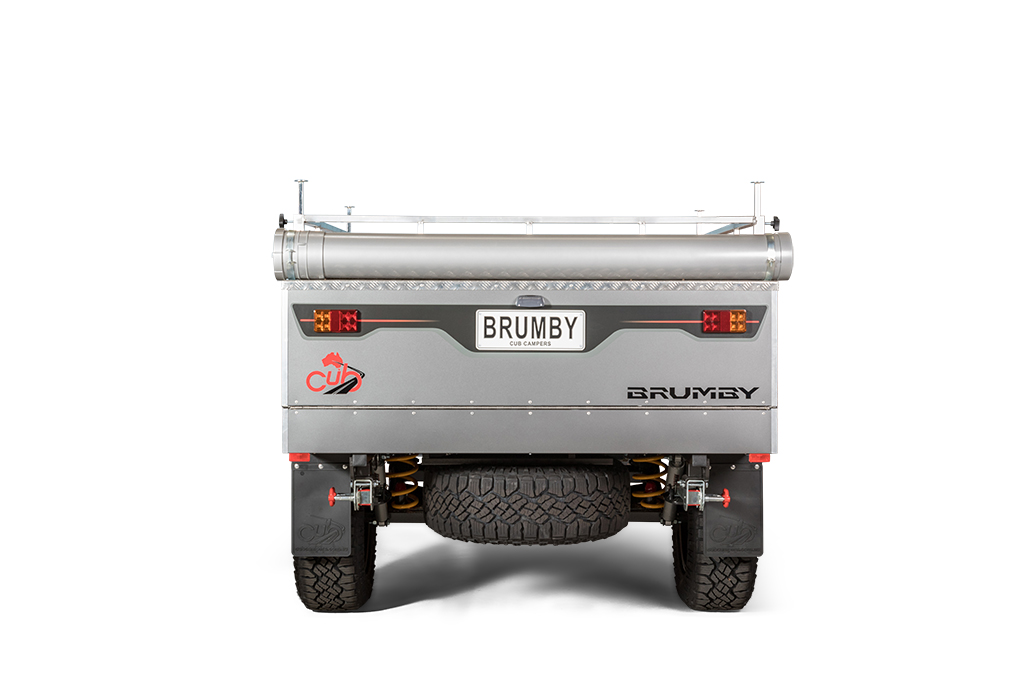

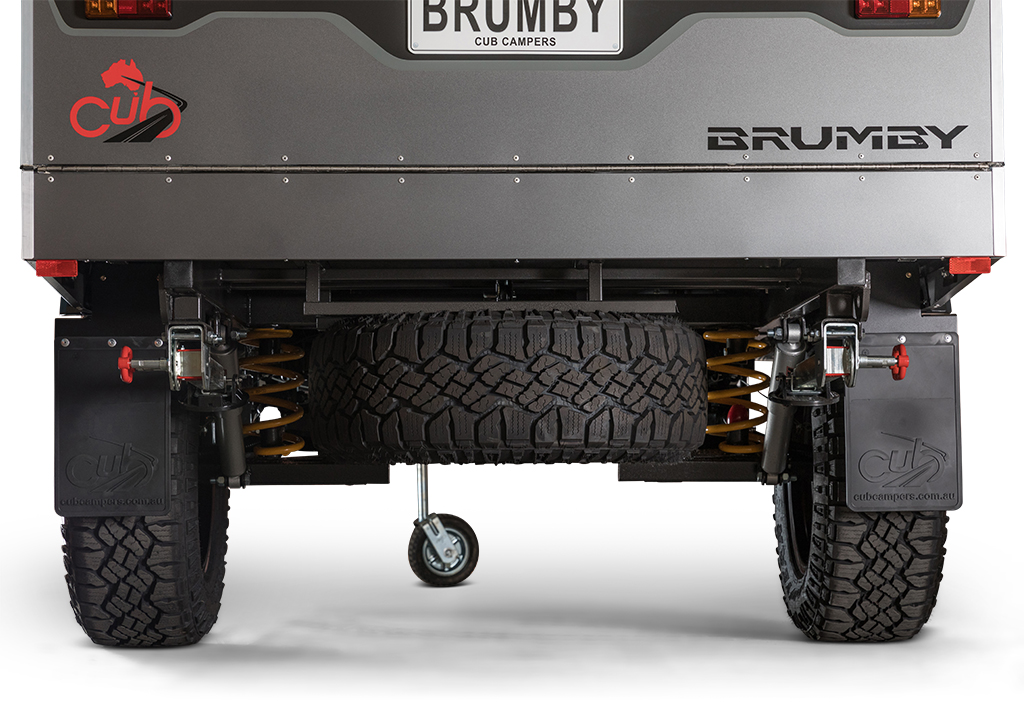

- Spare Wheel: Rear Wind Up (Steel)

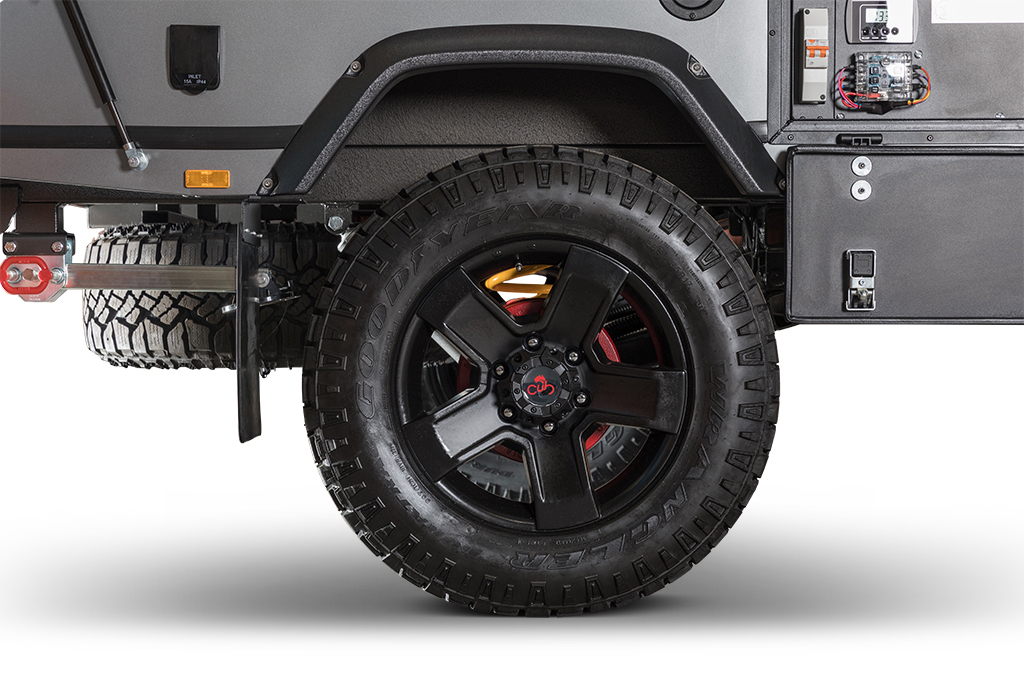

- Tyres: 265/65R17 Goodyear Duratrac
- Wheel Type: 17 x 8 Black Alloy (6/139.7 PCD)

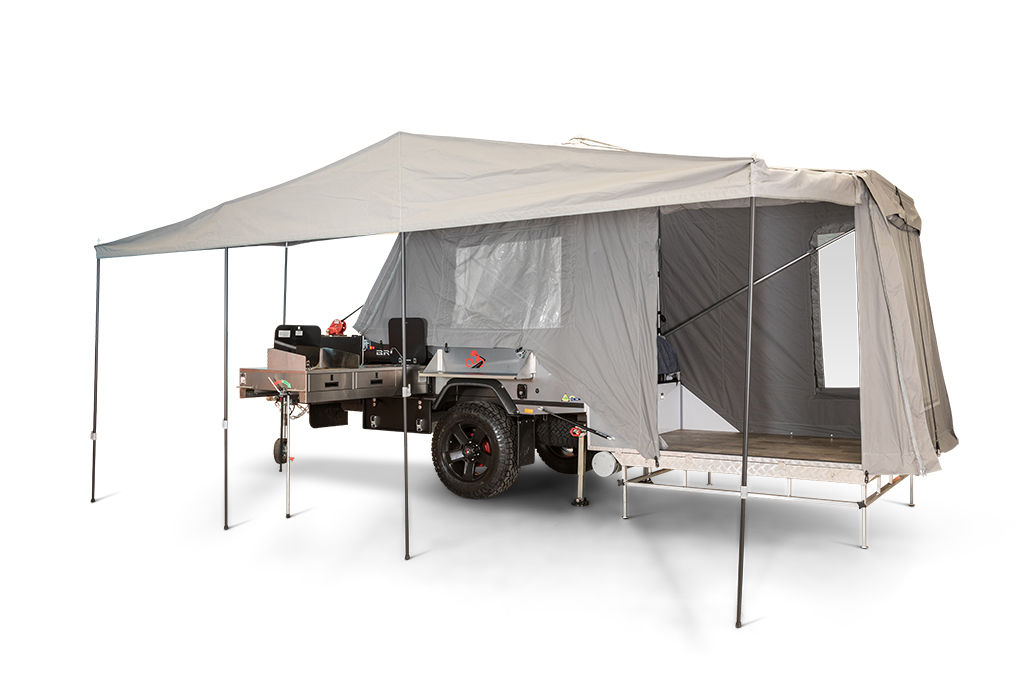

CANVAS
- 100% Australian Made Tent Using Wax Converters Dynaproof Canvas: Grey
- Aluminium Awning Poles: Standard
- Bedside Curtains: Standard

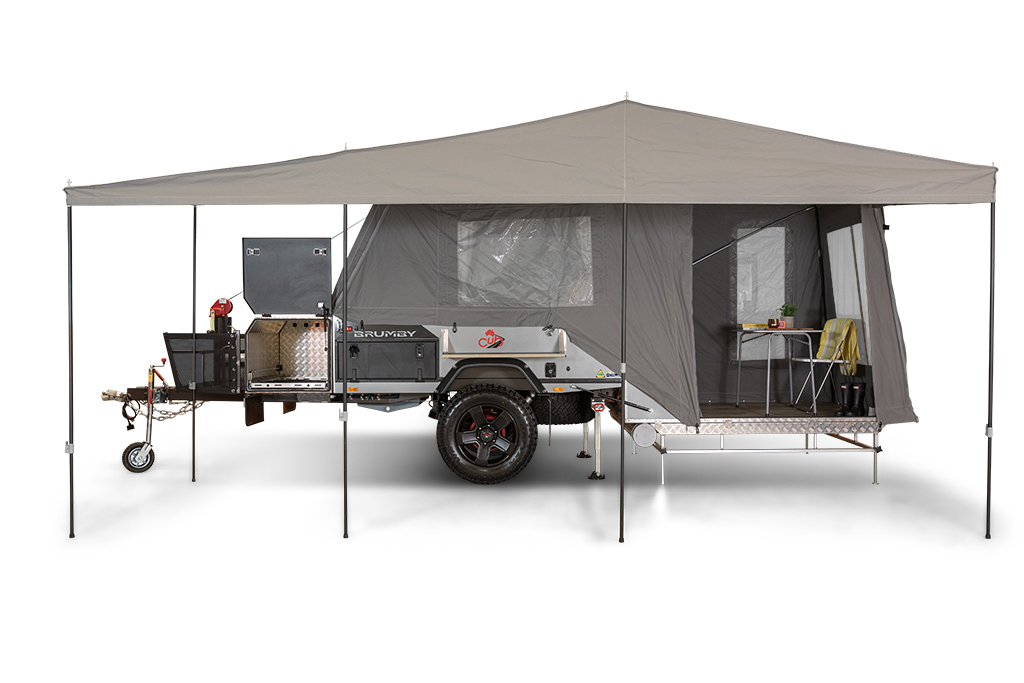

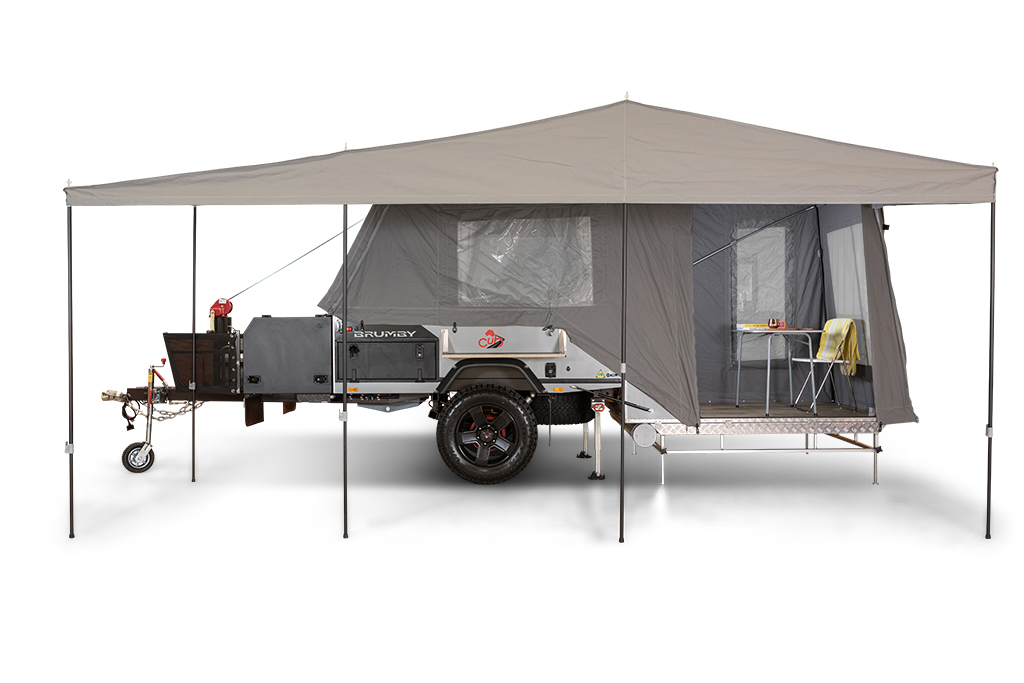

- Deluxe Awning: Standard
- Internal Front Canvas Window & Zipper: Standard
- Bed Side Canvas Window Flaps & Midge-Proof Fly Screen: Standard

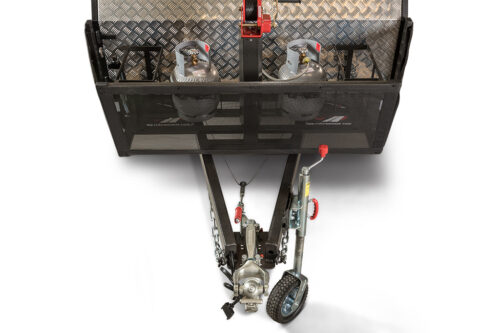

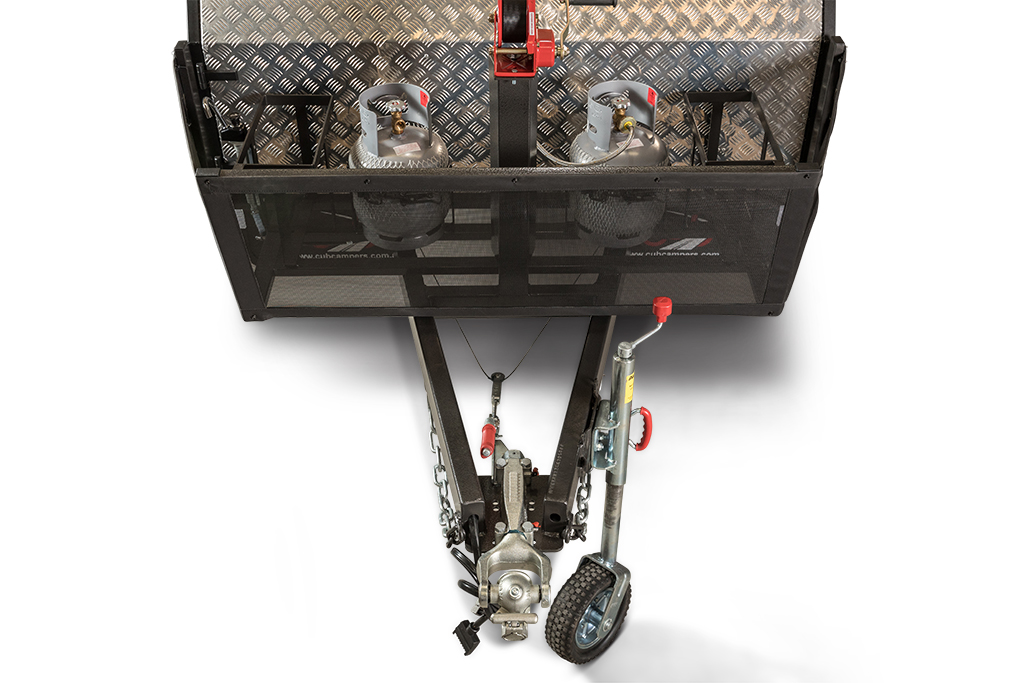

DRAWBAR

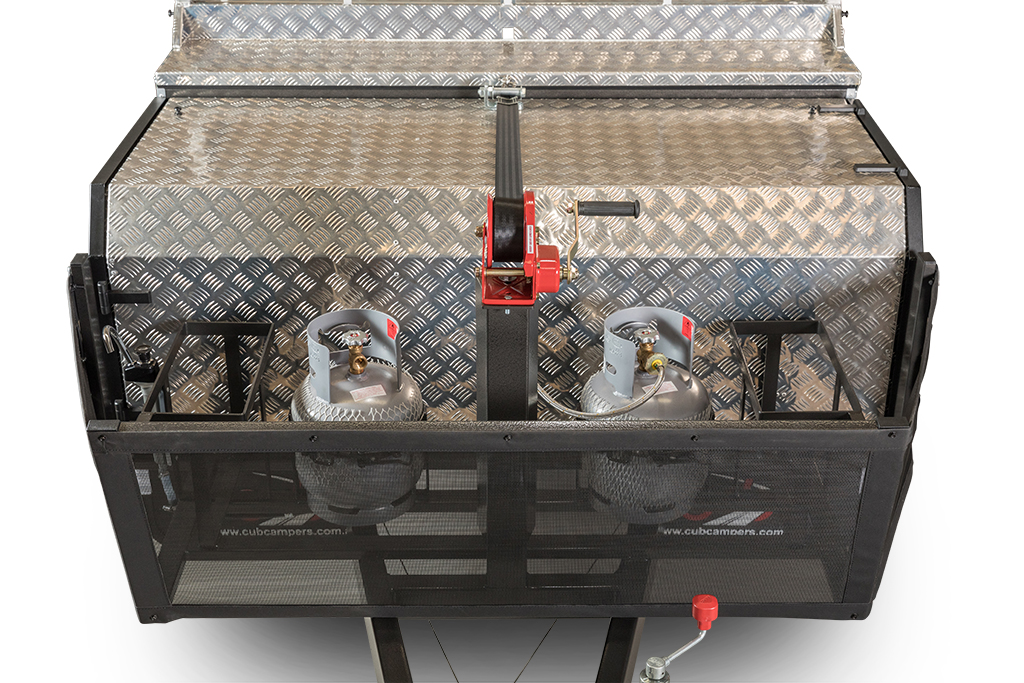

- 4kg Gas Bottle & Holder: 2
- Additional Clamp for AL-KO Jockey Wheel: Standard

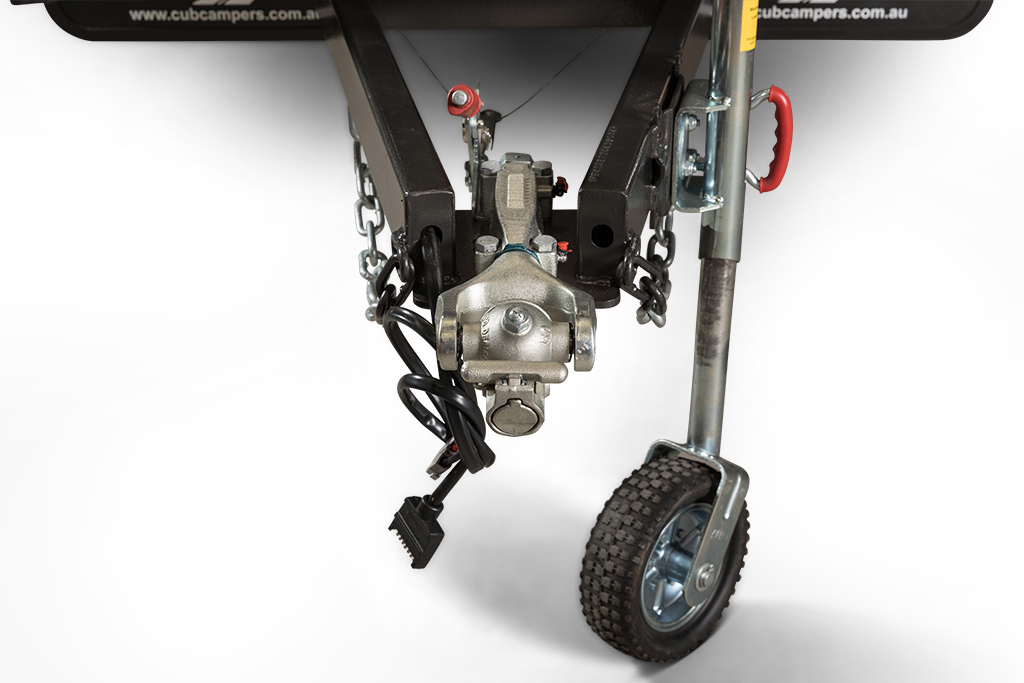

- AL-KO Ball Hitch: 50mm Off Road
- AL-KO Jockey Wheel: 250mm
- Drawbar: 100 x 50 x 3.0mm
- Fridge Box and Slide: Standard
- Fridge Box Size: W=560mm L=930mm H=515mm
- Galvanised Steel Stoneguard: Standard
- Jerry Can Holder: 2

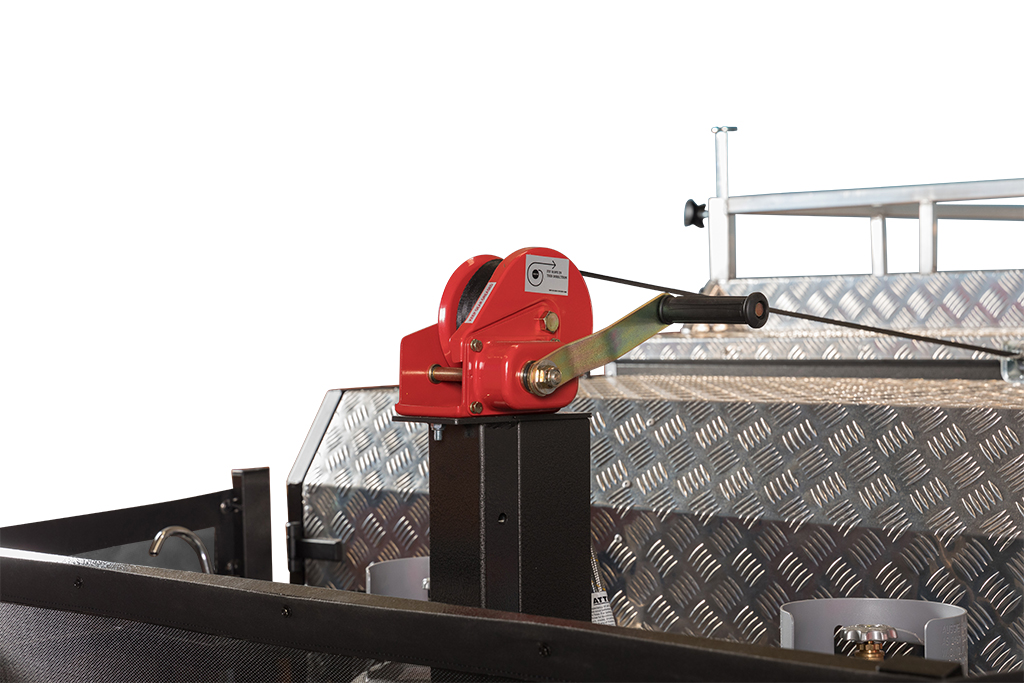

- Silent Winch: Standard
- Stonestopper Mud Flaps: Standard
WATER
- 12V Pump: 10 L/min
- Hand Pump on Drawbar: Standard
- Locking Water Filler: Standard
- Water Gauge: Standard
- Water Tank: 80L

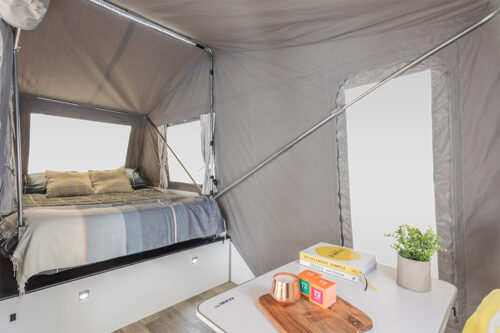

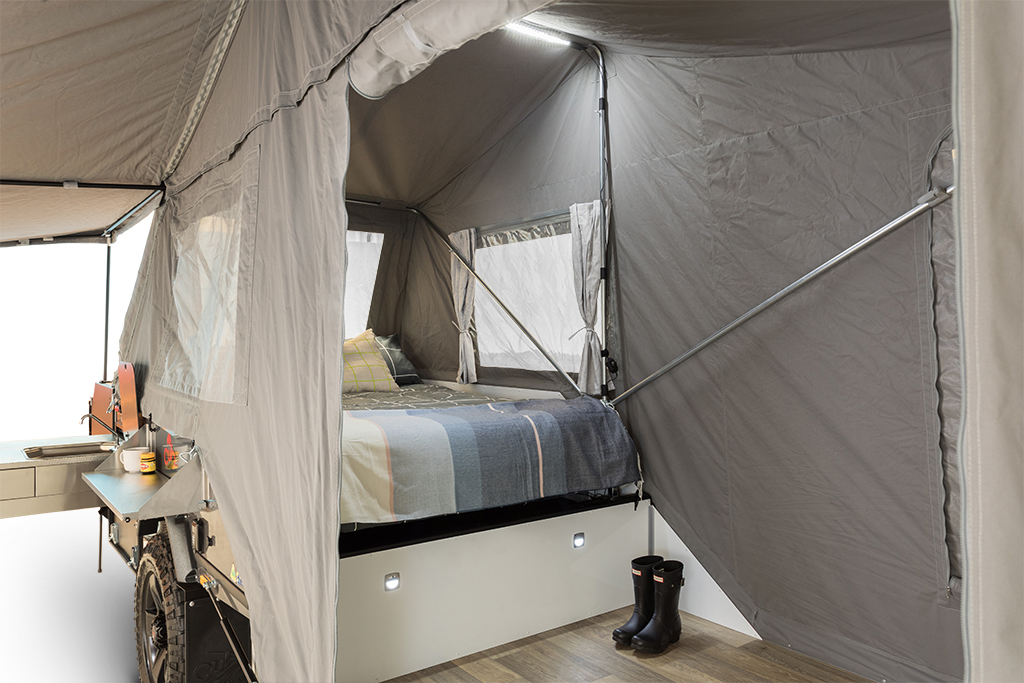

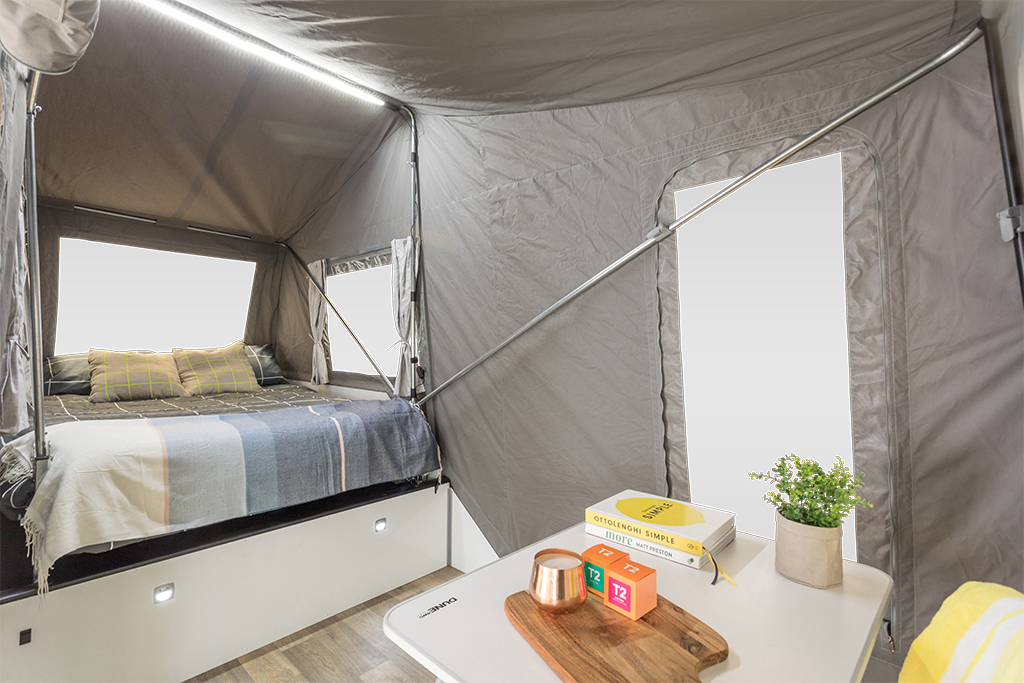

INSIDE FITTINGS
- Bed Size: 2130 x 1350 x 120mm
- Mattress: Slumberest Slim 120 Pocket Spring
- Under Bed Storage: Standard

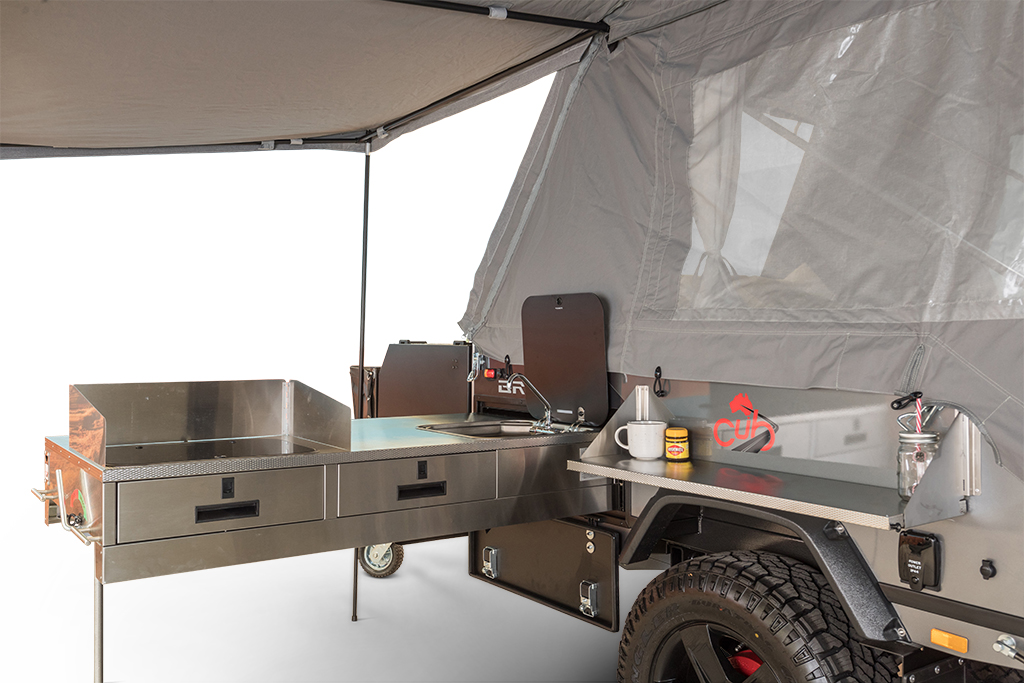

KITCHEN
- Drawers: 4
- Ezy-Clean Kitchen Top: Standard
- Mixer Tap: Standard
- Side Shelf: Standard
- Smev Stainless Steel Stove & Sink: 2 Burner
OUTSIDE FITTINGS
- Alloy Roof Rack: Standard
- Pole Carrier Kit: Standard
- Roof Rack Stabiliser Legs Adjustment Length: 180mm
- Roof Tie Down Points: Standard

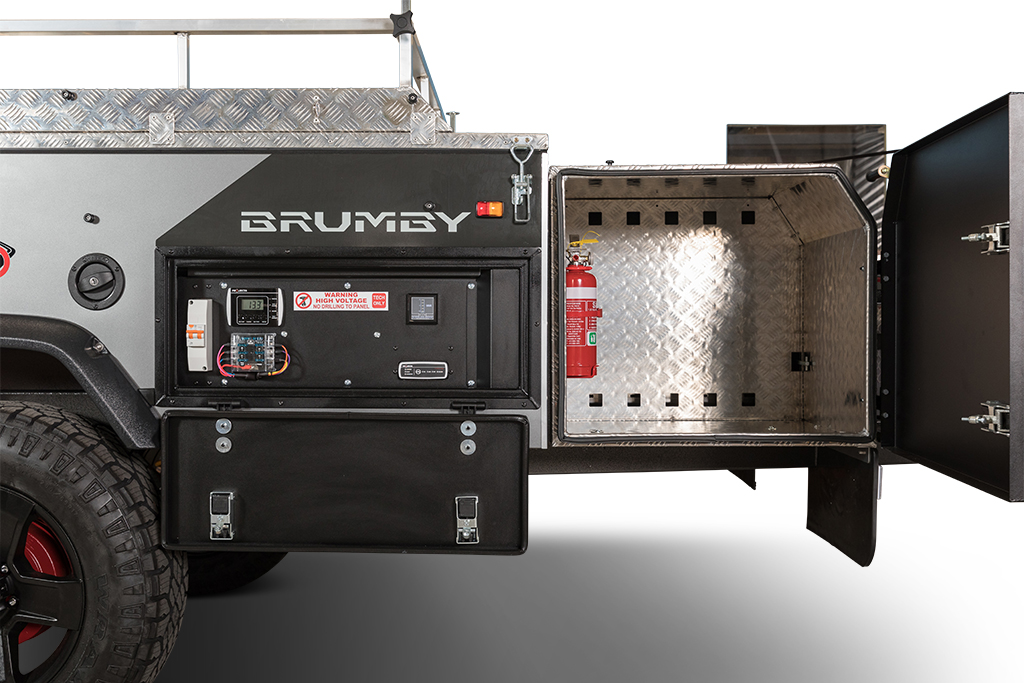

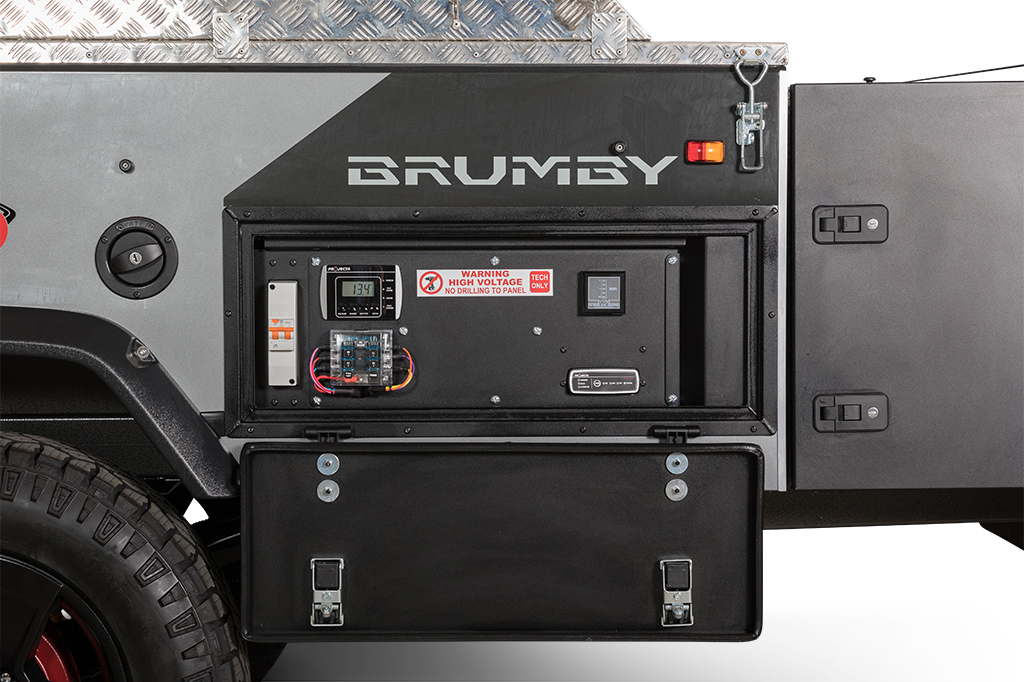

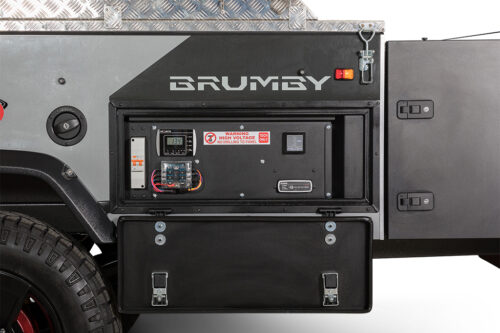

POWER, LIGHT & AIR
- 240V External Inlet (15A): Standard
- 240V External Outlet: Standard
- 240V Internal Double Outlet: Standard
- 100AH Lithium Battery: 1
- Battery Charger IC25RV (240V): Standard
- Battery Charger IDC25X (12V): Standard
- 12V External Outlet (ACC): 2
- 12V Internal Outlet (ACC): 2
- 12V Master Isolation Switch: Standard
- 12V Resettable Fuse for Fridge: Standard
- 12V Twin USB Socket: 2
- LED Awning Light: Standard
- LED Bedside Lights: Standard
- LED Floor Lighting: Standard
- LED Kitchen Light (ACC Plug): 1
- LED Sensor Lights – Fridge Box: Standard
- LED Sensor Lights – Underbed: Standard
- LED Strip Lights (ACC Plug) 1.2 Metre: Standard
- LED Strip Lights (ACC Plug) 3.7 Metre: Standard
- Solar Input (Anderson Plug) – Suits Unregulated Solar Panel: Standard
SUSPENSION & CHASSIS
- AL-KO Wind Down Legs: 2
- Australian Galvanised Steel Chassis: Standard
- Rear Recovery Points (2400kg Rating): Standard
- Shock Absorbers: Single

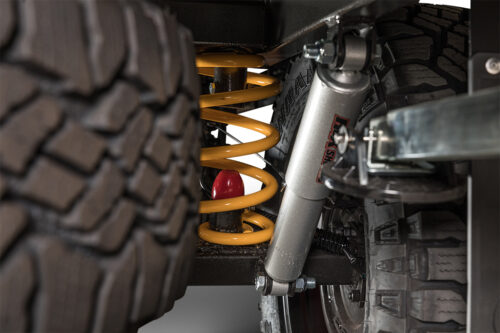

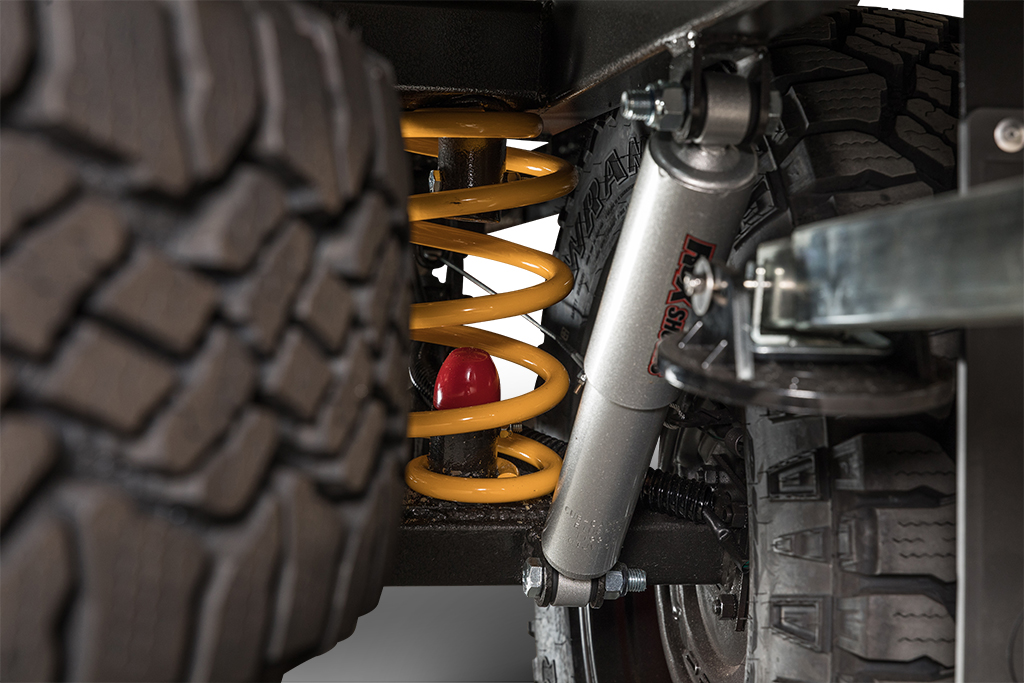

- Suspension: Independent
All models specification are subject to change.
‡ The tare and ball weights are a guide only and will change depending on drawbar layout and accessories fitted to your camper. Please discuss with a member of the Cub sales team prior to purchase.
Below are our most popular options which have been combined into Cub Travel Packs that feature added value for less outlay.
Alternatively if you only want one or two options these can be added individually.
Build your own custom CUB
CALL US TODAY: 03 8727 6100
Packages:
ADVENTURE PACK
- 300AH Lithium Battery Upgrade (Fitted) (5YR Warranty)
- 2nd Water Tank (80L)
- Utility Rack Swing Away
- Utility Spare Wheel Bracket
Note: The Adventure Pack adds approx. 143kg to total camper trailer weight when the 2nd water tank is full. The ball weight will also be affected.
XTREME OFF ROAD PACK
- 6” Drawbar (inc. ATM increased to 1,650kg)
- 12” Hubs
- 265/65R17 BFG KM3 M/T Tyres – Black Alloy Wheels with Red Trim X3
- Cruisemaster DO35 Hitch
- Twin Shock Absorbers
ALL AVAILABLE OPTIONS
BRAKES & WHEELS
- Alloy 17 Inch Spare Wheel
- Disc Brake Option – Off Road 12 inch
- Gun Metal Wheel Upgrade
- Swivel Jockey Wheel
CANVAS
- 1/2 Long Canvas Wall With Door
- 1/2 Long Canvas Wall With Window
- 1/2 Long Wall Mesh
- 1/2 Long Wall Mesh With Door
- Camo Tent Upgrade
- Draught Skirt
- Ezy Awning
- Front Wall Canvas (With Window)
- Front Wall Mesh
- Mesh Doorway for Half Long Wall
- Plastic Bedside Windows incl. Curtains
- Rear Wall Canvas (With Window)
- Rear Wall Mesh
- Thermal Blanket
DRAWBAR
- Cruisemaster DO35 Coupling Upgrade
- Drawbar Extension Upgrade – 400mm
- Fridge Box Rack
KITCHEN & GAS
- Extra Gas Bayonet (PS Utilities Only)
OUTSIDE FITTINGS
- Boat Loader Kit
- Colour Upgrade – Dover White, Monument, Pale Eucalypt
- Rear Utility Rack
- Utility Rack Bike Bracket
- Utility Rack Outboard Bracket
- Utility Rack Single Jerry Can Bracket (Water Only)
- Utility Rack Spare Wheel Bracket
POWER, LIGHT & AIR
- 300Ah Lithium Battery Upgrade (5 Year Warranty)
- Redarc BMS 30 Upgrade
- Solar Panel – 180W Projecta Fold Up Kit
- TV Coaxial Outlet
SUSPENSION & CHASSIS
- Hot Dip Galvanise
WATER
- 80L Water Tank Additional
- Fridge Box DS Utilities (Additional Water Line to Kitchen)
- Fridge Box DS Utilities (Gas & Water)
- Smarttek Portable Hot Water & Shower Kit
- Smarttek Shower Tent
- Water Tank Protector
TRAVEL OPTION PACKS
- Adventure Pack
- Xtreme Off Road Pack
POPULAR OPTIONS
- 300Ah Lithium Battery Upgrade (5 Year Warranty)
- 1/2 long Canvas wall with door
- 1/2 long Canvas wall with window
- Alloy 17 Inch Spare Wheel
- Boat Loader Kit
- Draught Skirt
- Front Wall Canvas (with window)
- Rear Wall Canvas (with window)
- Utility rack bike bracket
