Trakmaster Explorer - Hybrid Off-Road Caravan

Explorer definition: noun

An Explorer is someone who travels to new places on roads less travelled to make discoveries.

What will you find in your search?

Explorer - What it means to us

Trakmaster has built a legacy in the Australian Hybrid Off-Road Caravan segement by consistently delivering high-quality, durable, and custom-built off-road vehicles. Here are some key aspects that contribute to Trakmaster’s legacy:

  1. Experience and Expertise: Trakmaster has built an enviable reputation over the past 25 years, during which, it has evolved its design and manufacturing based on extensive experience and customer feedback.
  2. Customization: Trakmaster’s approach to off-road vans is highly focused on customization. We understand that every traveler has unique needs and preferences, so we offer a personalized experience by building vans according to individual specifications. This customization aspect allows customers to tailor their off-road van to meet their specific requirements and travel style.

Fast Facts about this Off-Road Caravan


  • HEIGHT WITH A/C: 3000mm
  • WIDTH WALLS: 1945mm
  • WIDTH GUARDS: 1990mm
  • WIDTH AWNING (MAX): 2070mm
  • LENGTH DRAWBAR: 1022mm


  • Featuring standard N/S pocket spring queen bed
  • No cost to change bed orientation to E/W or twin N/S singles
  • Undermattress liner
  • 4 person dinette, swing away table (6 with E/W)
  • Twin fans
  • Airconditioning
  • Diesel Heating and Hotwater
  • Twin LED reading lights with USB sockets
  • Under seat storage
  • 3 large living space windows, integrated sandfly, privacy screens


  • Starting Tare Weight Explorer: ~ 2060kg
  • Starting Ball Weight Explorer: ~ 175kg
  • ATM (Max Load): ~ 2600kg
  • Payload: ~ 540kg

Starting weights are without additional options and with empty water tanks.


No cost to change to N/S single beds or E/W Queen width


  • Single handed operation with a flick-mixer and full-height shower rose
  • Drain plumbed directly to onboard grey water tank, with external overflow connection for use at caravan parks
  • Dometic Saneo CS; cassette, 16L black tank with a bowl adjustable by 90° in both directions
  • Hassle free access to toilet cartridge allowing for on-the-go emptying and swapping. The cartridge setup is the easiest on the market to use and doesn’t require extra “washable” items that tanks or composting units require
  • Integrated LED panel light with dimmer
  • Shower mirror fitted to door
  • Overhead towel hangers and rear wall caddy with drainage
  • SOG ventilation to further improve the owners experience by venting the toilet storage externally
  • Shower window


The Premiun stainless-steel kitchen utilises advanced sheet metal techniques for a premium feel, including rounded edge.

The powder coated, predominantly aluminium body makes access to storage a breeze, incorporating many drawers for the storage of all your kitchen needs.

The Premium Kitchen boasts a Thetford 3 burner (2×1.5KW, 1×2.5KW) glass topped stainless steel cooktop with Piezo ignition and matching stainless-steel sink with flick style tap, draining board and cutlery drawer located below. The kitchen utilises a lock in / lock out handle which accommodates single handed operation and slides on ball bearing runners. The integrated windshields are deployed by simply raising them into position. We’ve even fitted a bottle opener so you won’t have to go searching for your keys!

  • External 95L fridge dual zone fridge/freezer
  • More useable awning space 3.9 x 2.5m with middle brace


The gas cooktop can be upgraded to a Safiery 2 Hob Induction Cooktop with Built-in 1800W and 1500W hobs (limited max draw to 2000W). German IGBT control, German Schott Ceran High grade black crystal plate and touch Sensor controls. Features: timer, child lock, auto off, overheat and cookware detection off.


Our emphasis on outdoor cooking and preparation can be clearly seen by the positioning of the external kitchen in relation to the pantry (middle of awning) offering maximum protection and convenience.

Large external pantry (~115L) with deep well-thought-out shelves to accommodate a broad variety of food packaging. Featuring gas strut assisted door, LED light and compression seals with lock.

It’s a great place to keep cooking aids – paper towel, spices, oil as well as standard pantry items. Within minutes, it feels natural reaching up to the panty to get the things you need.

Trakmaster Layout Configurations

The bed is standard as an North/South orientation with 4 dinette seats. However, this is fully customisable and can be a full queen width bed in the East/West configuration or twin king N/S single beds with a step through.

North / South Queen Bed

North / South King Singles

East / West Queen Bed

Rear Kitchenette Configurations

The overhead lockers are large and offer generous amounts of space for pantry goods. The bench height is the same as most household benches to ensure comfort while using. This is assisted by cut in kick panels (room for your feet) allowing you to stand closer to the bench. The rangehood is neatly concealed behind the overhead locker doors for a clean and consistent look.

Additionally, you can select which water tank you are using from inside the van, right at the kitchen.The internal kitchen space has a broad variety of options and configurations that allow you to fully customise the space swapping storage for cookers, microwaves and an internal fridge.

Standard Layout

Included in the Standard Specification

  • Internal selection of water source (tank(s), pressurised inlet and drawer from a jerry can/other)
  • 2 x large and deep overhead lockers
  • 2 x 240V power points located door side on benchtop (not available if gas cooker option is fitted)
  • Internal sink (11L capacity) plumbed directly to onboard grey water tank with flick mixer pressurised tap
  • Hand pump including an isolated drinking filter
  • 900W microwave located under sink
  • The ergonomic kitchen bench is set at a ‘back friendly’ height, the same as most households with cut-in kick panels (room for your feet) allowing you to stand closer
  • Rear cabinetry total of 4 pull-out drawers: 1 x medium under-sink drawer (350D x 185H x 465W), 3 x medium drawers entry door side (450D x 245H x 495W)
  • All drawers feature manual central locking allowing the user to engage all drawer locks easily and simultaneously prior to departure – an Industry first!
  • Option to use a portable induction cooker such as the 2000w Safiery induction cooktop

All Kitchenette Options

Available Options

  • Internal upright 85L fridge with dual fan condenser cooler kit. Replaces 3 x medium drawers door side
  • Rangehood with external venting (required for gas cooker option). Hidden behind the door side overhead locker door. Slightly reduces the storage height but is a good option if you wish to use a portable induction cooker inside
  • Thetford glass-top 3-burner cooktop with Piezo ignition and flame failure device on valves. Changes door side drawer sizes 1 x small (450D x 150H x 495W) and 2 x medium (450D x 245H x 495W) and requires fixed ventilation
  • Single burner 2000w Safiery induction cooktop mounted in bench


  • Precision sheet-metal wall and roof construction

  • Full height design delivers minimal setup time and easy access for roadside stops

  • Strong double skin doors allow easy access to external storage on both sides of the Explorer lower body

  • Custom designed chassis and uniquely tuned Trakmaster Trak-Two independent trailing arm coil suspension with twin shocks

  • Hot Dipped Galvanised (HDG) chassis, the gold standard of corrosion protection and features a *393% increase in protection, when compared to DuraGal® and similar alternatives offered by other manufacturers

Power Information

Presentation of electrical systems is at eye level as a part of the control tower including a cigarette plug, 2 x 240V and 2 x USB

Redarc Redvision

Redvision® has been used to give you access to all the major appliance and onboard systems. Using the screen or your mobile phone (via Bluetooth app) you can switch inside and outside lights, view energy charge / consumption, check water capacity, turn on the inverter and easily deactivate the fridge(s) for storage, activate on board water pump and so much more.

This Australian designed and made electrical system accepts and regulates charge from solar, the tow vehicle and an external 240V source. All circuits have fuses and there is a master power switch for storage.

Batteries types and numbers (max 4) can be changed and upgraded, without the need to change any charging components.

Revolution Lithium Batteries

The Trakmaster has premium Revolution Batteries specified as standard because they are engineered and extensively tested in the field. Revolution is an Australian family company that has decades of hands-on experience.

The Batteries are ultra-light and have Australia’s most advanced state of the art Battery Management System (BMS) inbuilt to ensure peace of mind, when it comes to battery protection and safety. Plus a 3-year replacement warranty.

Standard Electrics

  • Presentation of electrical systems is at eye level as a part of the control tower including a cigarette plug, 2 x 240V and 2 x USB
  • REDARC Manager 30 Multi Stage AC-DC battery charger and DC-DC charger with MPPT solar regulator, dual battery isolator, load disconnect controller
    REDARC RedVision with Bluetooth control for systems and management of power consumption
  • 2 x 250Ah (400 total usable) lithium LiFePO4 batteries – Revolution
  • 2 x 200W solar panel mounted rearward on roof
  • 50A BC-DC Redarc charger
  • Anderson plug to tow vehicle with fuse
  • External solar input Anderson plug
    Internal battery and solar isolation switches
  • 240V circuit breaker power box
  • External 240V outlet entry side behind guard
  • Inverter and 240V source auto switching
  • REDARC inverter (2000W)

Trakmaster Storage

Standard storage and customisation

The overhead lockers are secured with strong magnets (no locks required) and offer a surprisingly large amount of space. Towards the bed head end the lockers morph into quick storage for smaller items.

In the case of a queen bed in the North/South configuration there are also two bed side consoles that offer generous storage.

Above door side seating you’ll find open storage with access to power for charging on the go. Below this is also perfect real estate for a map or photo board.

Any seat location on the ‘Ensuite’ side of the van can also be upgraded for additional storage. A full height wardrobe can be installed alongside the shower while a low 2-drawer benchtop system can be located in lieu of any seat.

The table position changes to accommodate seat location.

Door side shelf with 2 x USB

Open storage

Magnetic lockers

Contoured open storage

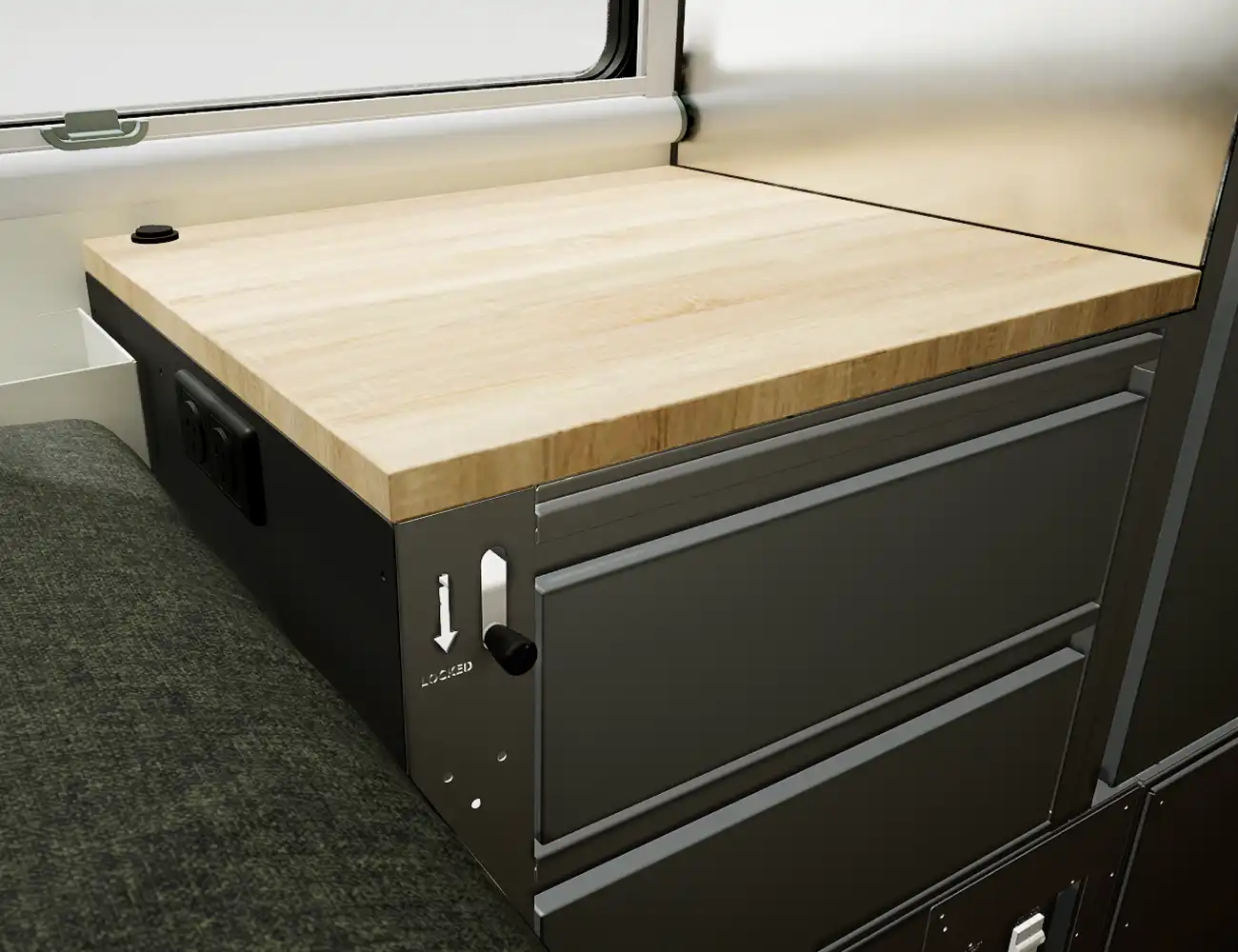

Optional 2 drawer set

2 x large drawers (470W x 195H x 530D) with benchtop including 2 x USB and 2 x 240V power points along with an internal magazine holder with manual central locking. If fitted as 2nd module on N/S bed configuration, magazine holder not available

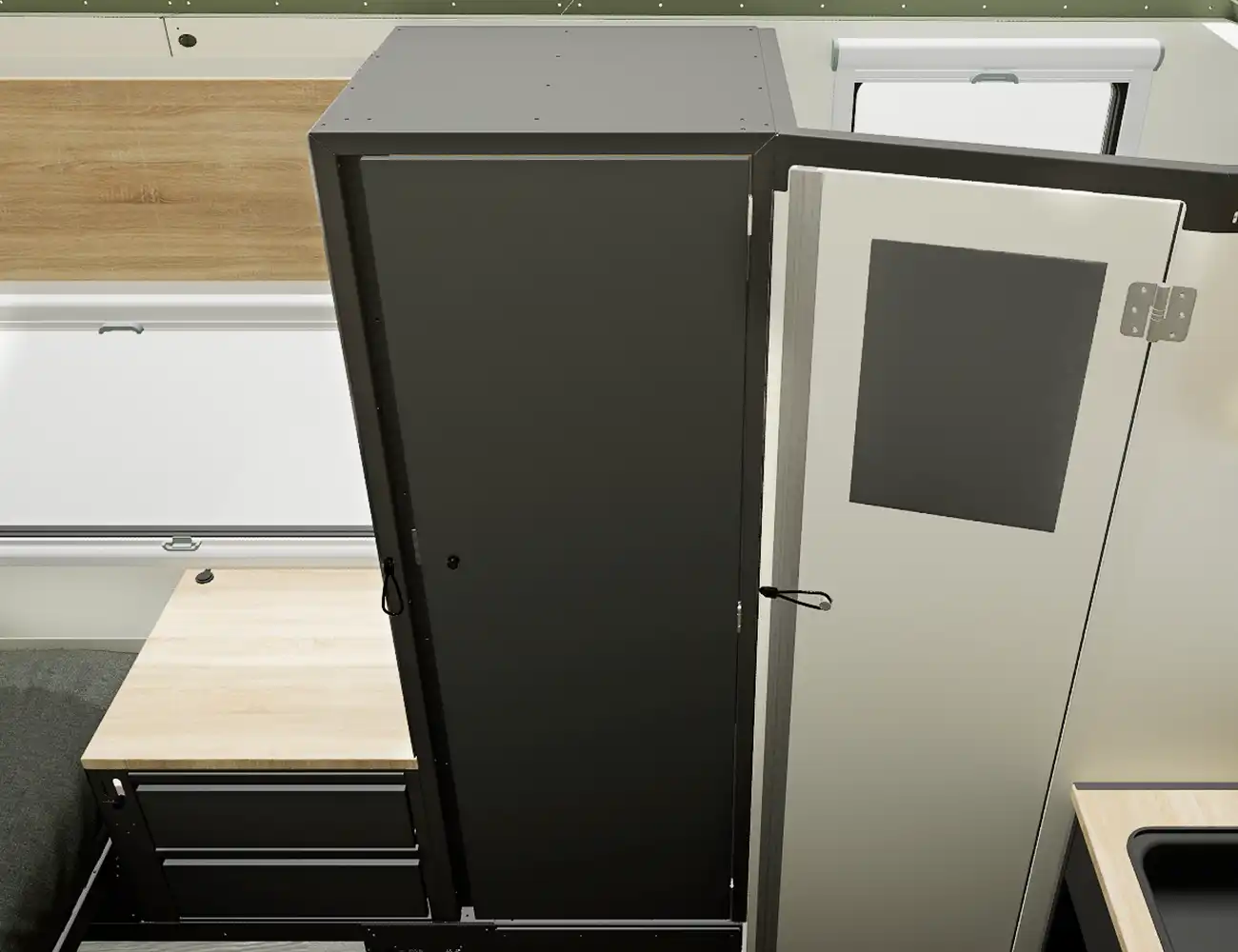

Optional Wardrobe

Full-height wardrobe with 3 x shelves (300W x 300H x 530D) and hanging space (295W x 530D x 1600H)

Trakmaster External Storage

Strong double skin doors allow easy access to external storage on both sides of the Explorer’s lower body. This allows the owner to view all the spaces at once and have direct access to every single area, without being impeded by small openings.
• Front boot side lockers ~120L each
• Lower body box (front) ~750L RHS
• Lower body box (rear) ~900L RHS

Lightweight aerodynamic front nose cone offers dust free storage and unique styling ~660L
Front nose locker featuring ARB® aluminium track and load ring set x 4
Large slide-out drawbar storage unit – useful for Genset or Jerry Cans ~250L

Explorer Bar Options

The Explorer is designed with flexibility in mind.

We provide the rear galvanised bumper standard and it creates the platform to accommodate our rear storage options. You can easily fit (max) two small storage units, a wood box or jerry can carrier in a 50/50 or 2 of the same design. We can also accommodate a large wood box, spare wheel carrier or ISI dual bike rack. Max load is 50kg. The rear maxtrax storage is available on all configurations except the spare wheel. These options can be changed with time or upgraded after taking delivery.

Single Jerry or Wood Box

Large full width woodbox

ISI Dual bike carrier

Our Difference

This brand-new Explorer represents the very best in Aussie ingenuity. It’s built tough and its focus is on you, your needs and is fully customisable to give you the best possible camping experience.

Backed by TRACK and Pioneer Campers, two leading brands in off-road touring, the Trakmaster Explorer has the pedigree of its past and the design of the future.

3 years on body and build

5 years on chassis and suspension
