Description

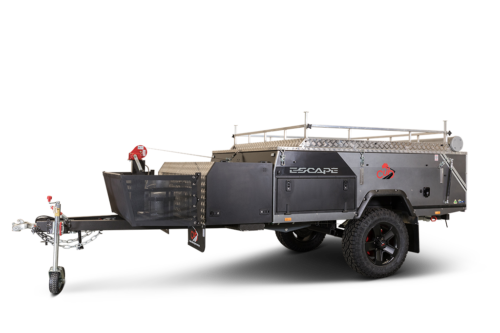

CUB ESCAPE – SPACIOUS OFF-ROADER WITH ALL THE ESSENTIALS
This popular off-road model is ideal for the family, or couples who want that bit of extra room to move. The area at the foot of the bed is perfect for an optional set of drawers and is unique to Cub’s 2.6 Series. With this extra area, Cub’s 2.6 Series provides significantly more living space than any other major brand of camper trailer of a similar size.

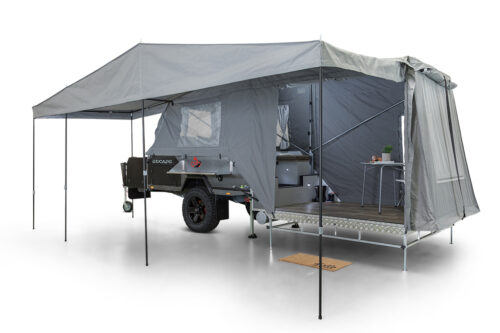

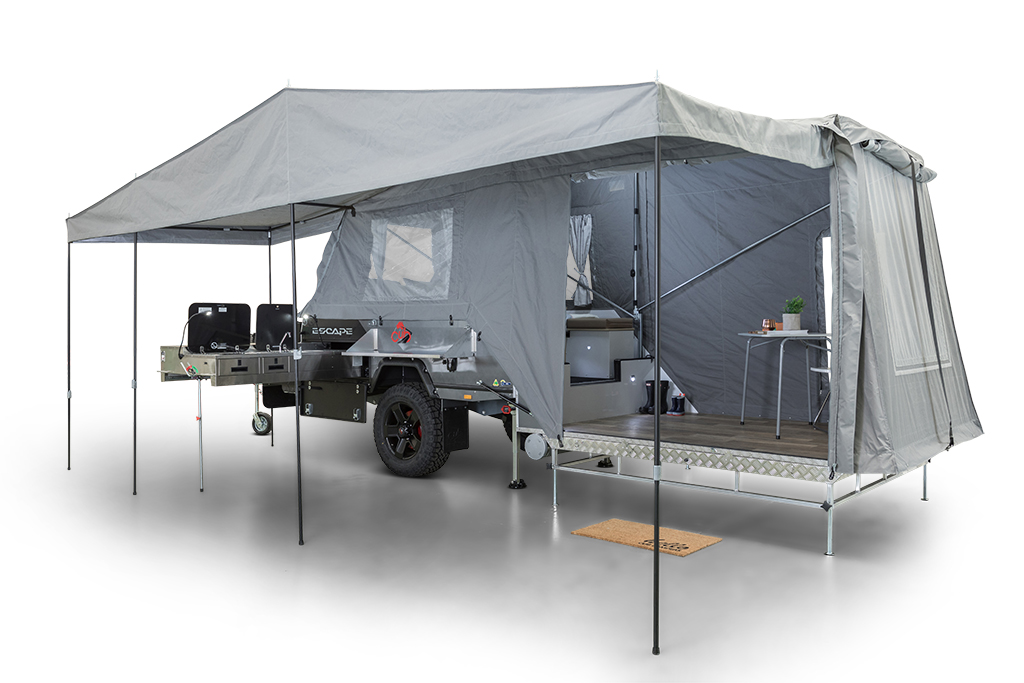

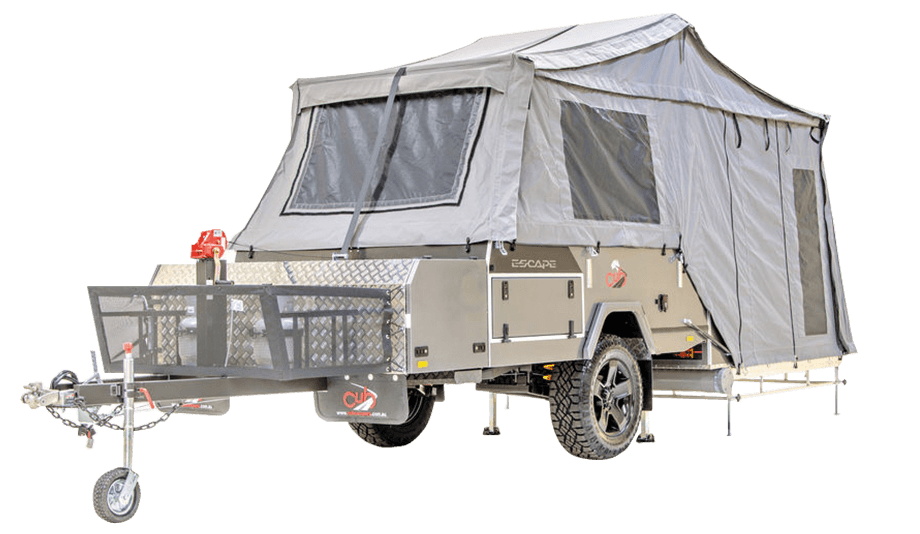

You can easily tow the Escape behind a 4WD, and set up is quick and simple. The camper opens up to over 5 metres of living space – plenty of room for a swag, bunks or extra storage.
KEY FEATURES
- 100% Australian-made Tent using Wax Converters Dynaproof Canvas
- 100Ah Lithium Battery (3 Year Warranty)
- 4kg Gas Bottle & Holder x 2
- 12” Electric Brakes
- 265/65R17 Goodyear Duratrac on 17 x 6 Stud Alloy (6/139.7 PCD) Wheels
- Battery Charger IC25RV (240V)
- Battery Charger IDC25X (12V)
- LED Lights (internal & external)
- Light to Tow
- Independent Suspension
- Quick & Easy to Set Up (The Ezy-wind silent winch comes as standard)
- Rear Recovery Points x 2
- Roof Rack Stabiliser Legs (with 180mm adjustment for uneven ground)
- Large Fridge Box & Slide with storage box
- Under-bed Storage
- Dover White Colorbond Panels
Build your own custom CUB
CALL US TODAY: 03 8727 6100
Standard Features & Specifications:

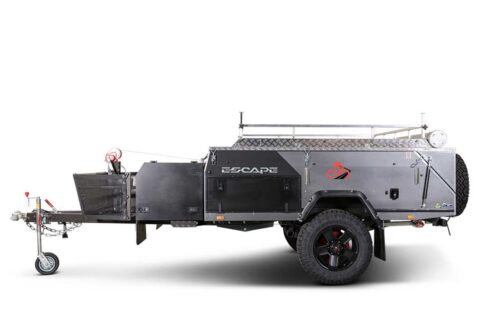

BODY SPECS
- Body Length 2.60M
- Body Width 1.95M
- Towing Height 1.78M
- Towing Length 4.93M
- Open Length Inc. Draw Bar 7.48M
- Tare 1076kg ‡
- Ball Weight 162kg ‡
- ATM 1900kg
- Colour Dover White

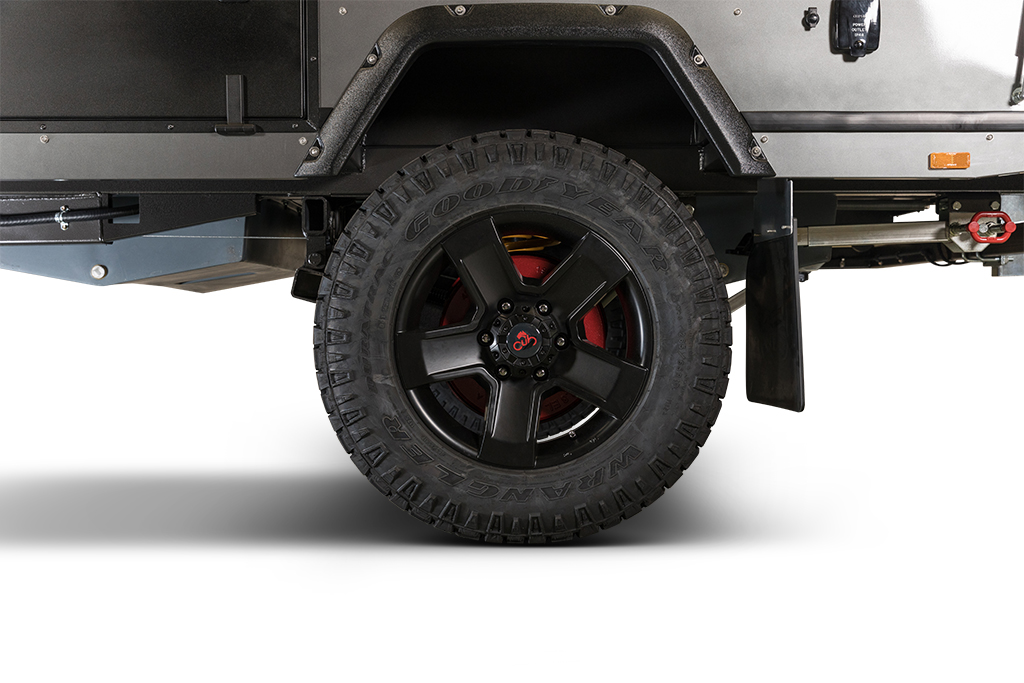

BRAKES & WHEELS
- AL-KO Square Axle: 50mm
- Brakes: 12” Electric

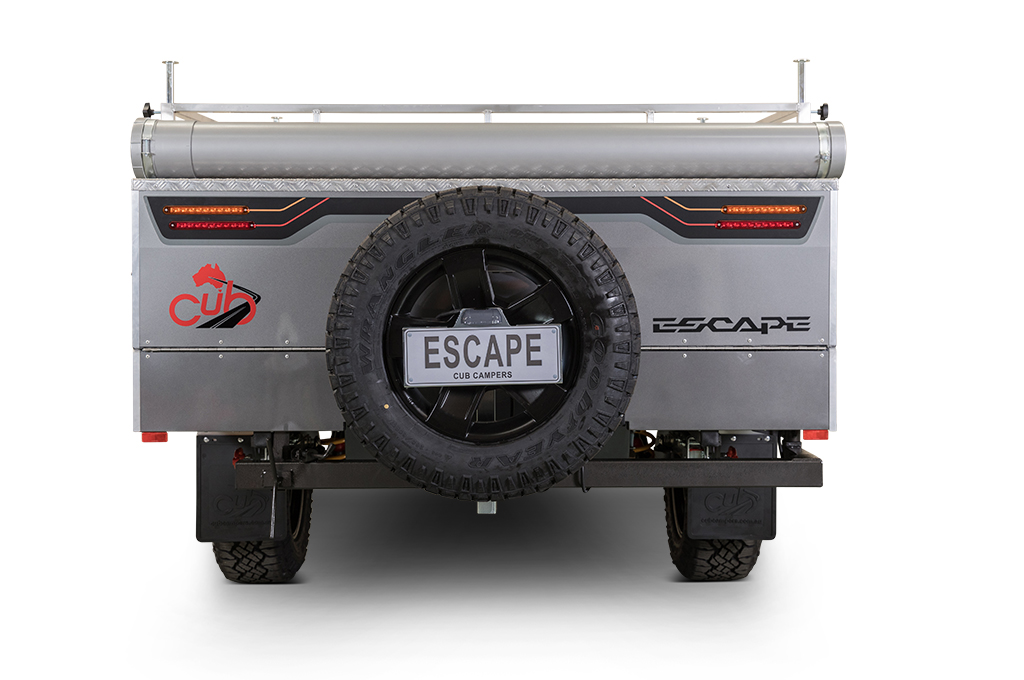

- Spare Wheel: Rear Wind Up (Steel)
- Tyres: 265/65R17 Goodyear Duratrac
- Wheel Type: 17 x 8 Black Alloy (6/139.7 PCD)
CANVAS
- 100% Australian Made Tent Using Wax Converters Dynaproof Canvas: Grey
- Aluminium Awning Poles: Standard
- Deluxe Awning: Standard
- Internal Front Canvas Window & Zipper: Standard
- Plastic Bedside Windows Inc. Midge-Proof Fly Screen & Curtains: Standard
- Window Weather Shield Set: 2

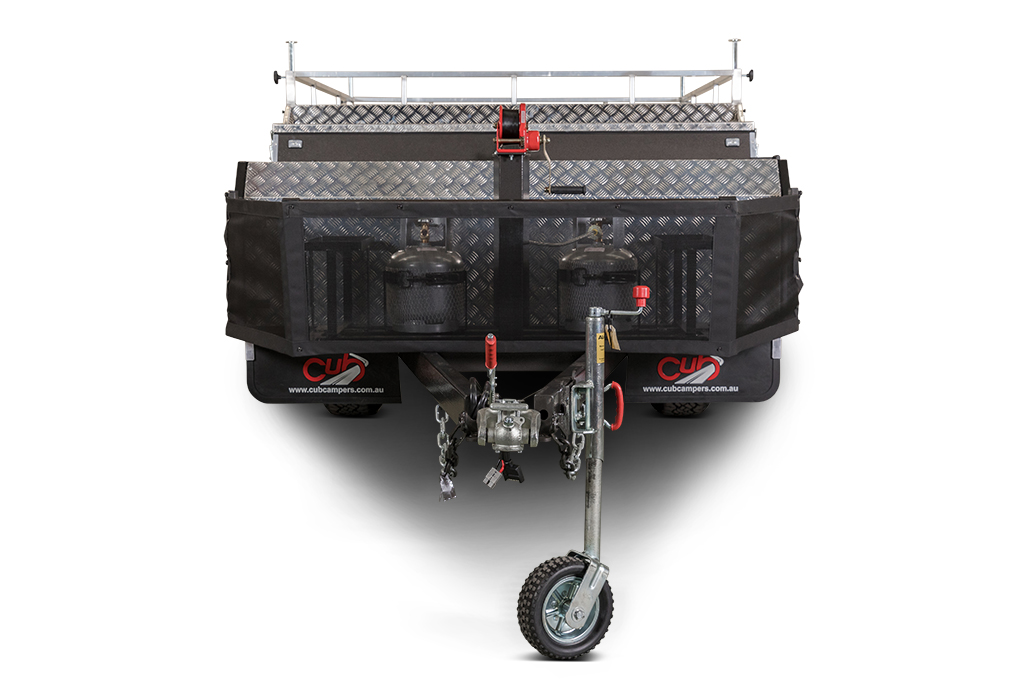

DRAWBAR

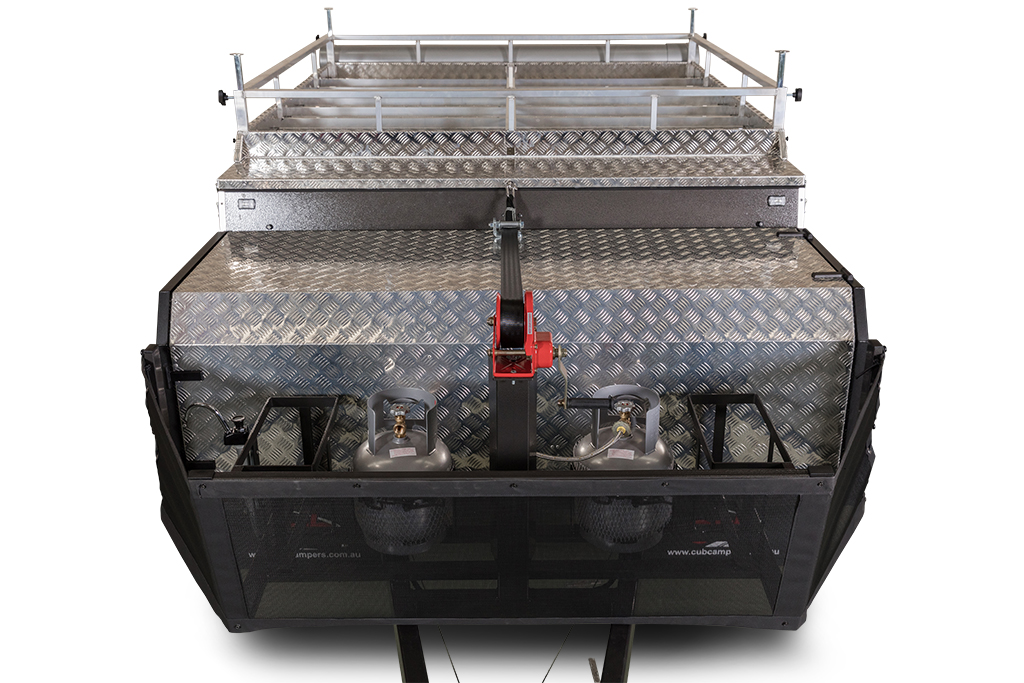

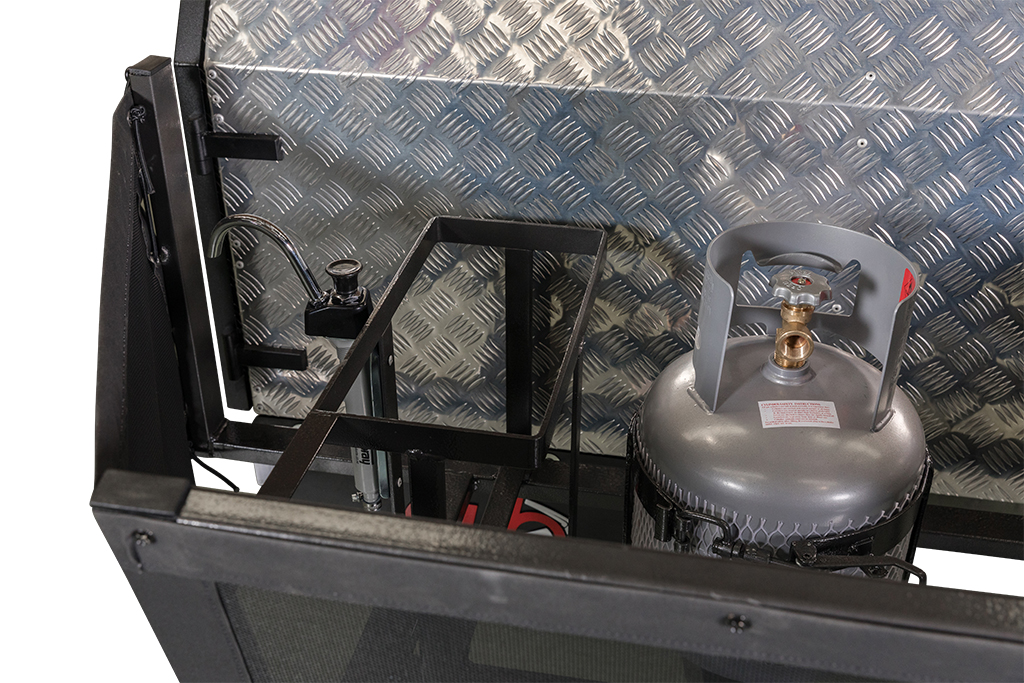

- 4kg Gas Bottle & Holder: 2
- Additional Clamp for AL-KO Jockey Wheel: Standard

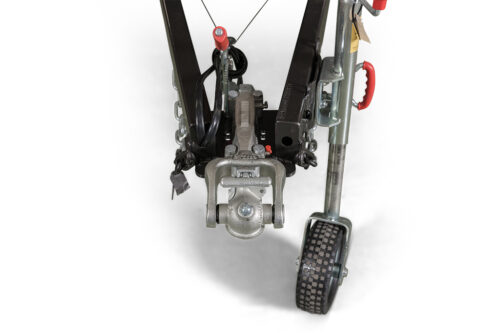

- AL-KO Ball Hitch: 50mm Off Road
- AL-KO Jockey Wheel: 250mm
- Drawbar: 150 x 50 x 3.0mm

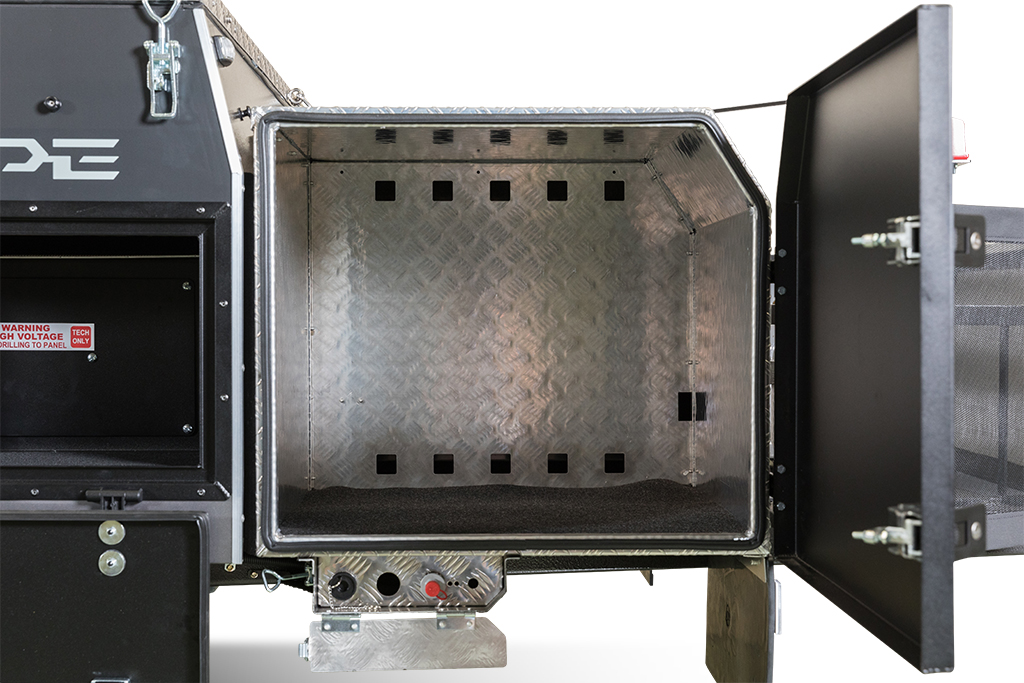

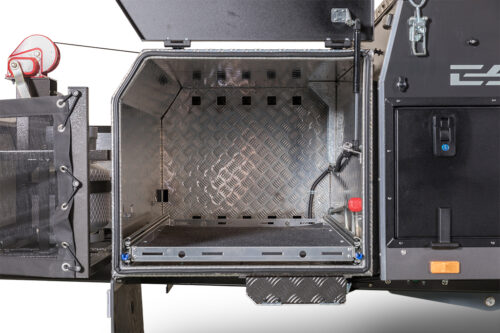

- Fridge Box and Slide: Standard
- Fridge Box Size: W=560mm L=930mm H=515mm
- Galvanised Steel Stoneguard: Standard
- Jerry Can Holder: 2

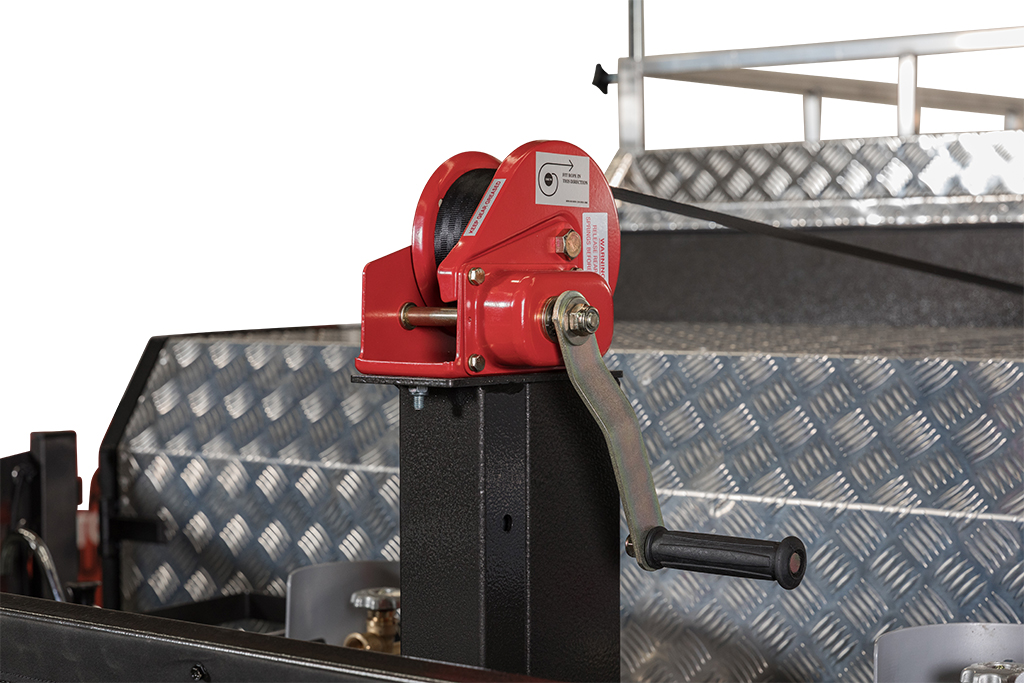

- Silent Winch: Standard
- Stonestopper Mud Flaps: Standard
WATER
- 12V Water Pump: 10 L/min
- Water Tank: 100L
- Hand Pump on Drawbar: Standard
- Locking Water Filler: Standard
- Water Gauge: Standard

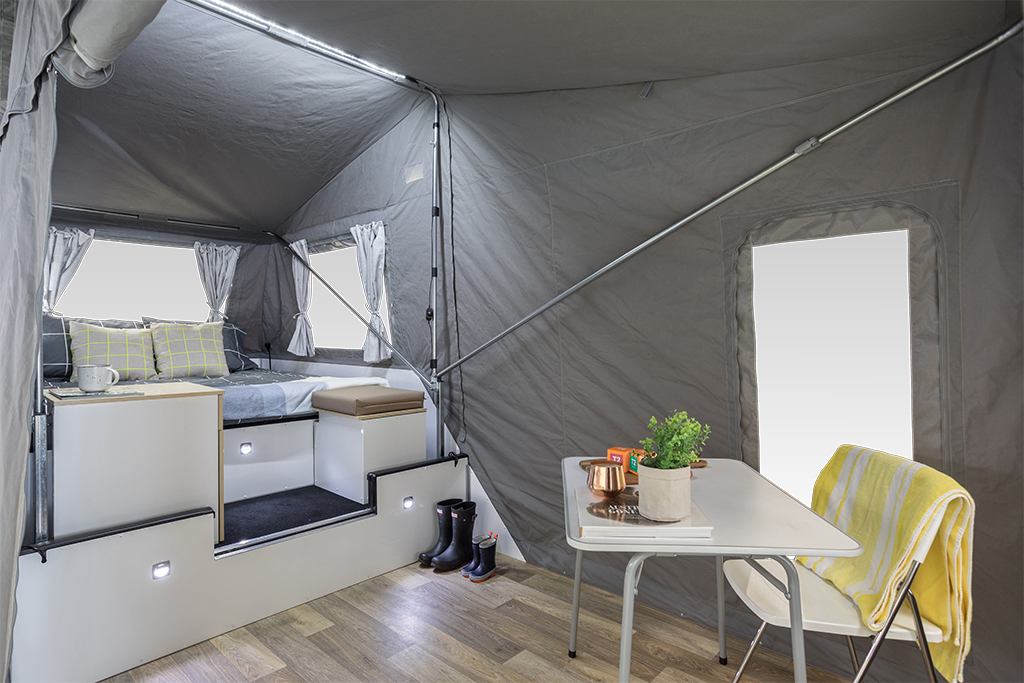

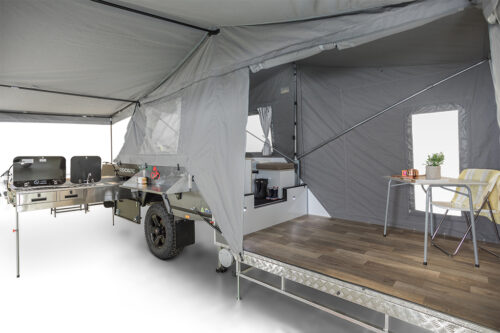

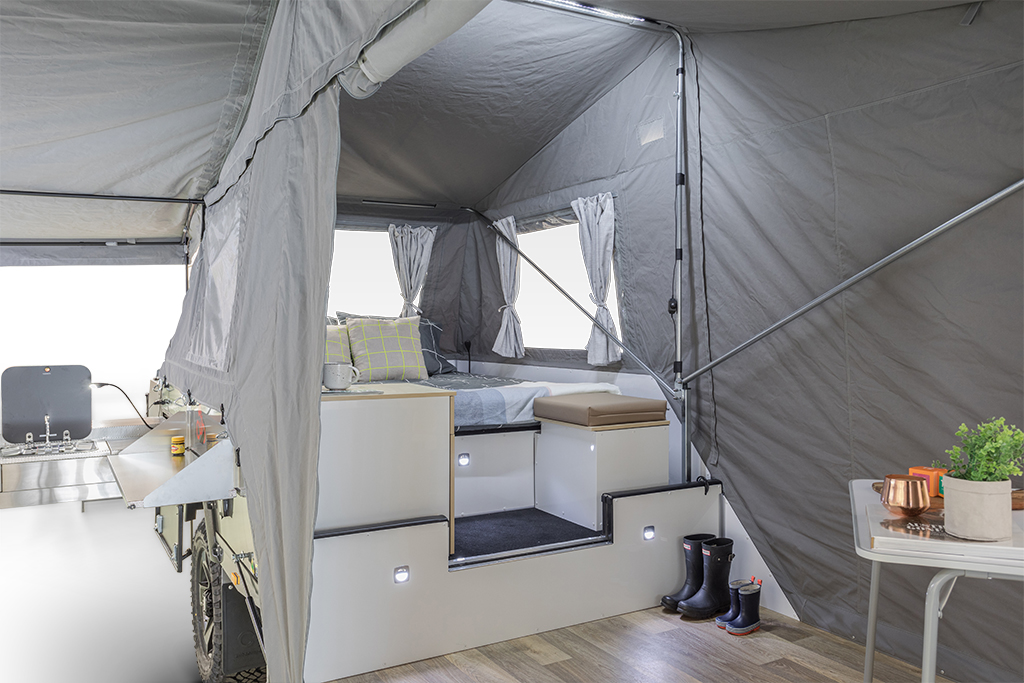

INSIDE FITTINGS
Bedroom Privacy Screen Standard
Bed Size 1960 x 1500 x 135mm
Mattress Slumberest Cloud 9 Pillow Top
2 Drawer Cupboard with Seat Cushion Standard
Under-Bed Storage Standard

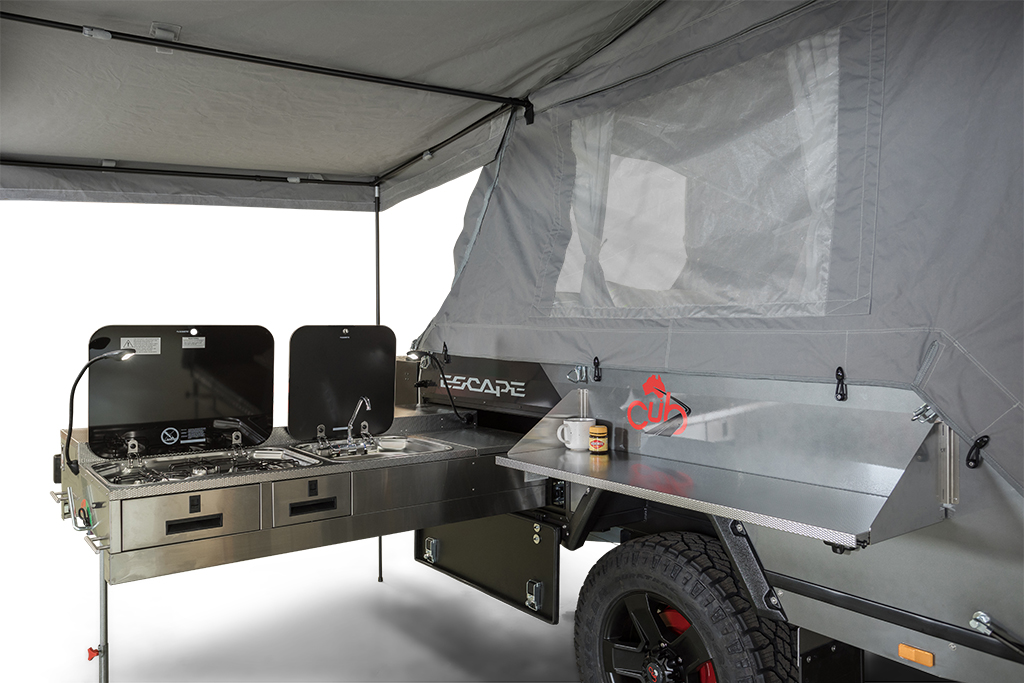

KITCHEN
- Drawers: 5
- Ezy-Clean Kitchen Top: Standard
- Mixer Tap: Standard
- Side Shelf: Standard
- Smev Stainless Steel Stove & Sink: 3 Burner
OUTSIDE FITTINGS
- Alloy Roof Rack: Standard
- Pole Carrier Kit: Standard
- Roof Rack Stabiliser Legs Adjustment Length: 180mm
- Roof Tie Down Points: Standard

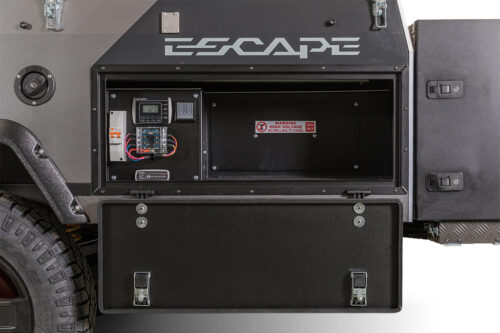

POWER, LIGHT & AIR
- 240V External Inlet (15A): Standard
- 240V External Outlet: Standard
- 240V Internal Double Outlet: Standard
- 100AH Lithium Battery: 1
- Battery Charger IC25RV (240V): Standard
- Battery Charger IDC25X (12V): Standard
- 12V Accessory/USB Socket – DS Locker: Standard
- 12V External Outlet (ACC): 2
- 12V Internal Outlet (ACC): 2
- 12V Master Isolation Switch: Standard
- 12V Resettable Fuse for Fridge: Standard
- 12V Twin USB Socket: 2
- Fusion Stereo & Speakers: Standard
- LED Awning Light: Standard
- LED Bedside Lights: Standard
- LED Floor Lighting: Standard
- LED Kitchen Light: 2
- LED Sensor Lights – DS Locker: Standard
- LED Sensor Lights – Fridge Box: Standard
- LED Sensor Lights – Underbed: Standard
- LED Strip Lights (ACC Plug) 1.2 Metre: Standard
- LED Strip Lights (ACC Plug) 3.7 Metre: Standard
- Solar Input (Anderson Plug) – Suits Unregulated Solar Panel: Standard

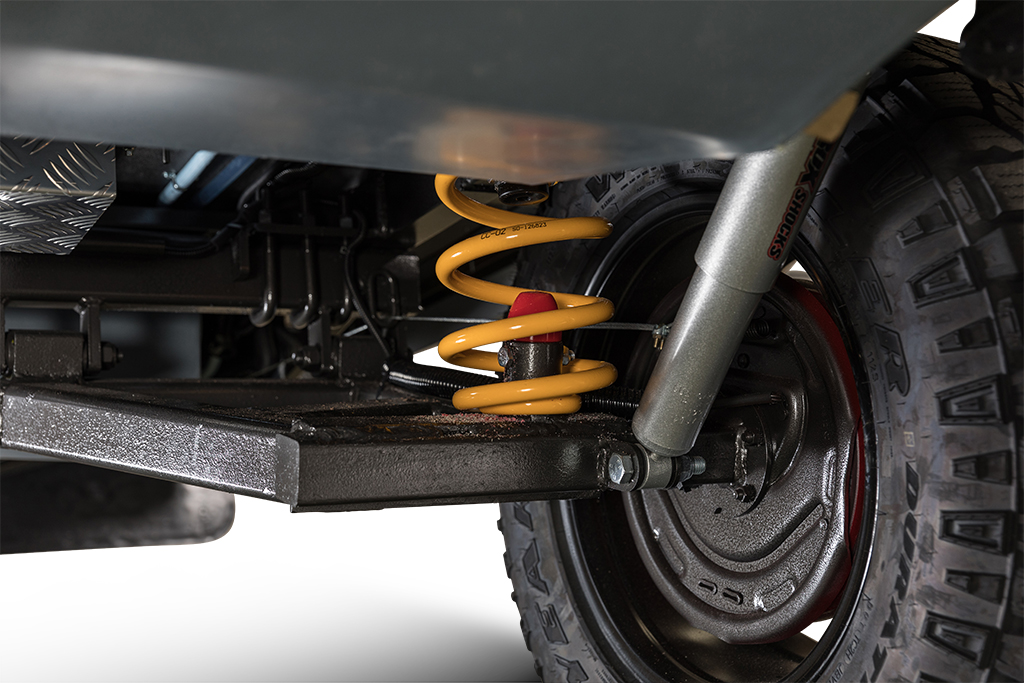

SUSPENSION & CHASSIS
- AL-KO Wind Down Legs: 2
- Australian Galvanised Steel Chassis: Standard
- Rear Recovery Points (2400kg Rating): Standard
- Shock Absorbers: Twin
- Suspension: Independent
All models specification are subject to change.
‡ The tare and ball weights are a guide only and will change depending on drawbar layout and accessories fitted to your camper. Please discuss with a member of the Cub sales team prior to purchase.
Price includes GST.
Price does not include associated delivery and on road costs.
Below are our most popular options which have been combined into Cub Travel Packs that feature added value for less outlay.
Alternatively if you only want one or two options these can be added individually.
Build your own custom CUB
CALL US TODAY: 03 8727 6100
Packages:
ADVENTURE PACK
- 300AH Lithium Battery Upgrade (Fitted) (5YR Warranty)
- 2nd Water Tank (80L) Inc. 2nd Water Filler
- Utility Rack Swing Away
- Utility Spare Wheel Bracket
OFF GRID PACK (300Ah)
- 2nd Water Tank (80L)
- 80L and 100L Water Tank Protectors
- 180W Folding Solar Panel Kit Inc. 5m Lead with Anderson Plug
- 300AH Lithium Battery Upgrade (Fitted) (5YR Warranty)
- Utility Rack Upgrade
- Utility Spare Wheel Bracket
TECHNOLOGY PACK
- 2000W Inverter
- Redarc BMS30
- Redarc RedVision TVMS
- Rearview Camera
XTREME OFF ROAD PACK
- 265/65R17 BFG KM3 M/T Tyres – Black Wheels with Red Trim X3
- Cruisemaster DO35 Hitch
- Increased ATM to 1950kg
ALL AVAILABLE OPTIONS
BRAKES & WHEELS
- Alloy 17 Inch Spare Wheel Upgrade
- Disc Brake Option – Off Road 12 inch
- Gun Metal Wheel Upgrade
- Swivel Jockey Wheel
CANVAS
- 1/2 Long Canvas Wall With Door
- 1/2 Long Canvas Wall With Window
- 1/2 Long Wall Mesh
- 1/2 Long Wall Mesh With Door
- Camo Tent Upgrade – 2.6 Series
- Draught Skirt
- Driver’s Side Door On Tent
- Ezy Awning
- Front Wall Canvas (With Window)
- Front Wall Mesh
- Mesh Doorway for Half Long Wall
- Mesh Doorway for Tent
- Rear Wall Canvas (With Window)
- Rear Wall Mesh
- Room Divider Curtain & Rod
- Thermal Blanket
DRAWBAR
- Cruisemaster DO35 Coupling Upgrade
- Drawbar Extension Upgrade – 400mm
- Fridge Box Drawer Set
- Fridge Box Top Drawer Only
INSIDE FITTINGS
- Bed Assembly 1960 – 2 Singles
KITCHEN & GAS
- Extra Gas Bayonet (PS Utilities Only)
OUTSIDE FITTINGS
- Boat Loader Kit
- Colour Upgrade – Dover White, Monument, Pale Eucalypt
- Rear Utility Rack
- Utility Rack Bike Bracket
- Utility Rack Outboard Bracket
- Utility Rack Spare Wheel Bracket
- Utility Rack Twin Jerry Can Bracket (Water Only)
POWER, LIGHT & AIR
- 300Ah Lithium Battery Upgrade (5 Year Warranty)
- Redarc BMS 30 Upgrade
- Redarc RedVision Kit Upgrade
- Solar Panel – 180W Projecta Fold Up Kit
- TV Coaxial Outlet
SUSPENSION & CHASSIS
- Hot Dip Galvanise
WATER
- 80L Water Tank Additional

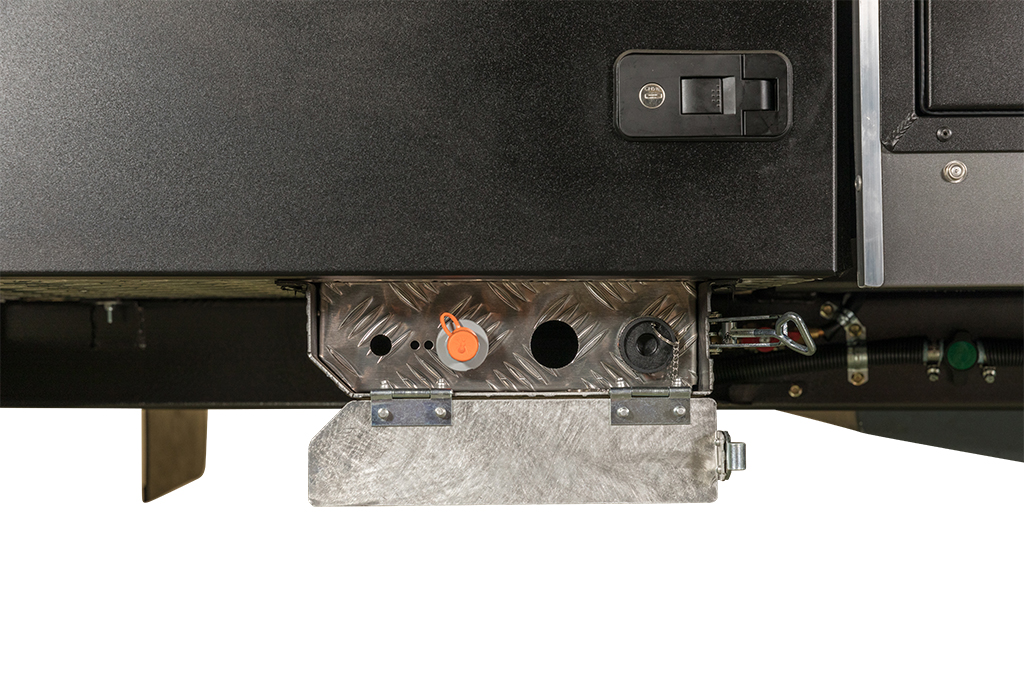

- Fridge Box DS Utilities (Additional Water Line to Kitchen)
- Fridge Box DS Utilities (Gas & Water)
- Smarttek Portable Hot Water & Shower Kit
- Smarttek Shower Tent
- Truma Hot Water & Shower Unit
- Water Tank Protector (80L)
- Water Tank Protector (100L)
TRAVEL OPTION PACKS
- Adventure Pack
- Off Grid Pack
- Technology Pack
- Xtreme Off Road Pack
MISCELLANEOUS
- RV Starter Pack
POPULAR OPTIONS
- 1/2 long Canvas wall with door
- 1/2 long Canvas wall with window
- 300Ah Lithium Battery Upgrade (5 Year Warranty)
- Ezy Awning
- Drawbar Extension Upgrade – 400mm
- Front Wall Canvas (with window)
- Rear Wall Canvas (with window)
- Redarc BMS 30 Upgrade
- Redarc RedVision Kit Upgrade
- Utility Rack Bike Bracket
- Utility Rack Spare Wheel Bracket
