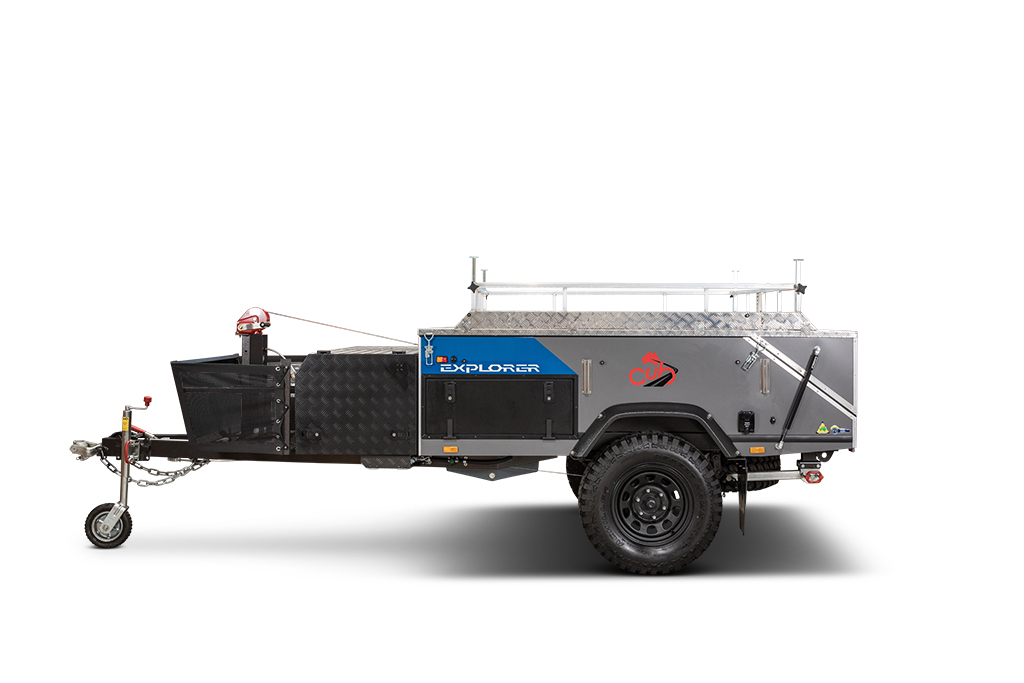

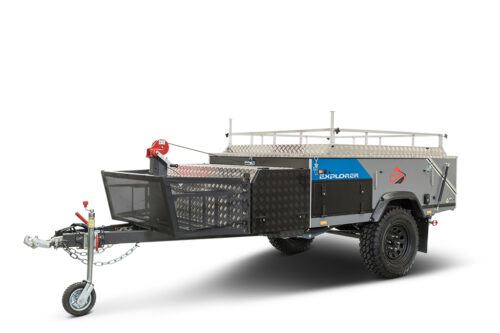

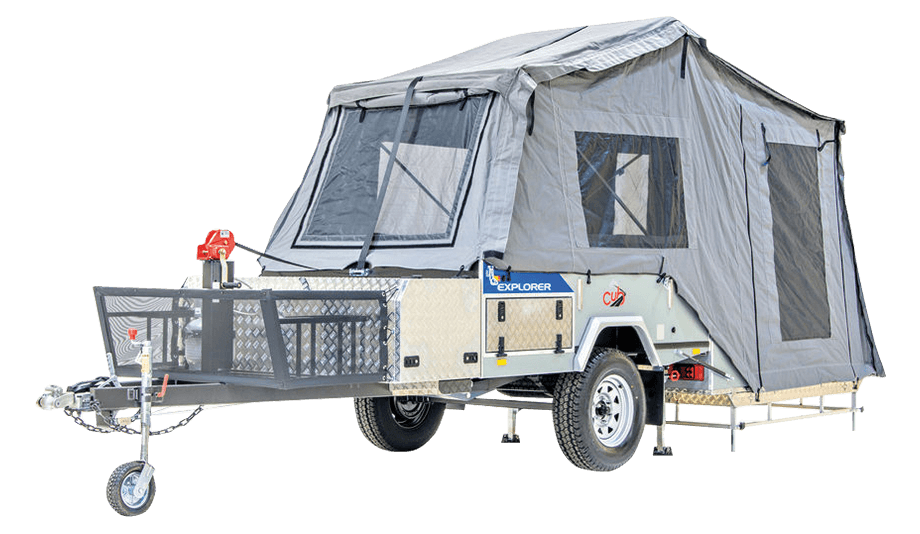

CUB EXPLORER – THE AFFORDABLE AUSSIE-MADE OFF-ROADER
The Explorer comes with a Smev 2-burner stove, sink and stainless steel pantry as standard, a full-width fridge box and silent winch.
Also features updated powder coated locker doors and graphics and galvanised all-Australian steel chassis.
With all Australian steel and canvas and full off-road warranty – wherever you want to go, in whatever conditions, the Explorer will take you there.
You can be budget conscious AND buy Australianmade! If you have been looking for an Australian-made off-road camper that suits your budget, the Explorer could be it.
KEY FEATURES
- AL-KO 6-leaf shackle spring suspension
- 10” Electric Brakes
- 100% Australian-made Tent using Wax Converters Dynaproof Canvas
- 235/75R15 Marshal AT 51 Tyres on 15″ Black Steel Wheels
- Light to tow
- Quick & Easy to Set Up (The Ezy-wind silent winch comes as standard)
- Rear Recovery Points x 2
- Fridge Box & Slide
- Under-bed Storage
- Monument Colorbond Panels
Build your own custom CUB
CALL US TODAY: 03 8727 6100
Standard Features & Specifications:
BODY SPECS
- Body Length 2.23M
- Body Width 1.70M
- Towing Height 1.62M
- Towing Length 4.35M
- Open Length Inc. Drawbar 6.58M
- Tare 770kg ‡
- Ball Weight 105Kg ‡
- ATM 1300kg

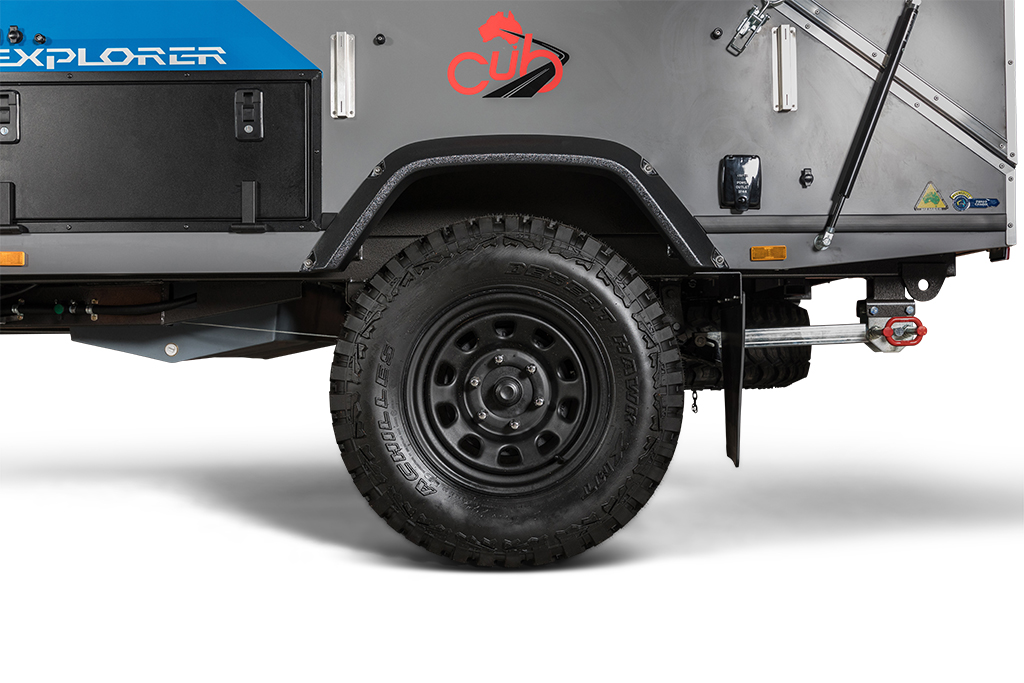

BRAKES & WHEELS
- AL-KO Square Axle: 45mm
- Brakes: 10” Electric

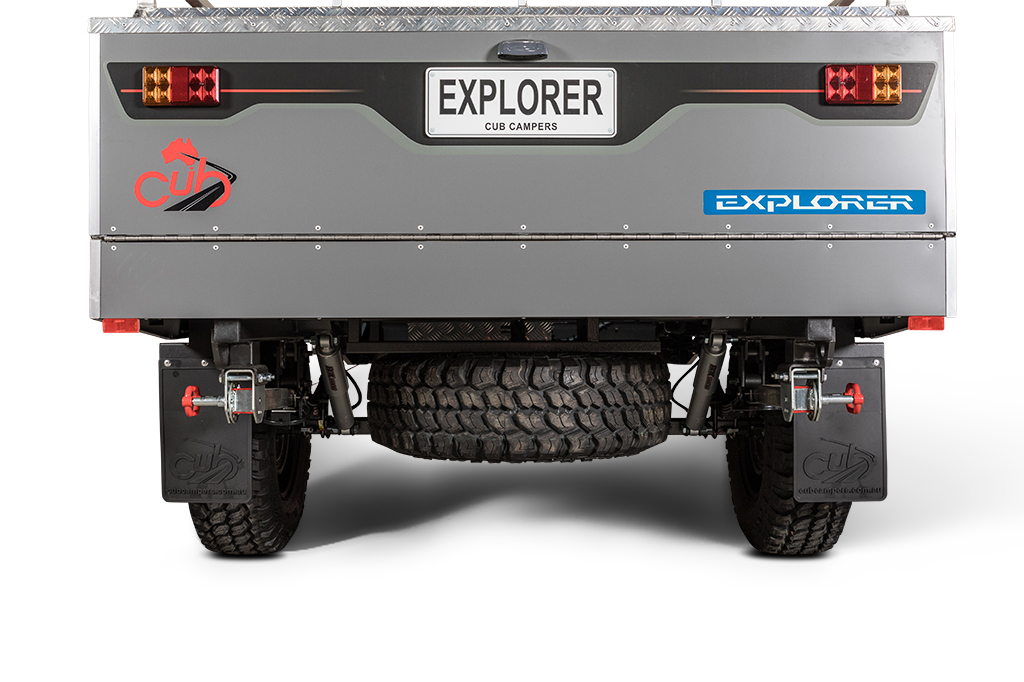

- Spare Wheel: Rear Wind Up (Steel)
- Tyres: 235/75R15 Marshal AT 51
- Wheel Type: 15 x 6 Black Steel (6/139.7 PCD)
CANVAS
- 100% Australian Made Tent Using Wax Converters Dynaproof Canvas: Grey
- Aluminium Awning Poles: Standard
- Deluxe Awning: Standard
- Internal Front Canvas Window & Zipper: Standard
- Bed Side Canvas Window Flaps & Midge-Proof Fly Screen: Standard

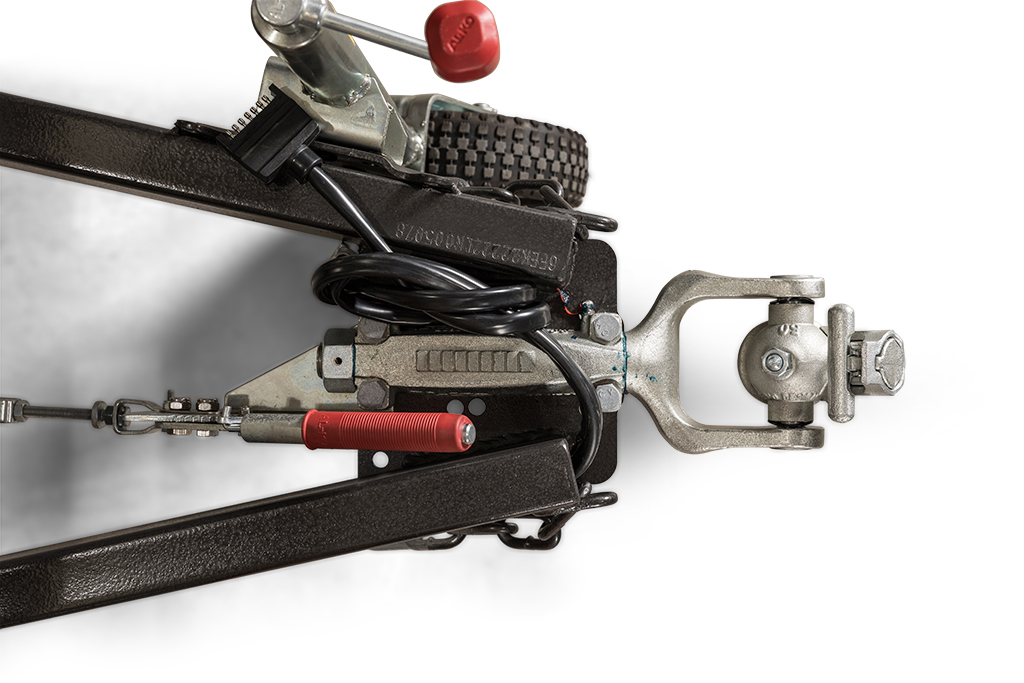

DRAWBAR

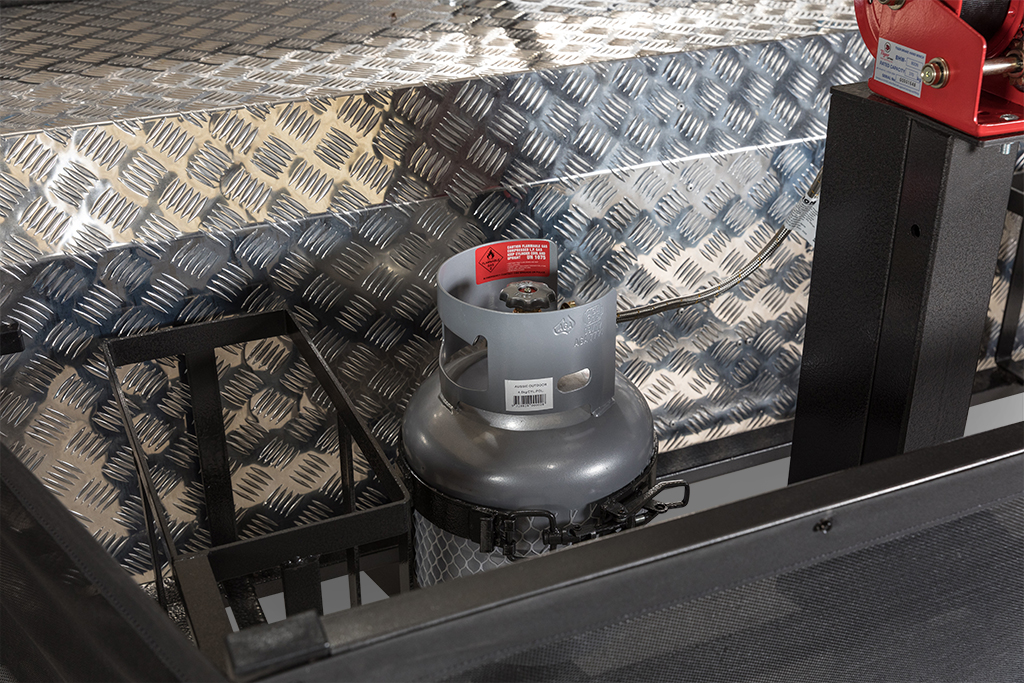

- 4kg Gas Bottle & Holder: 1
- 4kg Gas Bottle Holder Only 1
- Additional Clamp for AL-KO Jockey Wheel: Standard
- AL-KO Ball Hitch: 50mm Off Road
- AL-KO Jockey Wheel: 250mm
- Drawbar: 100 x 50 x 3.0mm

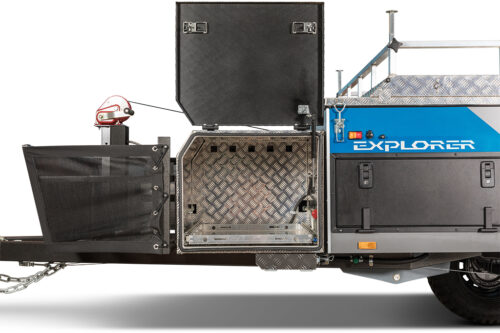

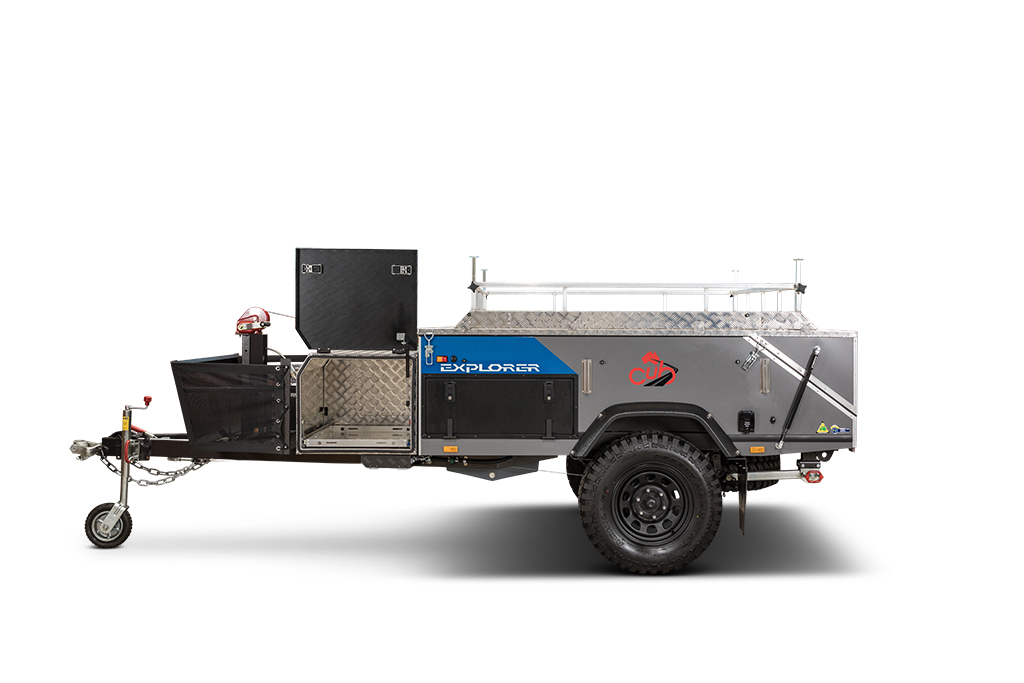

- Fridge Box and Slide: Standard
- Fridge Box Size: W=510mm L=715mm H=440mm
- Galvanised Steel Stoneguard: Standard
- Jerry Can Holder: 2

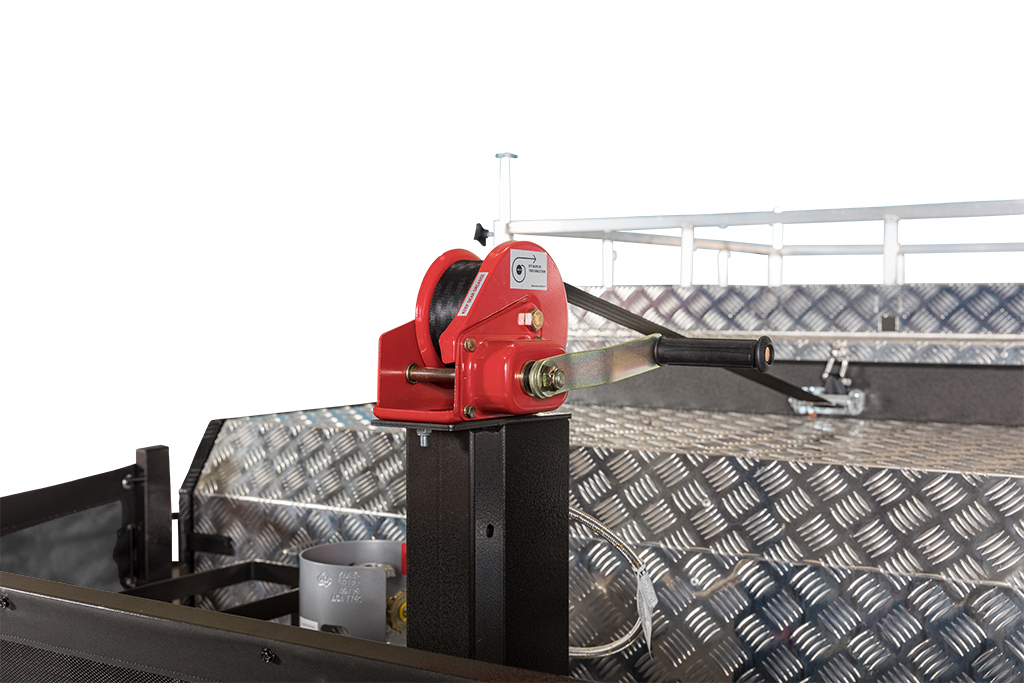

- Silent Winch: Standard
All models specification are subject to change.
‡ The tare and ball weights are a guide only and will change depending on drawbar layout and accessories fitted to your camper. Please discuss with a member of the Cub sales team prior to purchase.
Please note that all images displayed on this page are for illustrative purposes only and may include optional equipment and features.
Advertised price does not include delivery charges or on road costs.

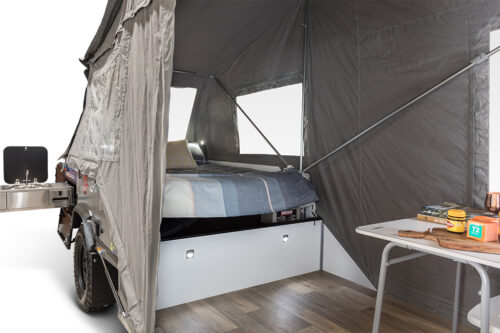

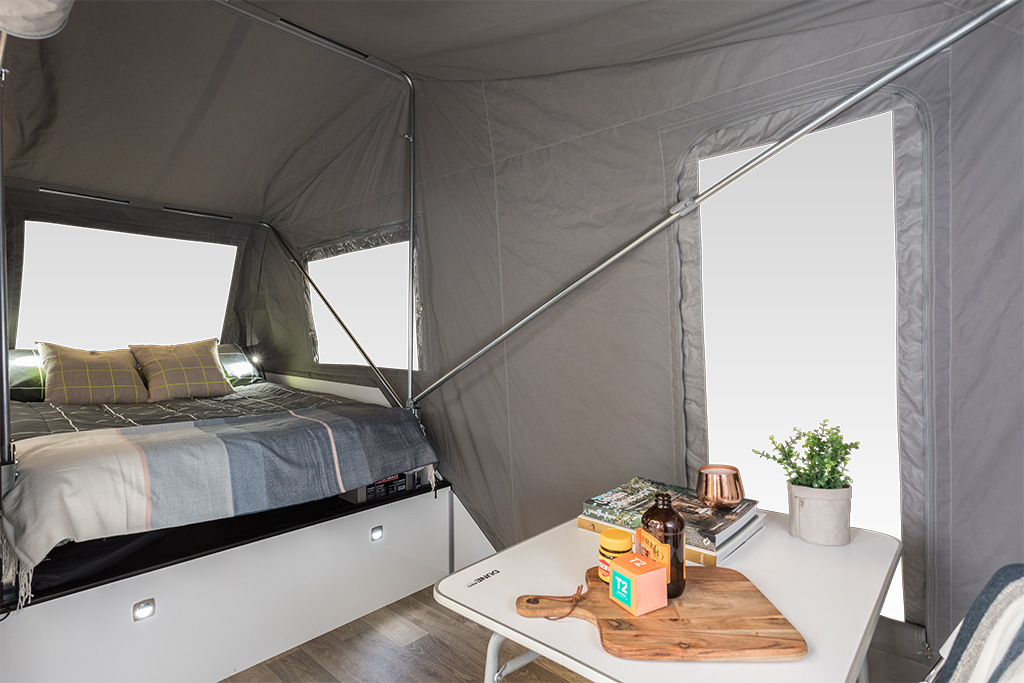

INSIDE FITTINGS

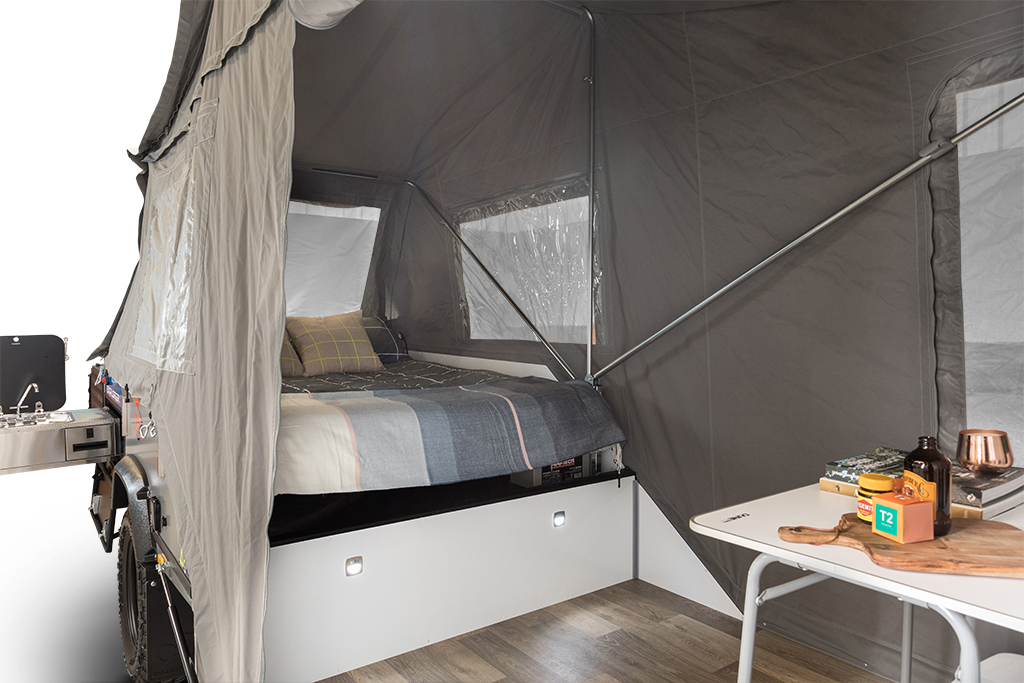

- Bed Size: 2130 x 1350 x 90mm
- Mattress: Medium Density Foam
- Under Bed Storage: Standard
OUTSIDE FITTINGS
- Alloy Roof Rack: Standard
- Roof Rack Stabiliser Legs Adjustment Length: 180mm
- Roof Tie Down Points: Standard

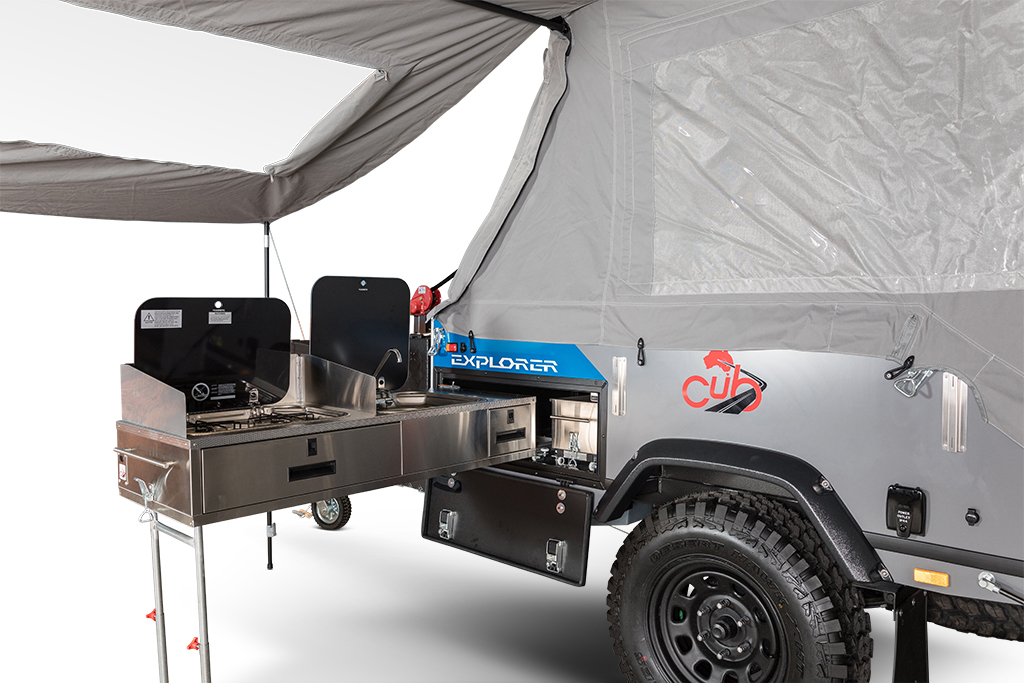

KITCHEN
- Drawers: 2
- Ezy-Clean Kitchen Top: Standard
- Mixer Tap: Standard
- Smev Stainless Steel Stove & Sink: 2 Burner
- Stainless Steel Pantry: Standard

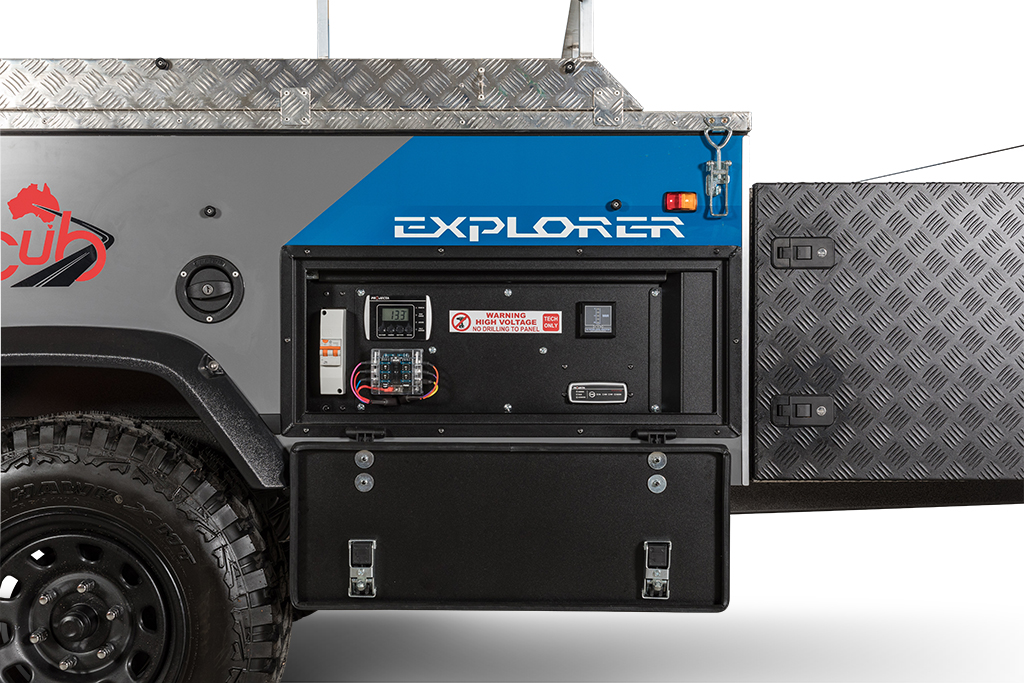

POWER, LIGHT & AIR
- 240V External Inlet (15A): Standard
- 240V External Outlet: Standard
- 240V Internal Double Outlet: Standard
- 100AH AGM Battery: 1
- Battery Charger IDC25X (12V): Standard
- 12V External Outlet (ACC): 2
- 12V Internal Outlet (ACC): 2
- 12V Master Isolation Switch: Standard
- 12V Resettable Fuse for Fridge: Standard
- LED Floor Lighting: Standard
- LED Strip Lights (ACC Plug) 1.2 Metre: Standard
- LED Sensor Lights – Underbed: Standard
- Solar Input (Anderson Plug) – Suits Unregulated Solar Panel: Standard
SUSPENSION & CHASSIS
- AL-KO Wind Down Legs: 2
- Australian Galvanised Steel Chassis: Standard
- Rear Recovery Points (2400kg Rating): Standard
- Shock Absorbers: Single
- Suspension: AL-KO 6 Leaf Shackle
WATER
- 12V Pump: 10 L/min
- Locking Water Filler: Standard
- Water Gauge: Standard
- Water Tank: 80L
Below are our most popular options which have been combined into Cub Travel Packs that feature added value for less outlay.
Alternatively if you only want one or two options these can be added individually.
Packages:
EXPLORER POWER PACK
- Battery Charger IC25RV (240V)
- LED Bedside Stalk Lights x 2
- Twin USB Ports x 2
ALL AVAILABLE OPTIONS
- Disc Brake Option – Off Road 10 Inch
CANVAS
- 1/2 Long Canvas Wall With Door
- 1/2 Long Canvas Wall With Window
- 1/2 Long Wall Mesh
- 1/2 Long Wall Mesh With Door
- Bedside Curtains
- Draught Skirt
- Ezy Awning
- Front Wall Canvas (With Window)
- Front Wall Mesh
- Rear Wall Canvas (With Window)
- Rear Wall Mesh
- Thermal Blanket
DRAWBAR
- 4kg Gas Bottle
- Cruisemaster D035 Coupling Upgrade
- Stonestopper Mud Flaps
INSIDE FITTINGS
- Innerspring Mattress Upgrade
KITCHEN & GAS
- Brumby Kitchen Upgrade
- Extra Gas Bayonet (PS Utilities Only)
- Stainless Steel Side Shelf
OUTSIDE FITTINGS
- Pole Carrier
- Rear Utility Rack
POWER, LIGHT & AIR
- 100Ah Lithium Battery Upgrade
- 300Ah Lithium Battery Upgrade
- Battery Charger IC25RV (240V)
- LED Strip Lights (ACC Plug) 3.7 Metre
- Solar Panel – 180W Projecta Fold Up Kit
- TV Coaxial Outlet
WATER
- Fridge Box DS Utilities (Gas & Water)
- Hand Pump On Drawbar
- Smarttek Hot Water & Shower Kit
- Smarttek Shower Tent
TRAVEL OPTION PACKS
- Power Pack
POPULAR OPTIONS
- 1/2 Long Canvas Wall with Door
- 1/2 Long Canvas Wall with Window
- 100Ah Lithium Battery Upgrade
- Battery Charger IC25RV (240V)
- Draught Skirt
- Front Wall Canvas (with Window)
- Innerspring Mattress Upgrade
- Pole Carrier
- Rear Wall Canvas (with Window)
- Stainless Steel Side Shelf
