CUB Scout

CUB Scout

$36,500.00 inc. GST

Short Description

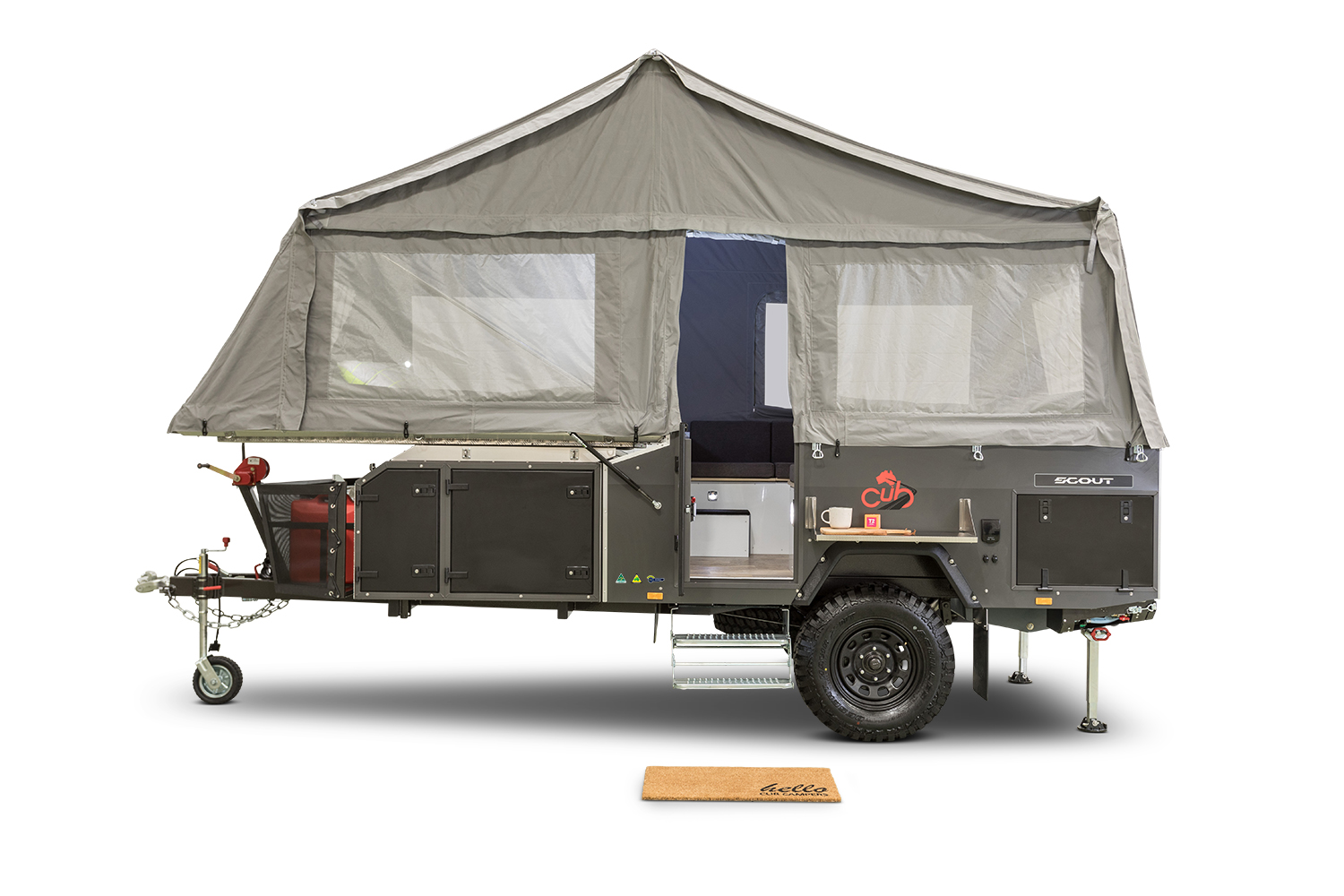

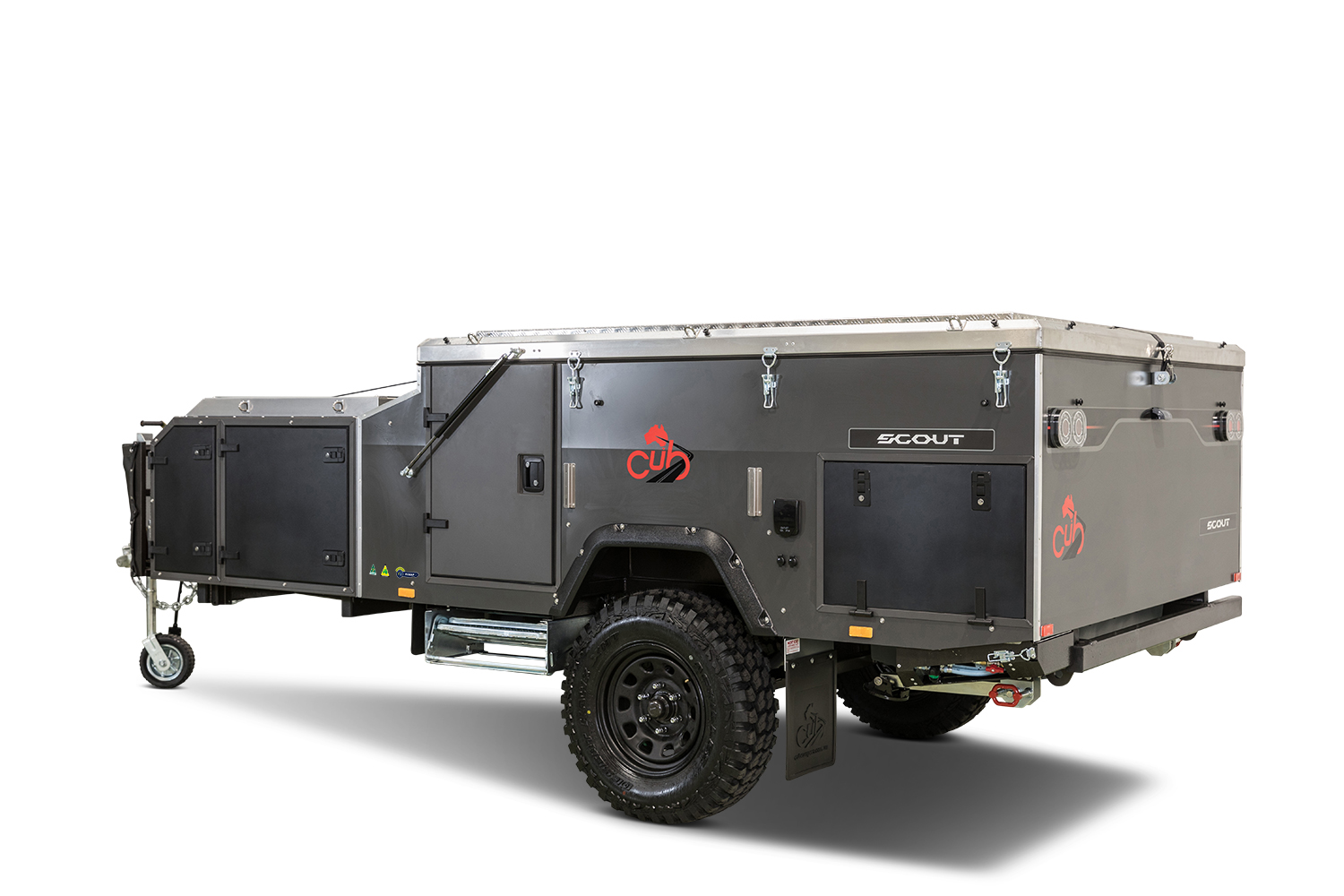

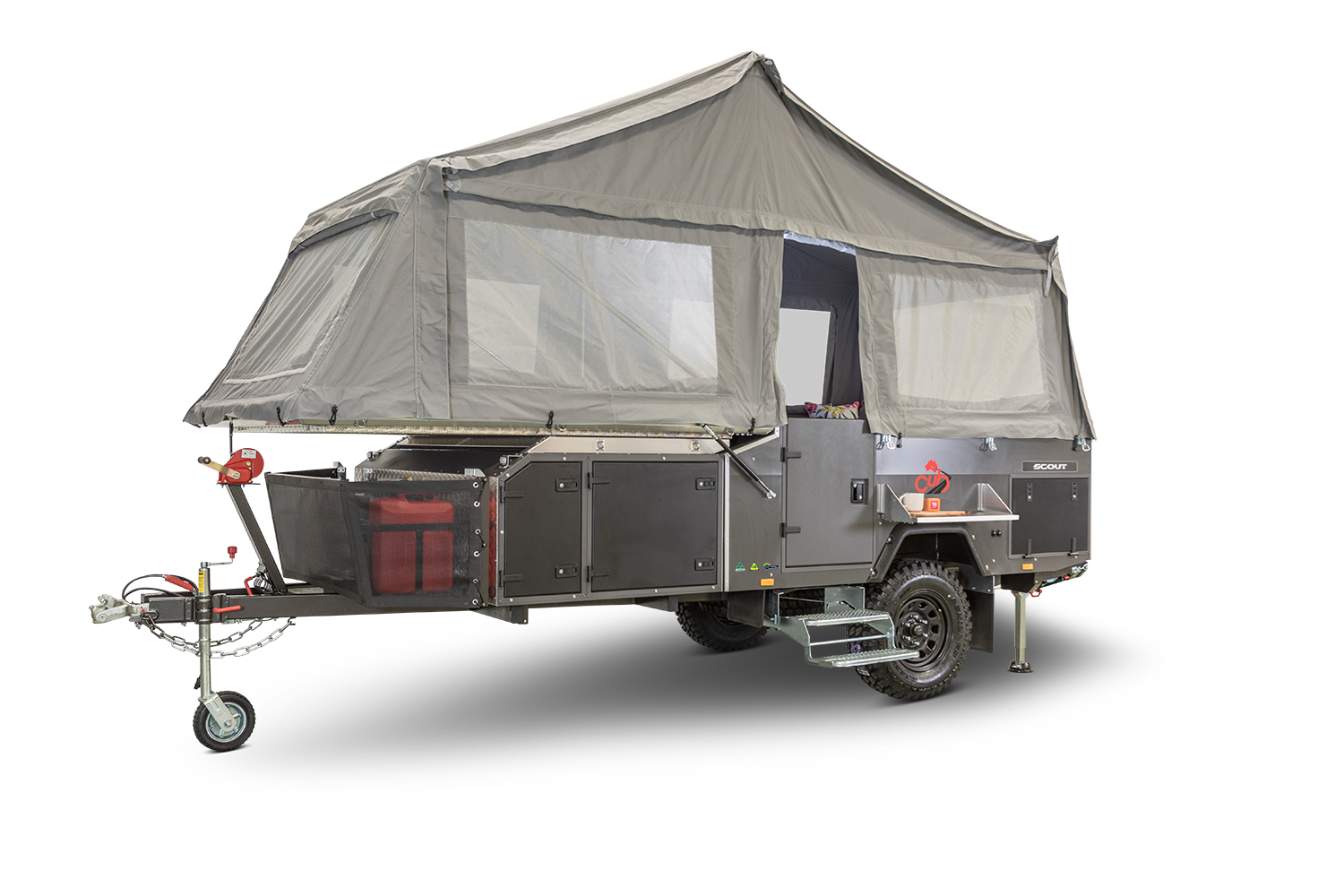

SCOUT – LIGHTWEIGHT FORWARD FOLD OFF ROADER

The Cub Scout is one of the lightest forward fold camper trailers on the market and the perfect camper for those looking to get a 100% Australian Made forward fold off roader with all the essentials. With an AL-KO 8 Leaf shackle spring suspension, it’s tough enough to tackle harsh terrains and rugged roads, but it’s lightweight enough to be towed by most small-medium SUVs.

SKU: cub-scout Categories: , Tags: ,
Share on:

SCOUT – LIGHTWEIGHT FORWARD FOLD OFF ROADER

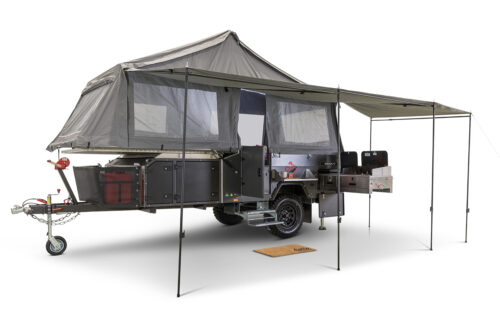

The Cub Scout is one of the lightest forward fold camper trailers on the market and the perfect camper for those looking to get a 100% Australian Made forward fold off roader with all the essentials. With an AL-KO 8 Leaf shackle spring suspension, it’s tough enough to tackle harsh terrains and rugged roads, but it’s lightweight enough to be towed by most small-medium SUVs. This makes the Scout an ideal camper for those beach and caravan park holidays for the more casual camper, or the off-grid bush getaway for the more seasoned adventurer. As a forward fold, the Scout has a small footprint and was built using the unique Cub design, making it lightning-fast to set up, requiring only one person.

*Note: The information in the attached video is a guide only and specs/features are subject to change.

KEY FEATURES

  • Extremely light ball weight – perfect for small/medium SUVs
  • Quick & Easy to Set Up (The Ezy-wind silent winch comes as standard)
  • AL-KO 8 Leaf Spring Shackle Suspension
  • 10” Electric Brakes
  • 15” Black Steel Wheels
  • Extra Long 1400mm Pantry
  • 4kg Gas Bottle & Holder x 1
  • 12V DC-DC Charger
  • LED Lights (internal)
  • Large Fridge Box & Slide with storage box

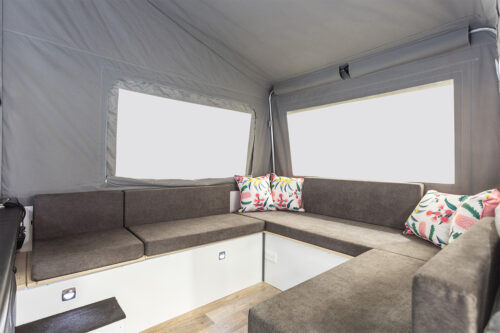

  • Manisa Fabric Lounge in “Charcoal”
  • Locker box with cushion

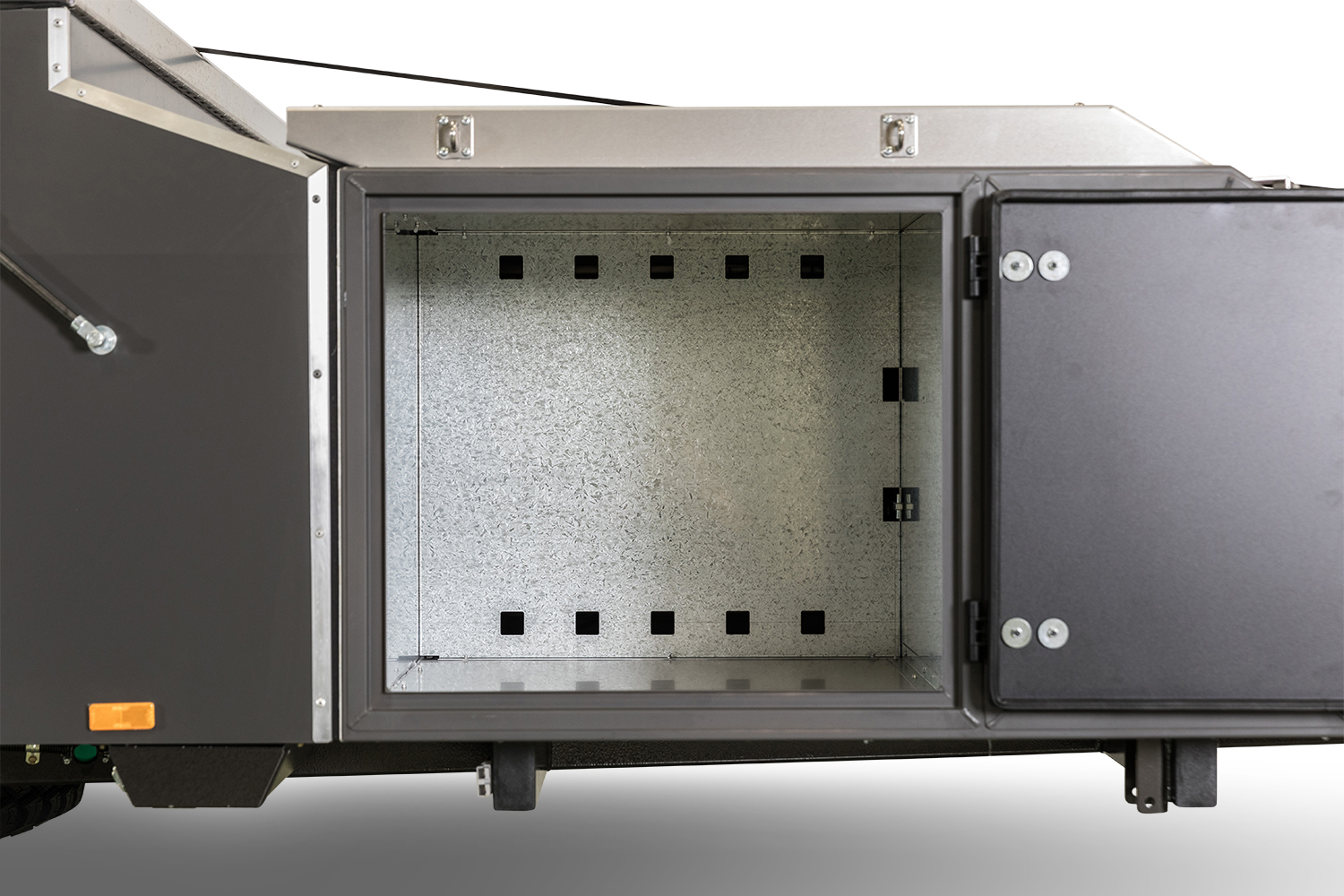

  • LED Sensor Lights in Storage Compartments

STANDARD INCLUSIONS

  • 10″ Electric Brakes
  • 12V master Isolation Switch
  • 12V Pump
  • 100L Water Tank
  • Extended Ezy Awning
  • External Outlet 240V
  • Internal Double Outlet 240V
  • LED Strip Light (Merit Plug) 1.2 Metre
  • Mains Pressure on Kitchen
  • Medium Density Foam Queen-Size Mattress
  • Mud Terrain Tyres
  • Projecta IDC25 (12V) Battery Charger

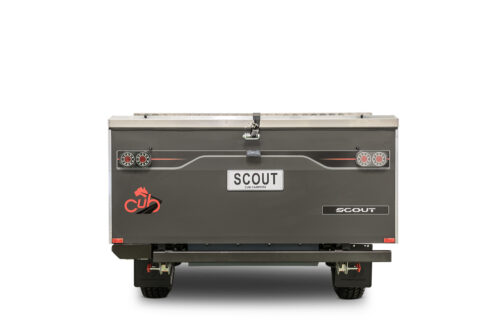

  • Rear Mounted Spare Wheel
  • Rear Utility Rack
  • Shock Absorbers (Set)
  • Water Gauge

TARE: 1113kgs

BALL WEIGHT: 120kgs

UP TO 4 PEOPLE

Build your own custom CUB

CALL US TODAY: 03 8727 6100

Standard Features & Specifications:

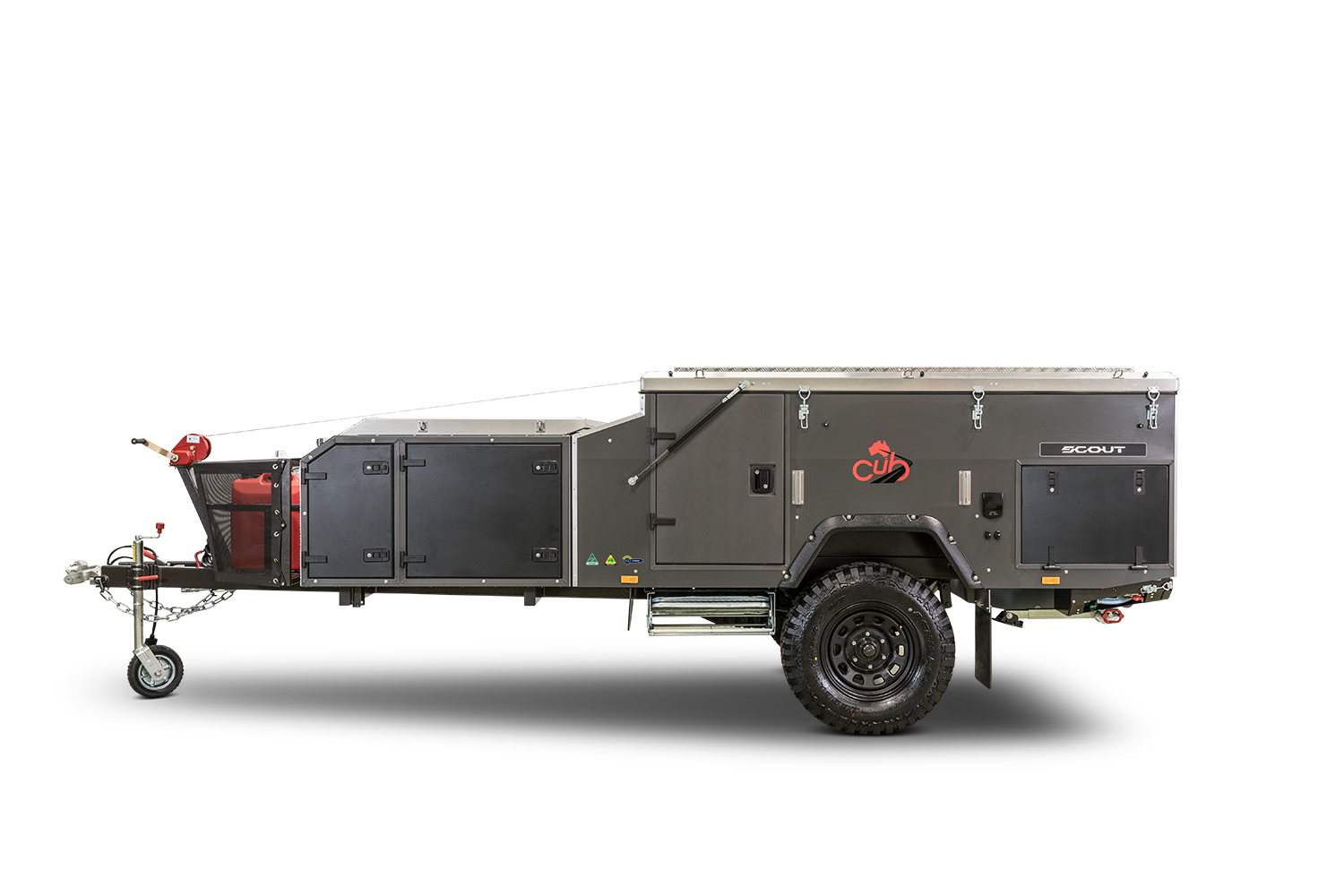

BODY SPECS

  • Body Length 3.68M
  • Body Width 1.95M
  • Towing Height 1.56M
  • Towing Length 5.58M
  • Open Length Inc. Draw Bar 5.58M
  • Tare 1113kg ‡
  • Ball Weight 120kg ‡
  • ATM 1500kg

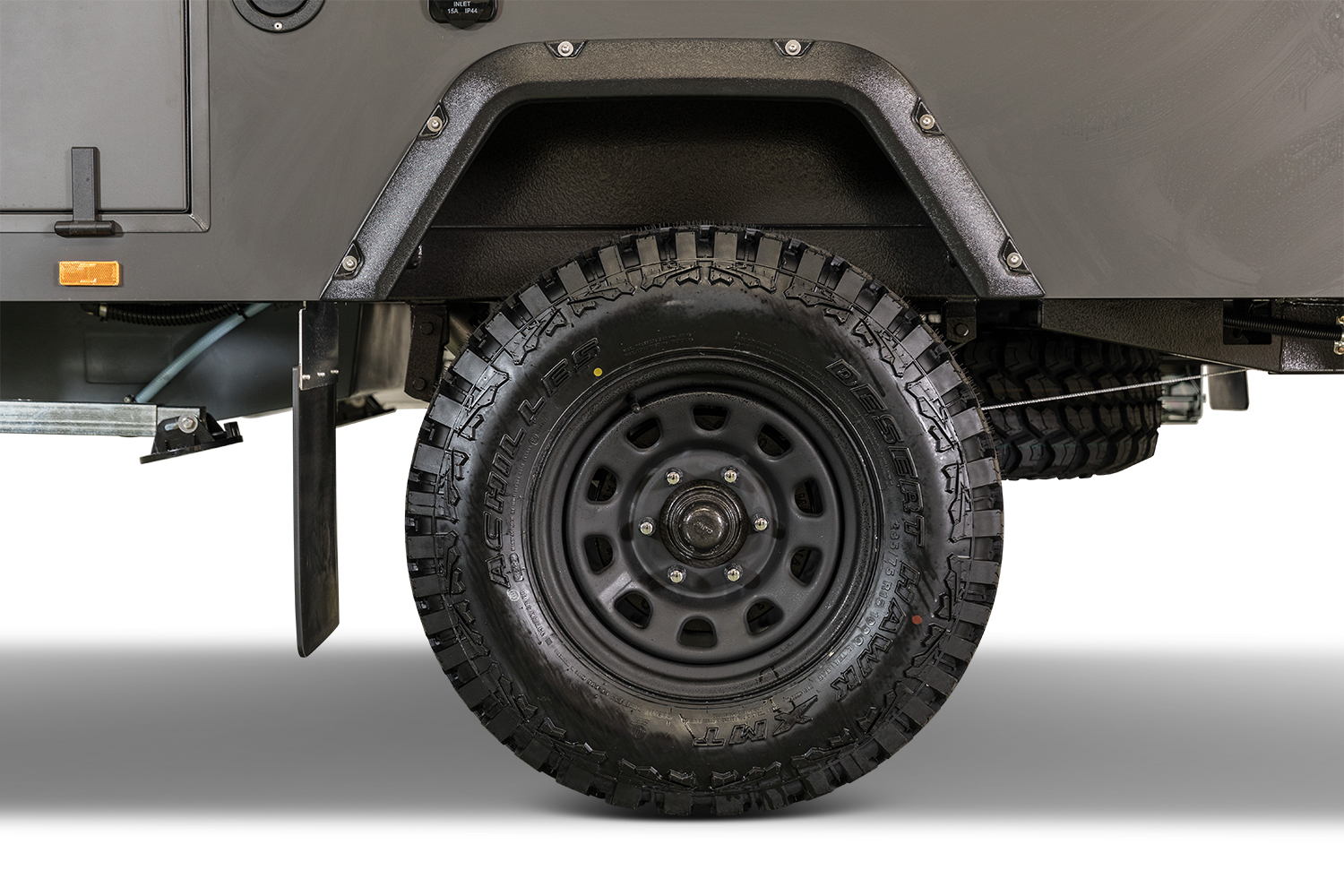

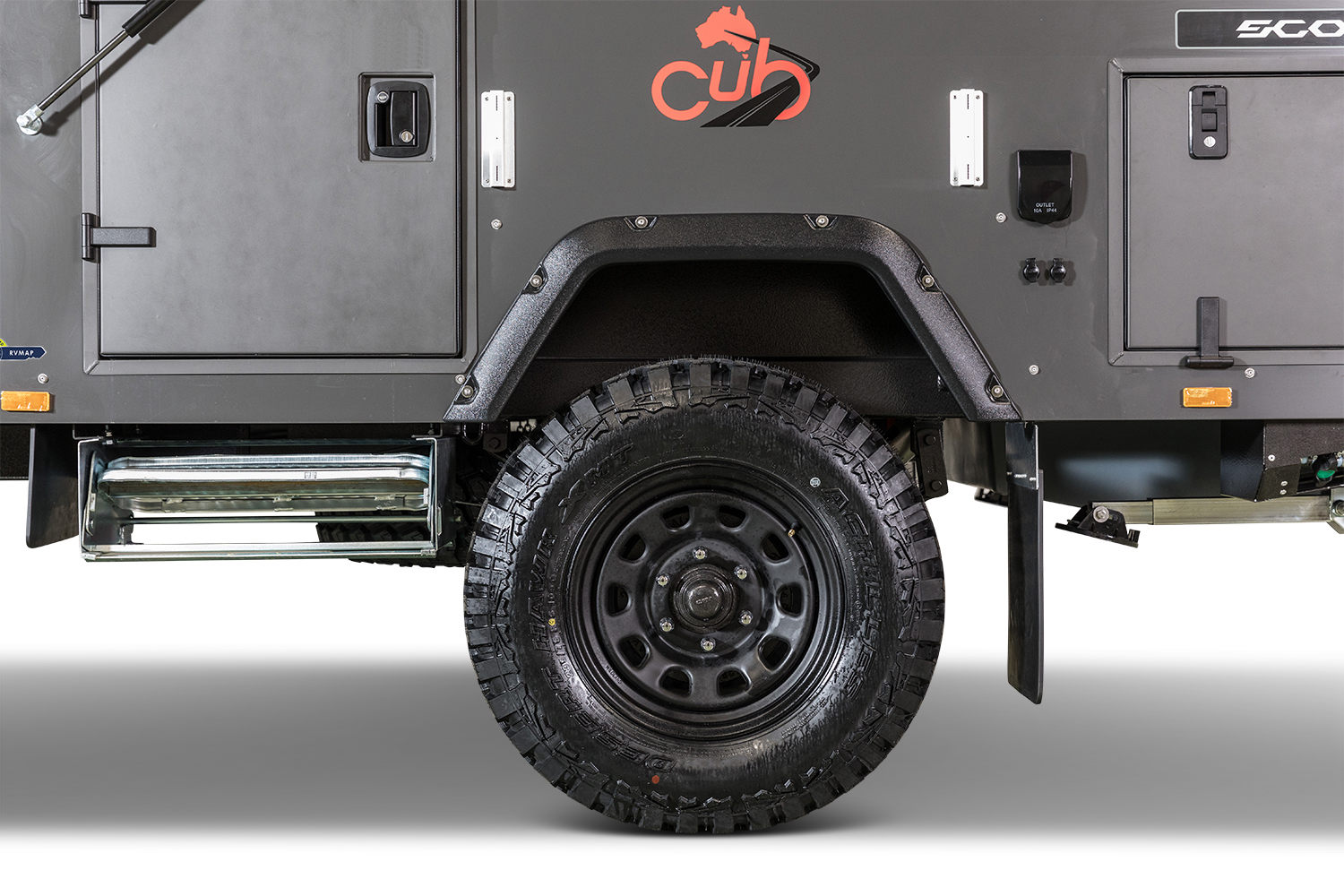

BRAKES & WHEELS

  • AL-KO 50mm Square Axle (50mm) with 10″ Electric Brakes: Standard
  • Spare Wheel: Rear Mounted
  • Tyres: Mud Terrain
  • Wheel Type: 15” Black Steel

CANVAS

  • 100% Australian Made Tent Using Wax Converters Dynaproof Canvas: Grey
  • Aluminium Awning Poles: Standard

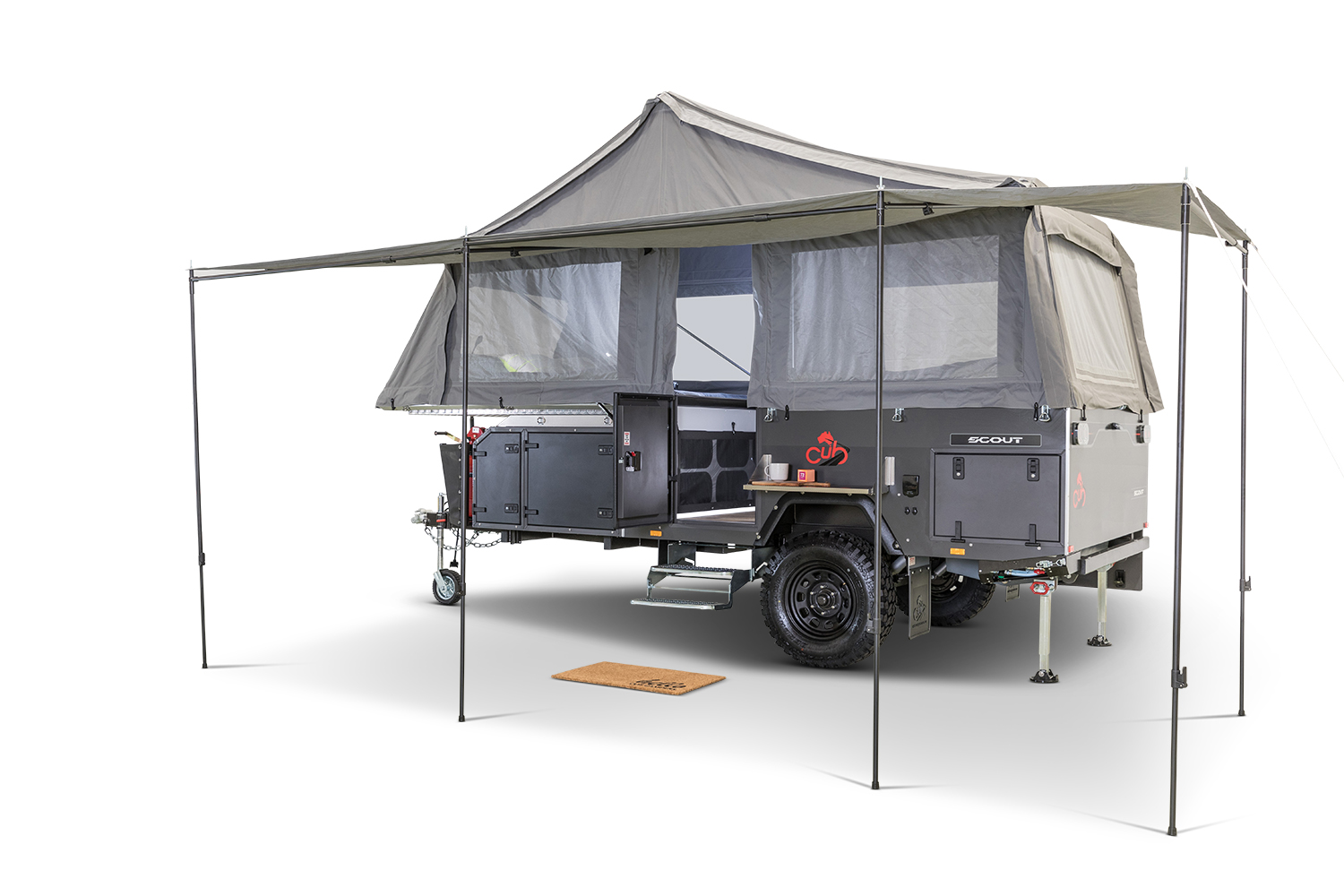

  • Extended Ezy Awning: Standard
  • Sewn in Canvas Window Flaps & Midge-Proof Fly Screen: Standard
  • Internal Canvas Flap: Bed End Window

DRAWBAR

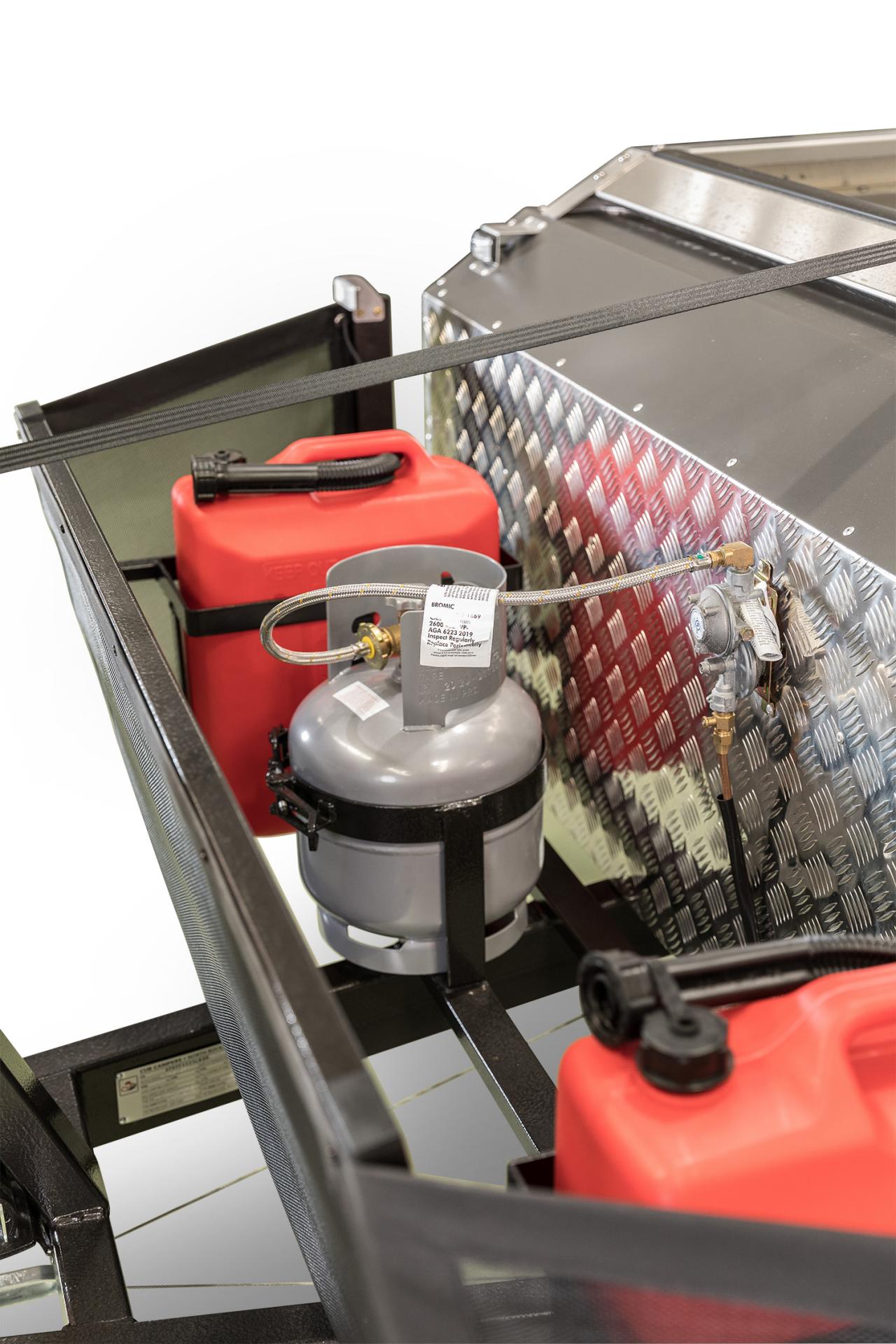

  • 4kg Gas Bottle & Holder: 1
  • AL-KO Jockey Wheel: 250mm
  • Additional Clamp for AL-KO Jockey Wheel: Standard
  • Ball Hitch: 50mm Off Road
  • Drawbar: 100x50x4.0mm

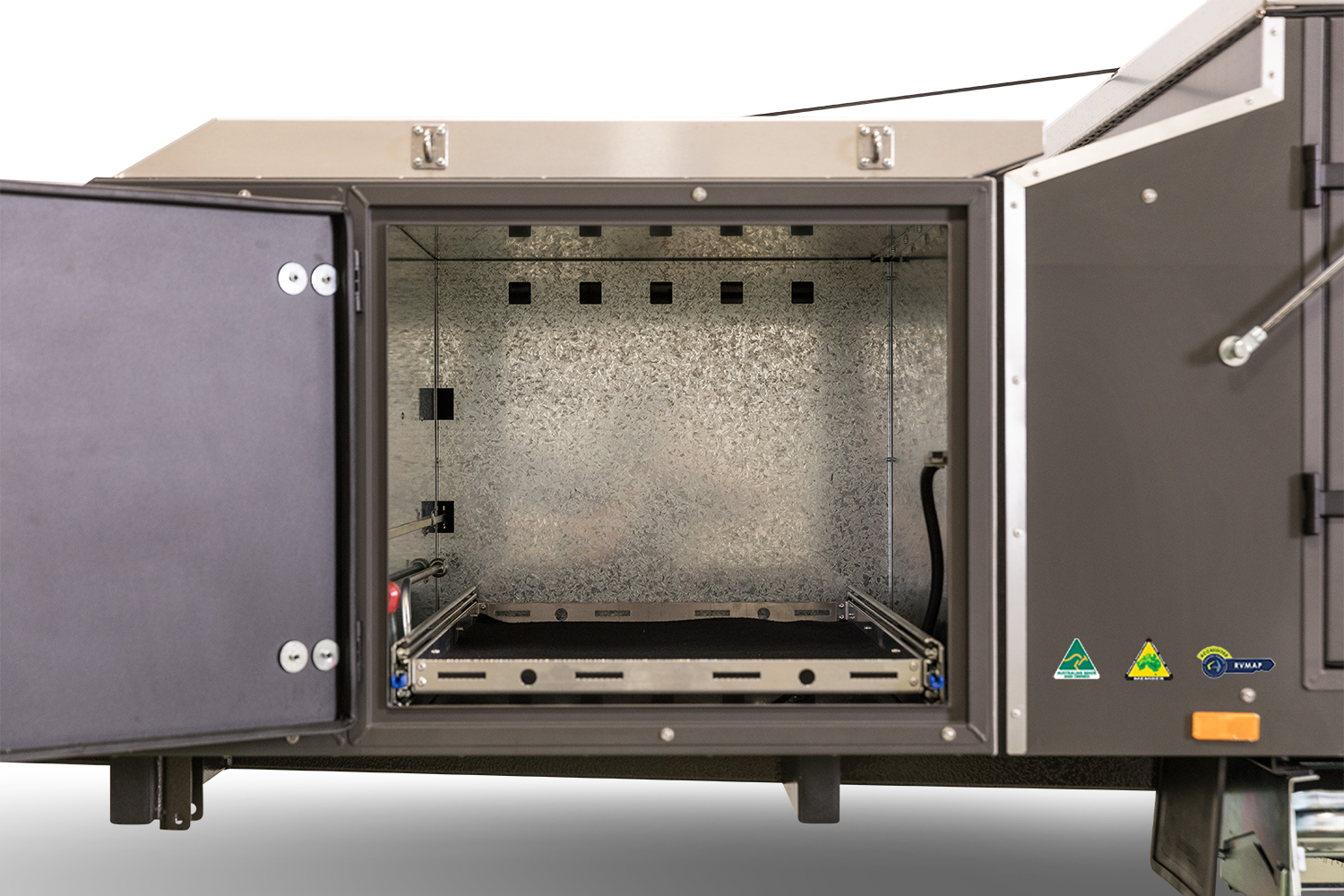

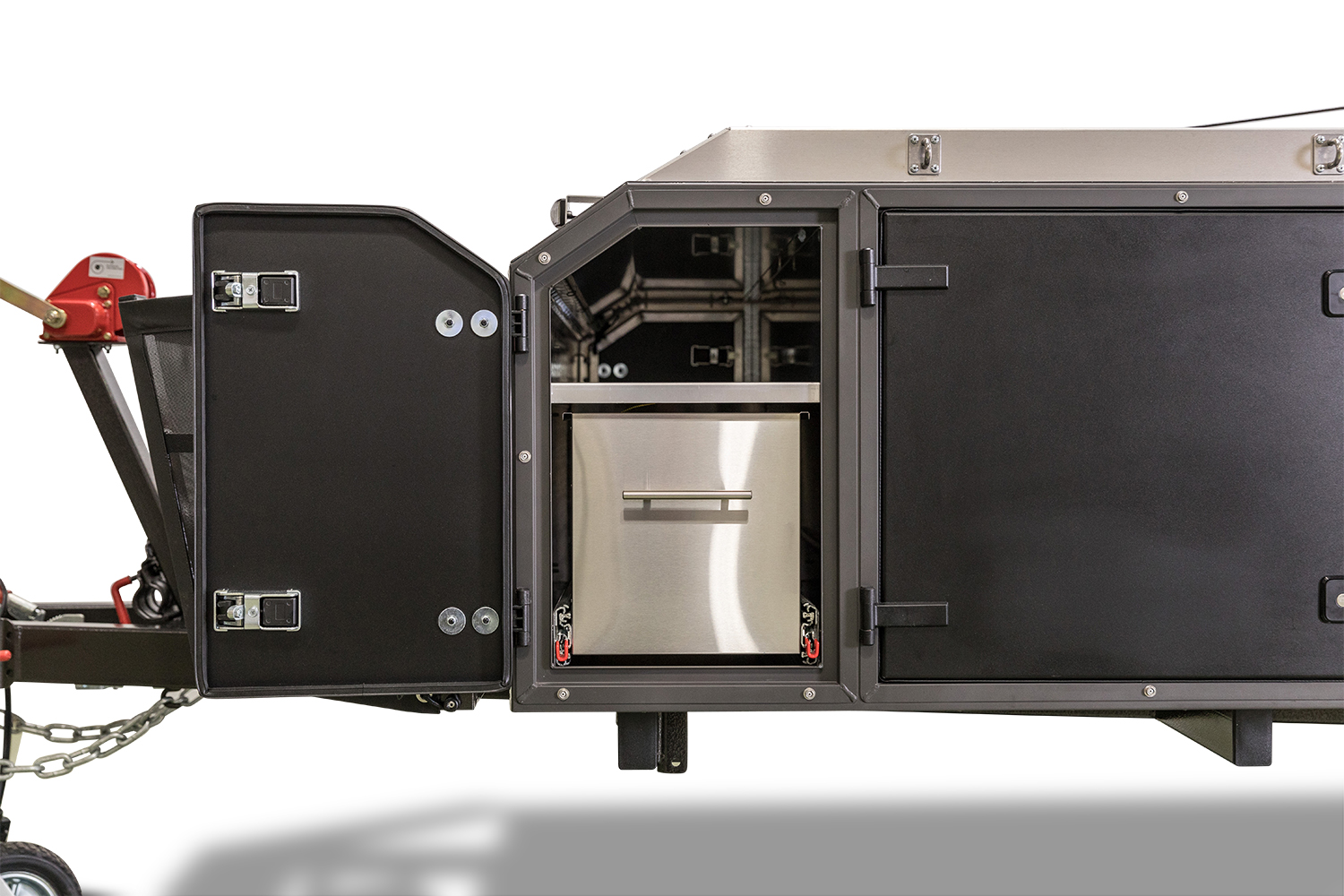

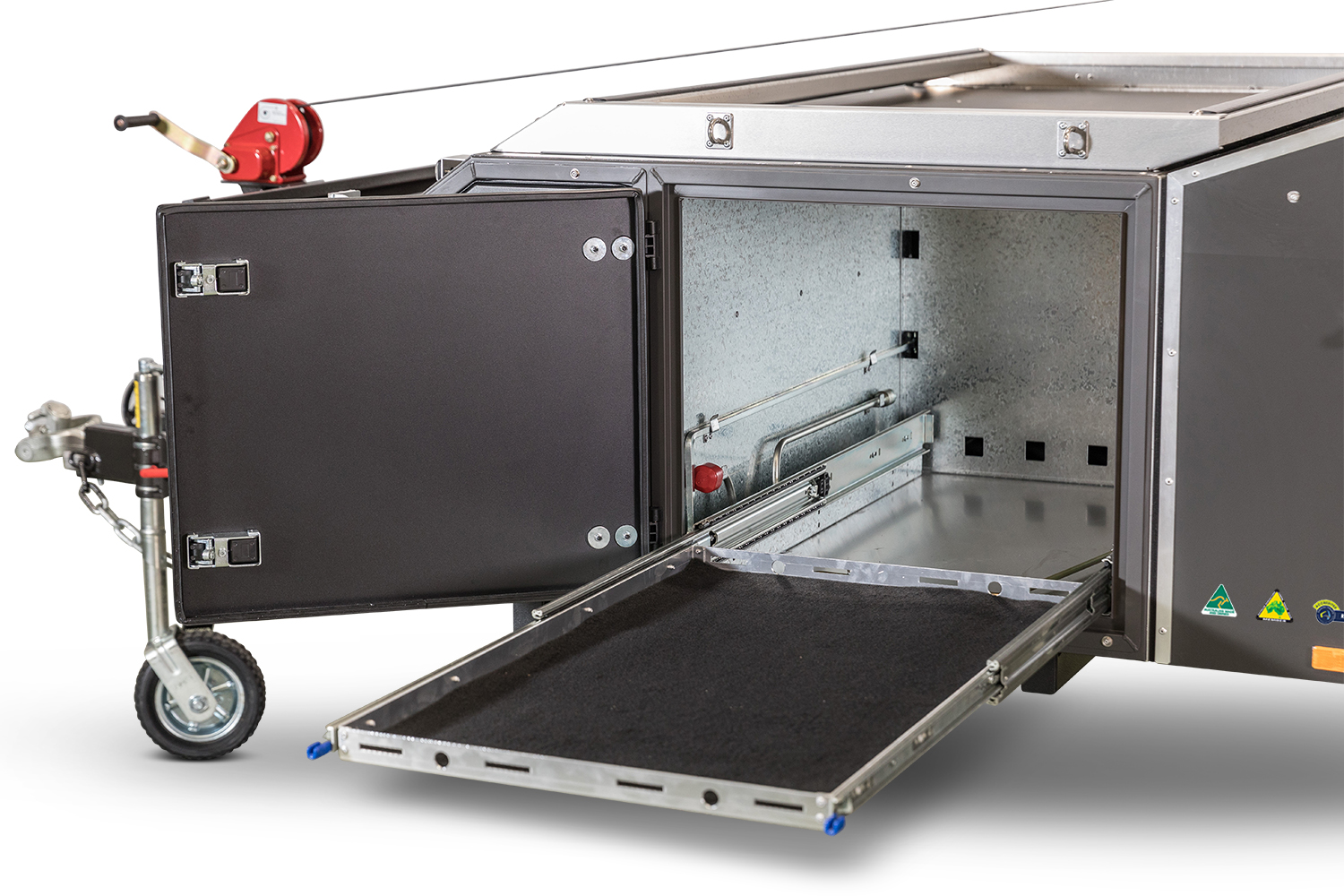

  • Fridge Box Size: W=560mm L=930mm H=515mm
  • Fridge Box and Slide (Suits up to 110 litre Evakool): Standard
  • Galvanised Steel Stoneguard: Standard
  • Jerry Can Holder: 2
  • Silent Winch: Standard

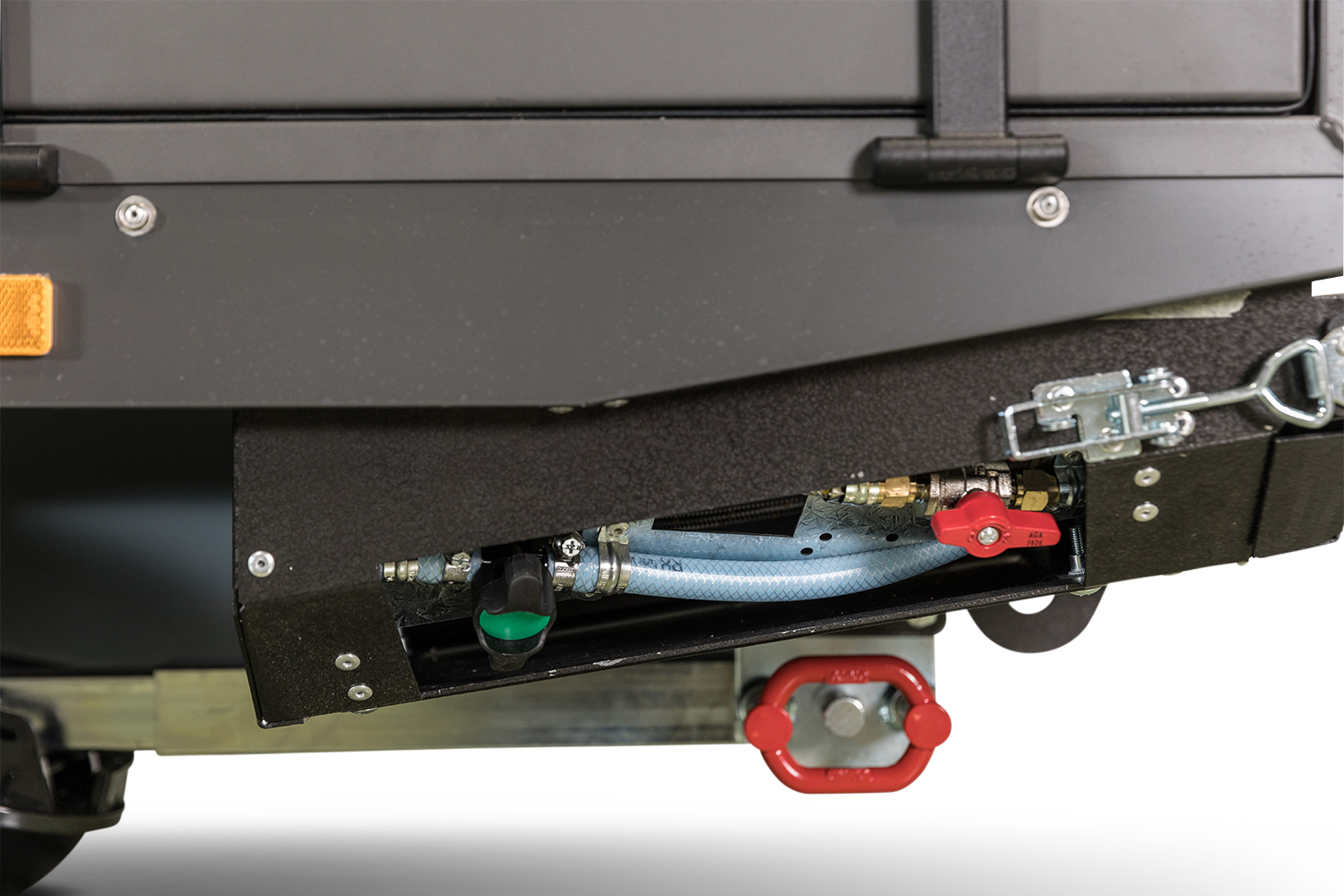

WATER

  • 12V Pump: 10 L/min
  • Locking Water Filler: Standard
  • Water Guage: Standard
  • Water Tank: 100L

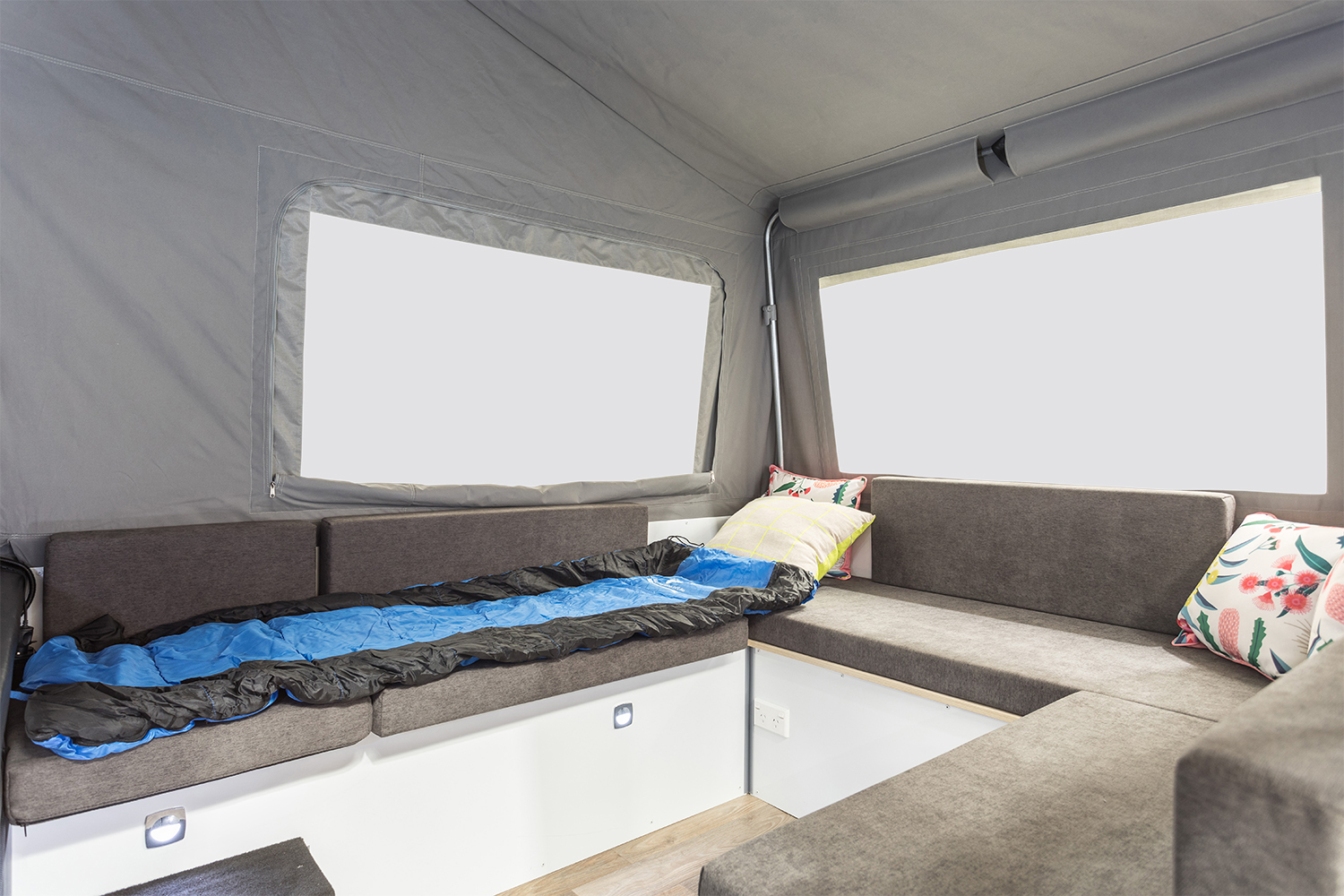

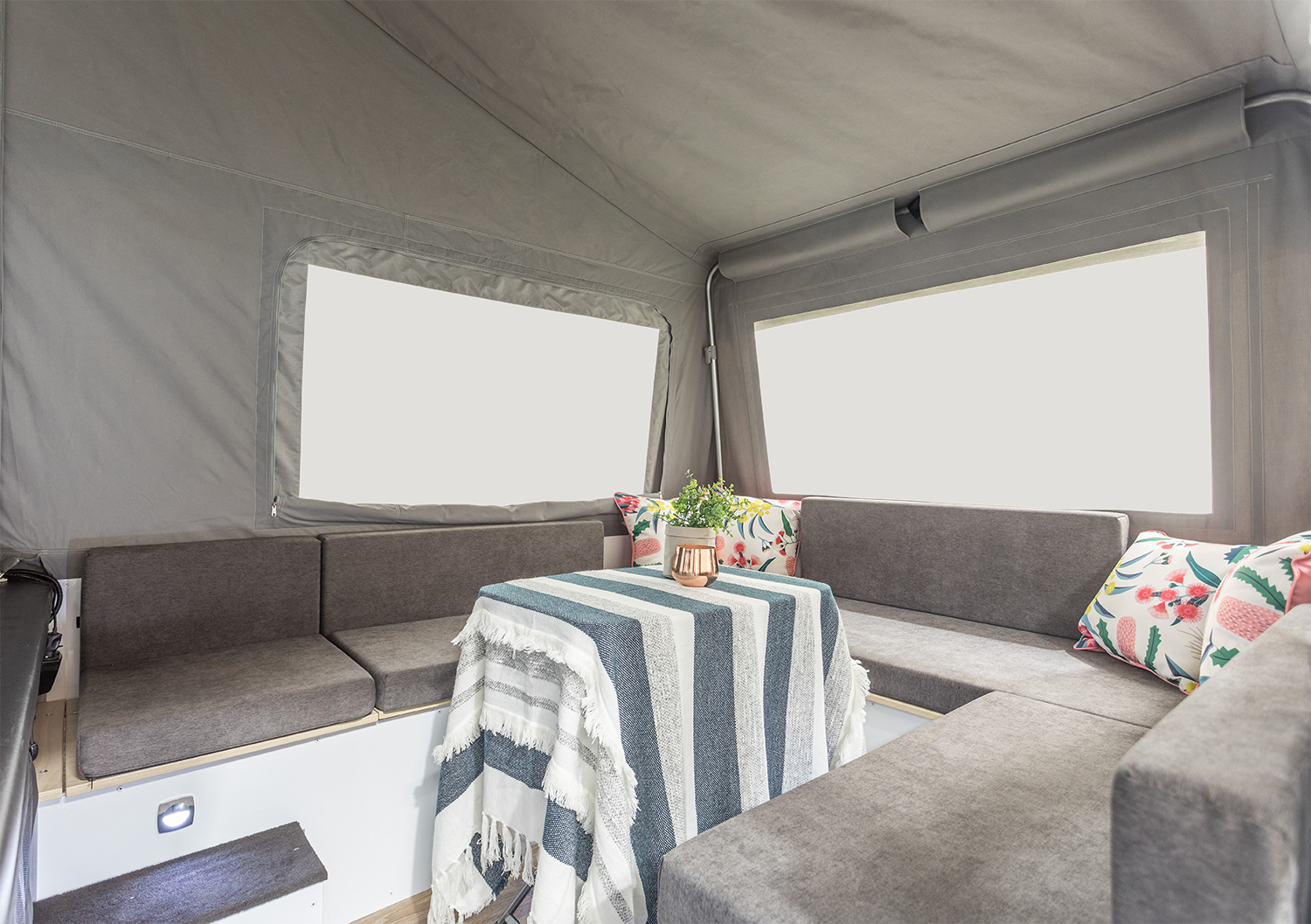

INSIDE FITTINGS

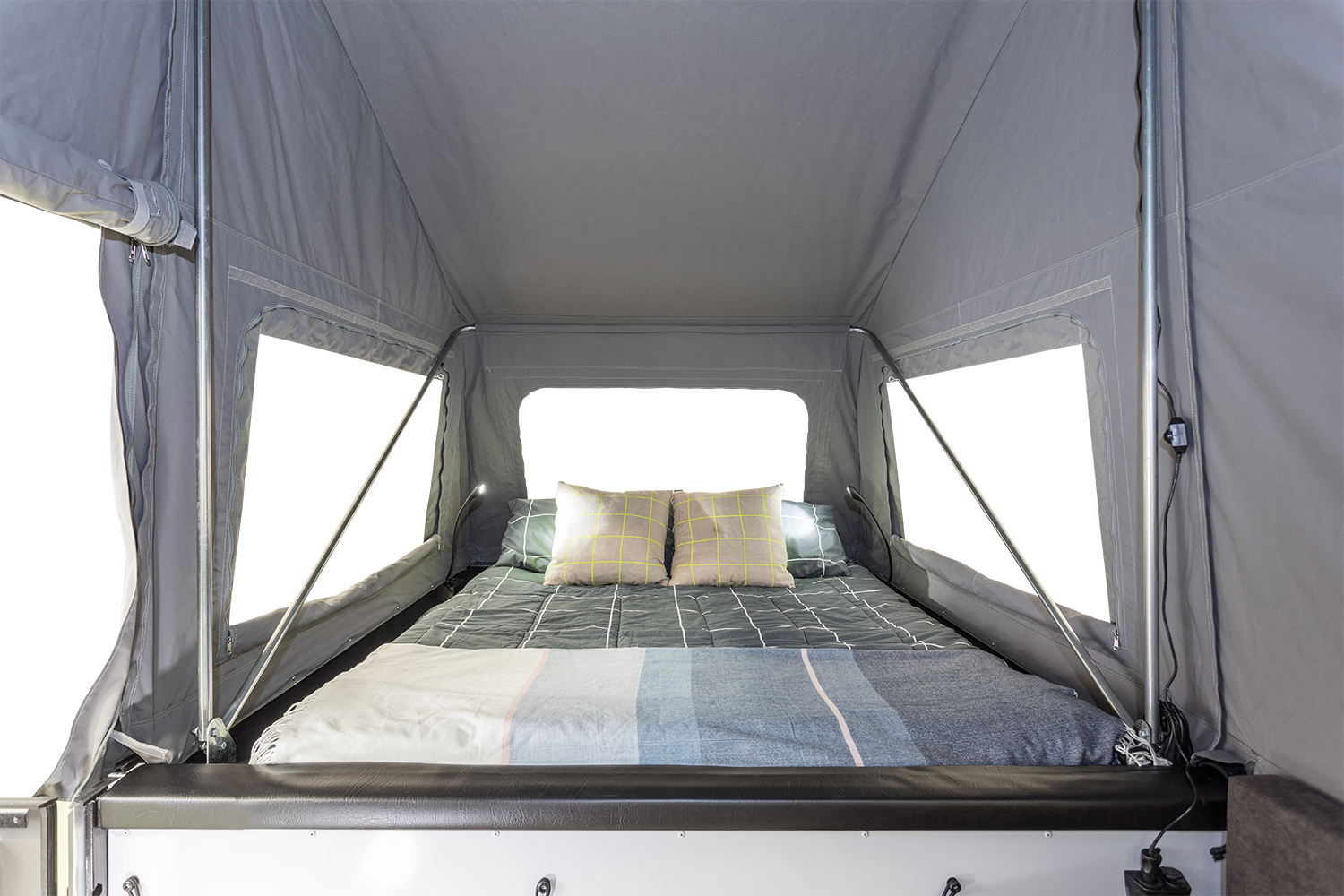

  • Bed Size: 1960 x 1500
  • Mattress: Medium Density Foam
  • Seat Cushions: Manisa Fabric – Liquorice

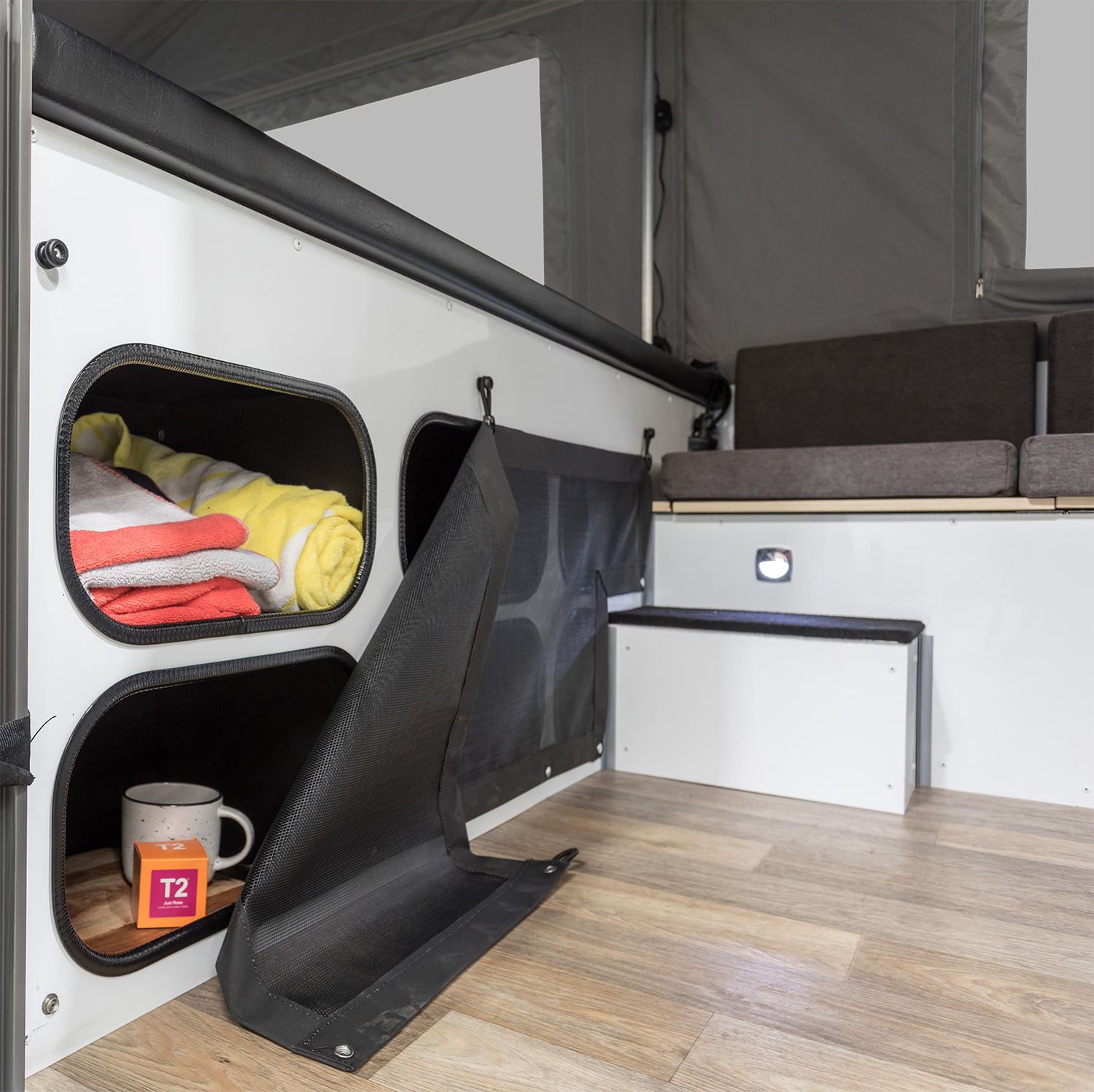

  • Under Bed Storage: Standard
  • Under Seat Storage: Standard

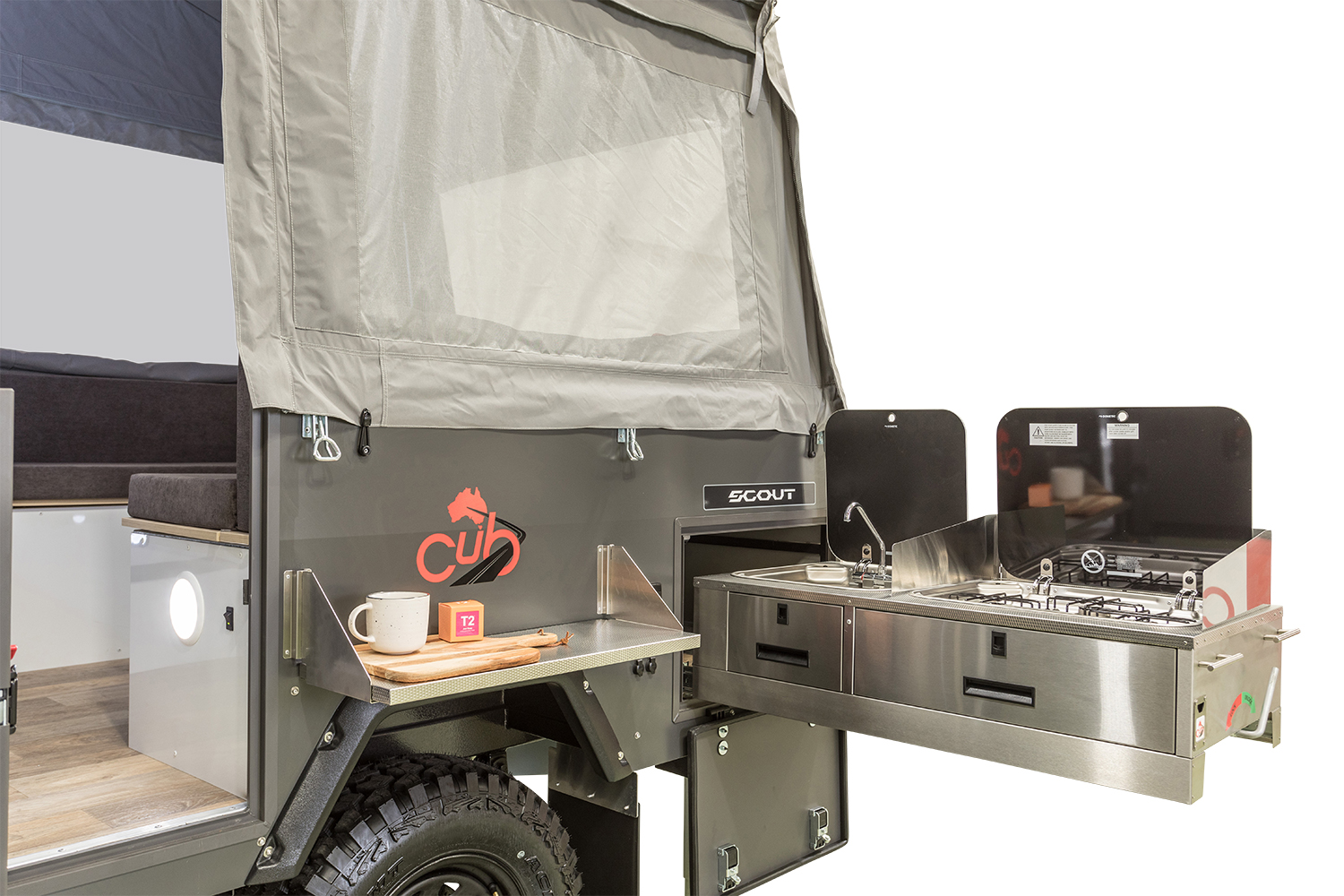

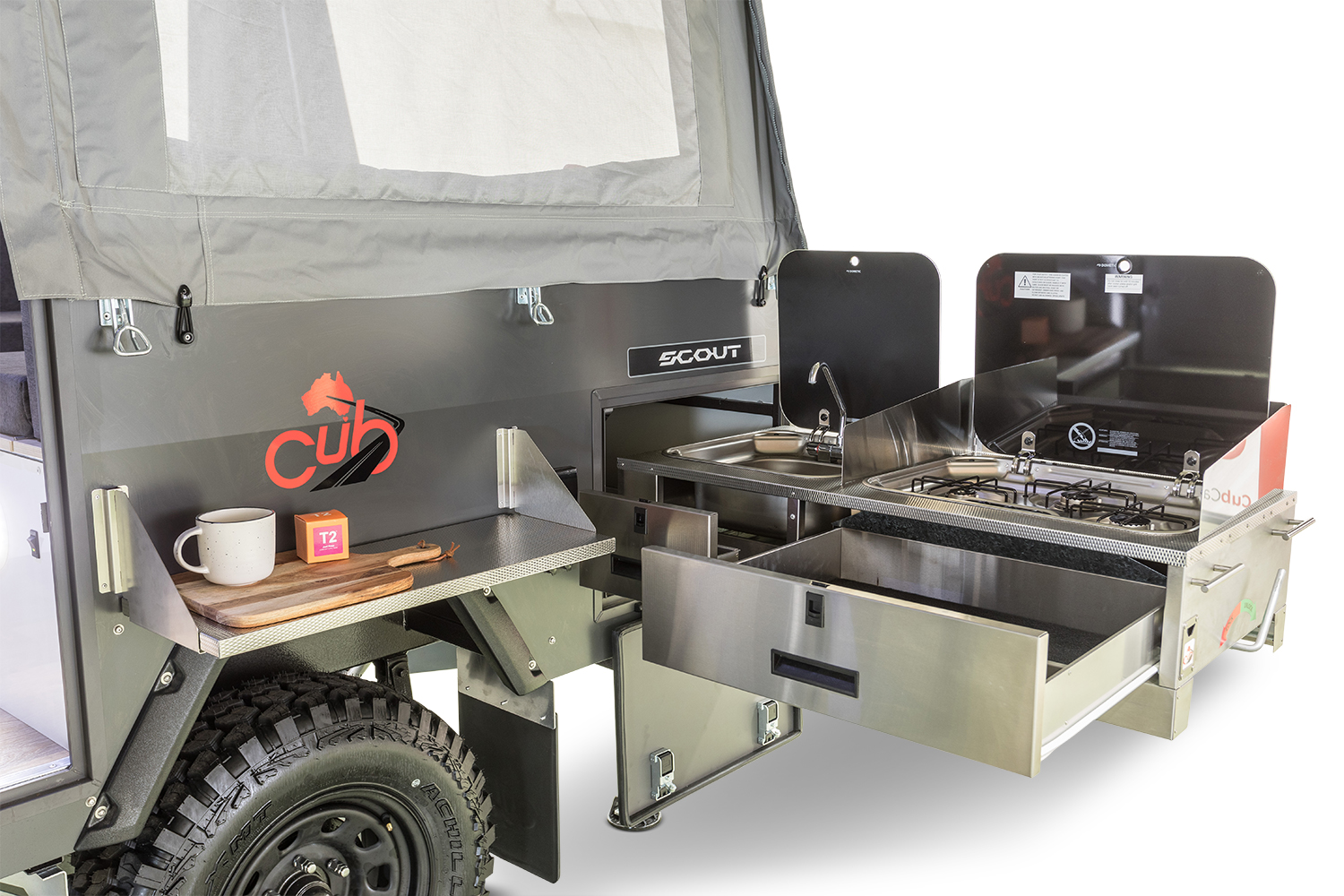

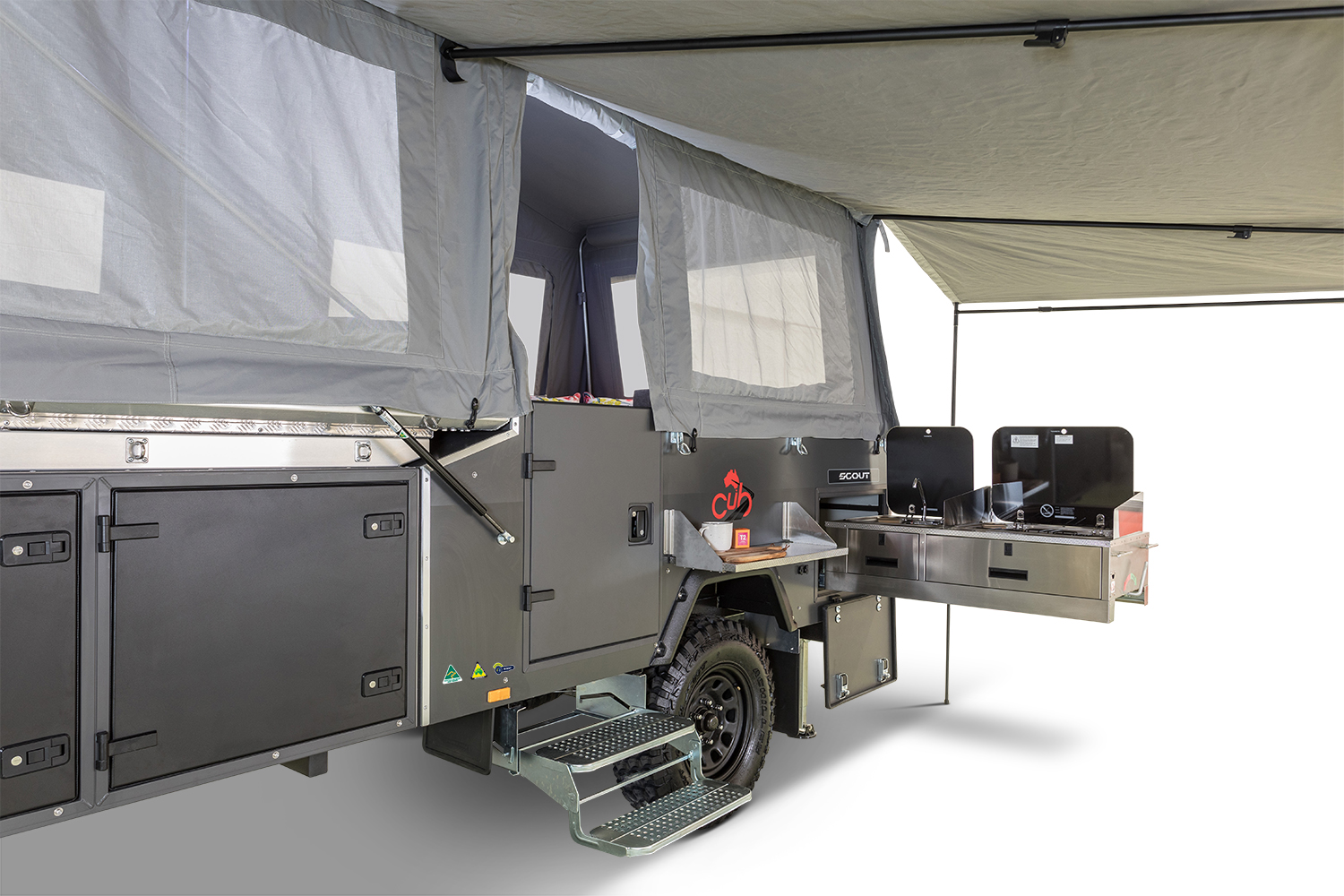

KITCHEN

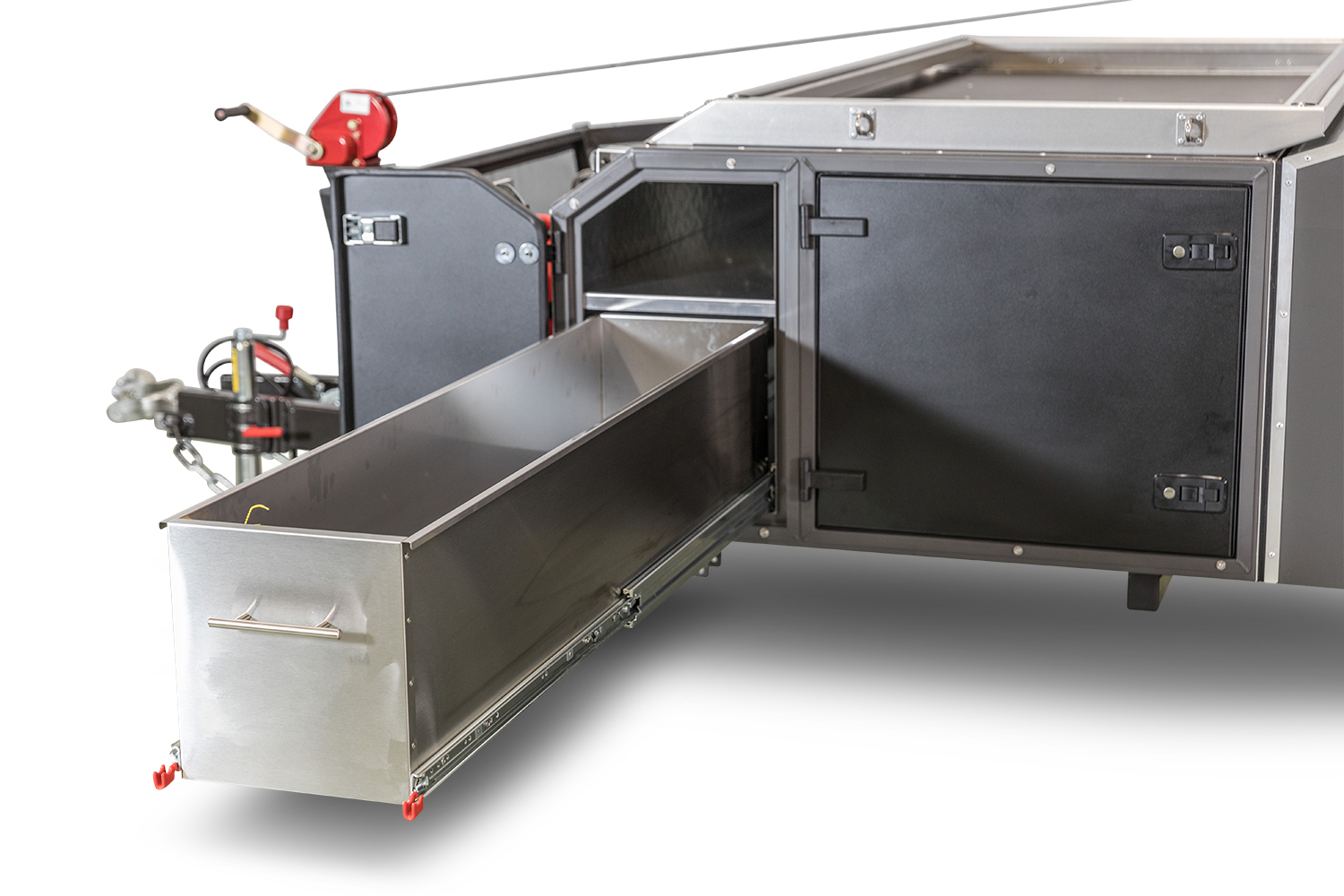

  • 1400mm Pantry: Standard
  • Drawers: 2
  • Ezy Clean Kitchen Top: Standard
  • Mix Tap: Standard
  • Smev Stainless Steel Stove & Sink: 3 Burner
  • 1400mm Pantry: Standard

OUTSIDE FITTINGS

  • Luggage Rack – Front Box: Standard
  • Slide Out Steps: Standard
  • Roof Tie Down Points: 6
  • Utility Bar – Suits Spare Wheel, Bike Carrier and Twin Jerry Can Bracket: Standard

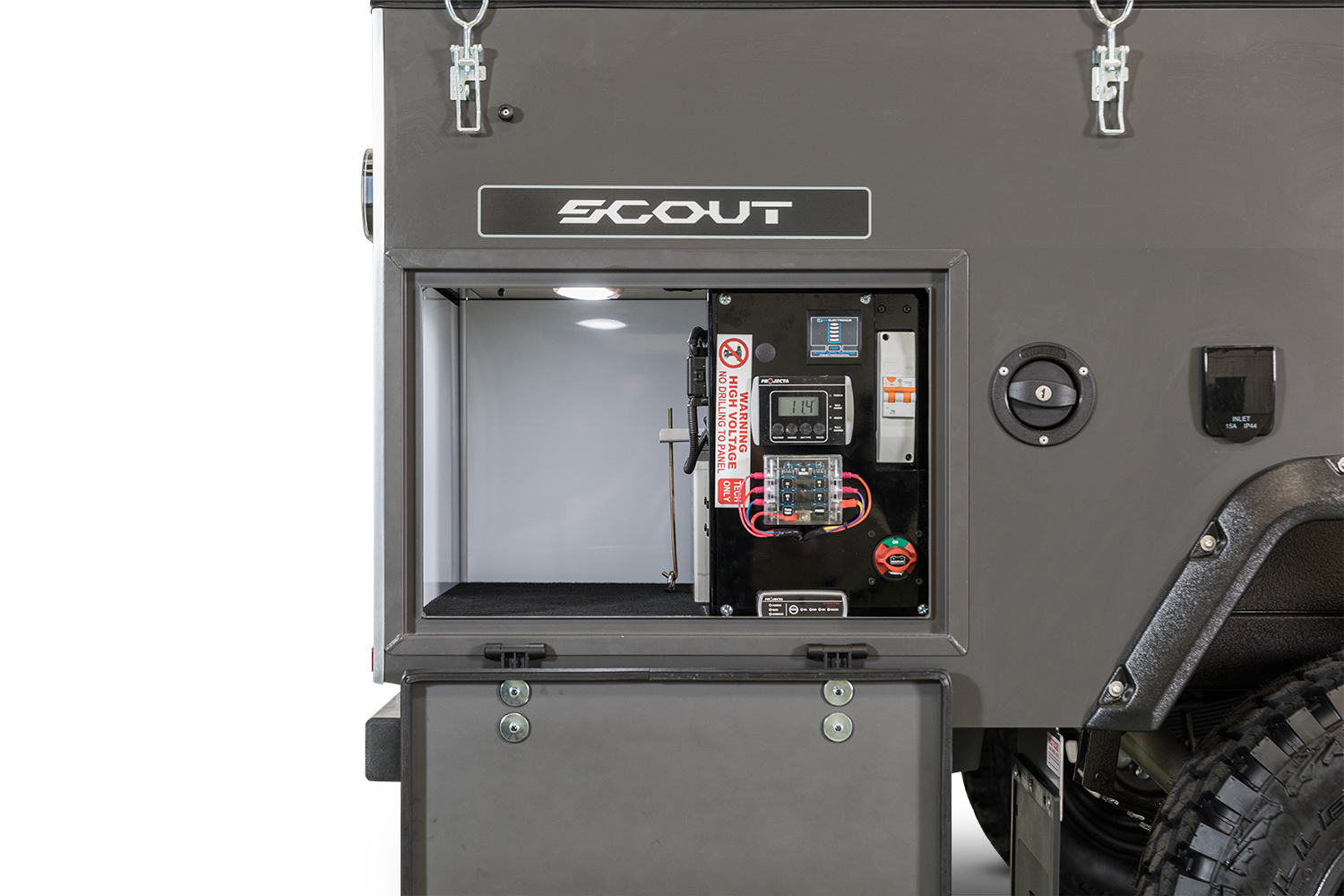

POWER & AIR

  • 100AH Battery: Standard
  • External Inlet 240V (15A): Standard
  • External Outlet 240V: Standard
  • Floor Lighting: Standard
  • Internal Double Outlet 240V: Standard
  • LED Door Light: Standard
  • LED Sensor Lights: 3
  • LED Strip Lights (Merit Plug) 1.2 Metre: Standard
  • Narva 12V Internal Outlet (1 x Merit, 1 x ACC): Standard
  • Narva 12V External Outlet (Merit): 2
  • 12V Master Isolation Switch: Standard
  • Projecta IDC25 (12V) Battery Charger: Standard
  • Solar Input (Anderson Plug) – Suits Unregulated Solar Panel: Standard

SUSPENSION & CHASSIS

  • AL-KO Wind Down Legs: 2
  • Australian Galvanised Steel Chassis: Standard
  • Rear Recovery Points (2400kg Rating): Standard
  • Shocks: Single

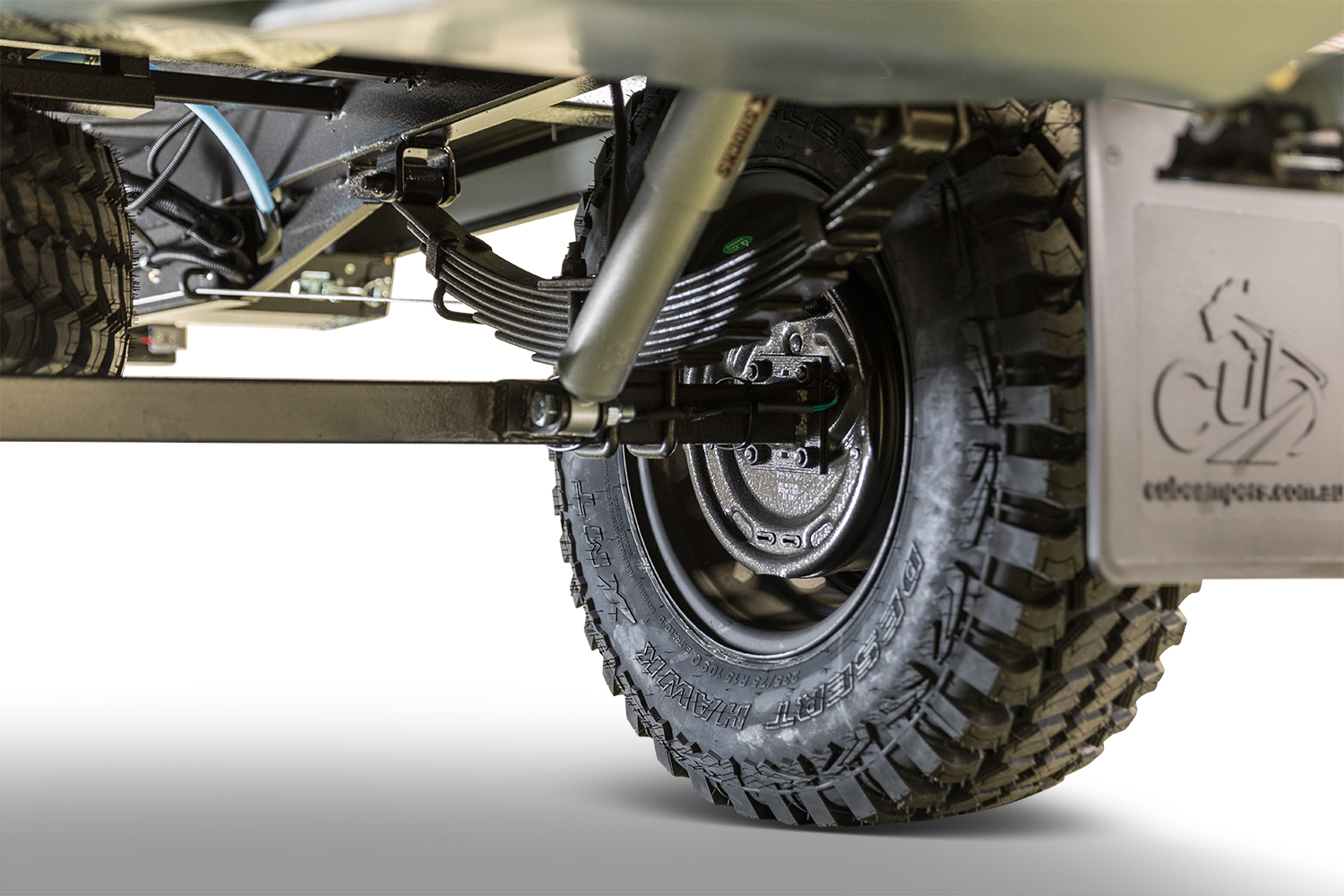

  • Suspension: AL-KO 8 Leaf Shackle

All model specification details are subject to change

‡ The tare and ball weights are a guide only and will change depending on drawbar layout and accessories fitted to your camper. Please discuss with a member of the Cub sales team prior to purchase. Each Cub Camper is weighed on completion of build and a precise written weigh bridge certificate is then provided.

Below are our most popular options which have been combined into Cub Travel Packs that feature added value for less outlay.



Alternatively if you only want one or two options these can be added individually.

Build your own custom CUB

CALL US TODAY: 03 8727 6100

Packages:

SCOUT PACK

  • 2nd 100 AMP Hour Battery (Fitted)
  • 2nd Water Tank (80L) Inc. 2nd Water Filler

POWER PACK

  • Projecta IC2510 240V Battery Charger
  • LED Bedside Stalk Lights x 2
  • Twin USB Ports x 2

POPULAR OPTIONS

  • 1/2 long wall canvas with door
  • 1/2 long wall canvas with window
  • 1/2 long wall mesh (kitchen)
  • 1/2 long wall mesh with door
  • Dinette Table
  • Driver’s Side Utilities
  • Pocket Spring Mattress Upgrade
  • Projecta IC2510 240V Smart Charger
  • Seat Cover Upgrade – Microfibre Leather
  • Side Shelf
  • Smarttek Hot Water & Shower Kit

ALL AVAILABLE OPTIONS

BRAKES & WHEELS

  • 16 Inch Alloy Wheel Upgrade
  • Disc Brake Option – Off Road 10 Inch

CANVAS

  • 1/2 Long Wall Canvas With Door
  • 1/2 Long Wall Canvas With Window
  • 1/2 Long Wall Mesh With Door
  • 1/2 Long Wall Mesh (Kitchen)
  • Bedside Curtains (per Window)
  • Bedside Plastic Windows incl. Curtain
  • Draught Skirt
  • Ezy Awning
  • Front (Drawbar) Wall Canvas (With Window)
  • Front (Drawbar) Wall Mesh
  • Mesh Doorway For Half Long Wall
  • Mesh Door On Tent
  • Privacy Curtain
  • Rear (Kitchen) Wall Canvas (With Window)
  • Rear (Kitchen) Wall Mesh
  • Thermal Blanket
  • Upgrade From Extended Ezy Awning To Deluxe Awning
  • Window Weather Shield Set (Front or Driver’s Side)

DRAWBAR

  • Cruisemaster D035 Coupling Upgrade
  • Gas Bottle with Holder (Additional)
  • Stonestopper Mud Flaps

INSIDE FITTINGS

  • Coleman Fold Up Table
  • Dinette Table
  • Innerspring Mattress Upgrade
  • Pillow Top Mattress Upgrade
  • Seat Cover Upgrade – Macrosuede

KITCHEN & GAS

  • Extra Gas Bayonet (PS Utilities Only)
  • Fold Out Shelf
  • Side Shelf (Forward & Double Fold Series)

OUTSIDE FITTINGS

  • Stabiliser Leg Set (Front)
  • Utility Rack Bike Bracket
  • Utility Rack Twin Jerry Can Bracket (Water Only)

POWER, LIGHT & AIR

  • 12V Fan, Bracket & Acc. Plug
  • 100AH Battery Additional
  • 100AH Battery – Lithium*
  • Battery Charger Upgrade – Lithium (DCDC & 240V)*
  • Bedside Light & Twin USB (Pair)
  • LED Kitchen Stalk Light
  • LED Strip Light 3.7m Awning Light (Merit Plug)
  • Projecta IC2510 240V Smart Charger
  • TV Coaxial Outlet

WATER

  • 80 Litre Water Tank (Additional)
  • Fridge Box DS Utilities (Gas & Water)
  • Hand Pump on Drawbar

TRAVEL OPTION PACKS

  • Power Pack (Incl. 240V Charger)
  • Scout Pack

Build your own custom CUB

CALL US TODAY: 03 8727 6100
